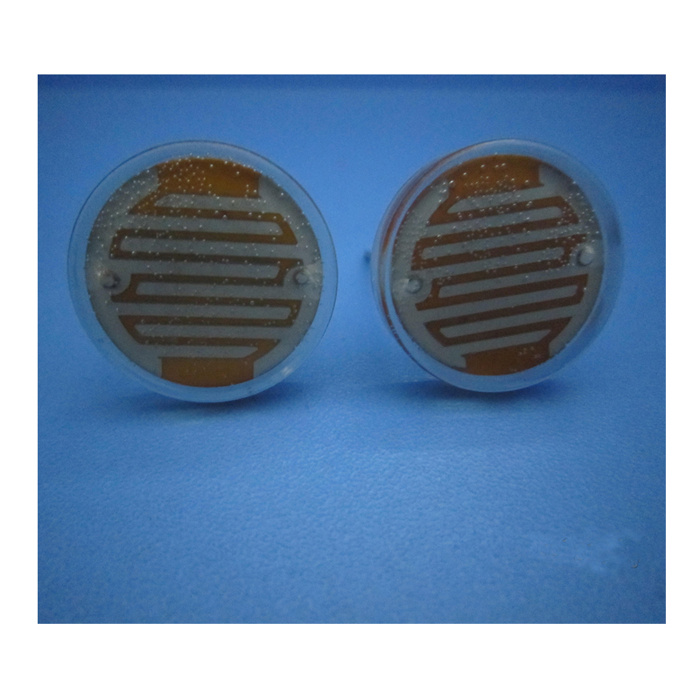

Good Reliability 20mm Diamater Photocell Sensor for Photoelectric Control

Name: Good Reliability 20mm Diamater Photocell Sensor for Photoelectric Control
Brand: all-electronics-online.com
SKU: 793301565
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Good Reliability 20mm Diamater Photocell Sensor for Photoelectric Control
Specification

Item	Photoresistor Sensor
Model	MJ20516
Diameter	20mm
Resistance	0.01Ohm-100K Ohm
Resistance Tolerance	-/+5%
Max.Voltage	500VDC
Max. Power Consurrption	500 MW
Operating Temperature	-30-+70 degree
Spec Trum Peak Value	560 nm
Thickless	2mm

Introduction
Photoresistor is a resistor which made of semi-conductor material, and the conductance changes with luminance variation. The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
There are 3 series of product, the expory resin seal, the metal shell seal and the plexinglass seal with Ф3, Ф4, Ф5, Ф6.5, Ф7, Ф11, Ф12, Ф20, Ф25 and other 13 kinds of specifications of more than 100 types of photoresistor products.

Features
1.Coated with epoxy
2.Good Reliability
3.High Sensitivity
4.Small Volume
5.Fast Response
6.Good Spectrum Characteristic
7. Low cost
8. eco-friendly

Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
-Annunciator

Technical parameter for 5mm photocell sensor seriers

Diameter	Modle	Max Voltage (VDC)	Max Power (mw)	Environmental Temperature (degree)	Spectrum Peak Value (nm)	Light Resistance 10Lux(k Ohm)	Dark Resistance (Mohm)	r 100/10
φ20 series	MJ20516	500	500	-30~+70°C	560	5-10	1	0.6
	MJ20517	500	500	-30~+70°C	560	10-20	2	0.6
	MJ20528	500	500	-30~+70°C	560	20-30	3	0.7
	MJ20537	500	500	-30~+70°C	560	30-50	5	0.8
	MJ20539	500	500	-30~+70°C	560	50-100	8	0.8

More details could contact us:)

Prod Model:	MJ20516
Item:	Photoresistor Sensor
Model:	Mj20516
Diameter:	20mm
Resistance Value:	0.01ohm-100k Ohm
Resistance Tolerance:	-/+5%
Max.Voltage:	500VDC
Max. Power Consurrption:	500 MW
Operating Temperature:	-30-+70 Degree
Spec Trum Peak Value:	560 Nm
Thickless:	2mm
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Photoresistor
Function For Resistance:	CDS Photoresistor
Application:	Optical Control Field
Brand:	Hw

Shenzhen Haiwang Sensor Co., Ltd. Established in 2004. We are speciliazed in developing, manufacturing and export of human detecting components, infrared/microwave modules and other sensitive components for more than 10 years. Standar-dized management, strict quality control, professional team, the operating principle of good faith, dedicated professionalism and full range of professional services. All of those aspects let Haiwang win good reputation among the customers. Also more and more customers come to support and trust us. This makes Haiwang continue to grow and develope.

HaiWang is dedicated to manufacture sensor module such as PIR module and microwave module. Also we design the outdoor, security and some novelty items. Such as nap zapper, card magnifier, personal alarms and magnify card etc. Our business area covers United States, Europe, Latin America, Africa, Southeast Asia and around the world. Quality is our culture. Welcome to ask for inquiry, we will be at service within 24hours. Hopefully to be your trustworthy supplier in China. With us, your money in safe and your business in safe. We do accept paypal payment way.

Haiwang uphold to "Innovation is the source of development, quanlity is the basis of business"and"Good quality, Reasonable prices, Courteous service, Customer satisfaction and foreign customers and collusion development.

Our Version: World know our creation, new intelligence better life

Our Value: Superior quanlity builds the foundation, efficient service win customer's credit

Our Faith: Honesty, superior quality, innovation and win-win stategy.

Our Concept: Human assets, customer oriented, customer first, satisfaction is our standard.
