High Accuracy Class 0.1 Three-Phase Current Transformer

Name: High Accuracy Class 0.1 Three-Phase Current Transformer
Brand: all-electronics-online.com
SKU: 818372475
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	US $ 8-10/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-TP0001
Phase:	Three-Phase
Safety Standard:	IEC60044-1
Frequency:	50-60Hz
Thermal Class:	Class B
Flame Retartdant:	UL94V-0
Packaging:	Carton
Production Process:	Encapsulaiton
Material:	Amorphous Core
Application:	Electricity Meter

Product Description

Three-phase current transformer

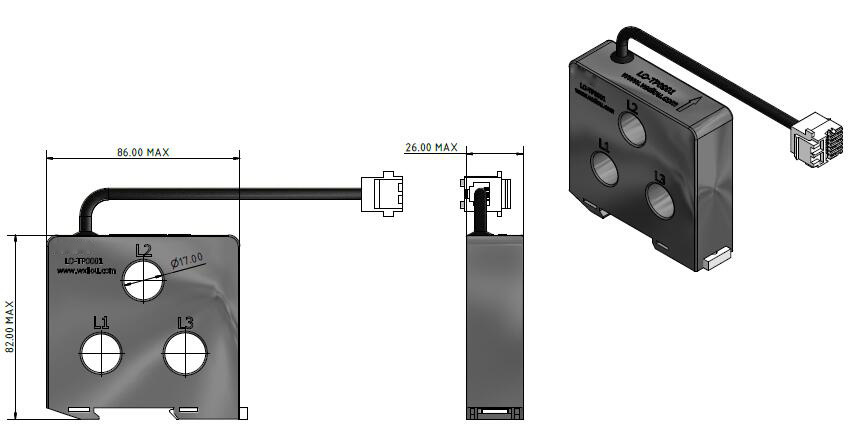

Mechanical Specificaitons:

Description
¨   50/60 Hz,Three- Phase,AC Current Sensor
¨   Dynamic Range from 10A to 180Amps
¨   Meets IEC62053-21 class 1
¨   Meets IEC 60044-1 class 0.1 Phase error < 5'
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 4KV for 60s
¨ Max. operation voltage: AC660V
Application
• Electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA		Ohms	(g)	(Hz)
LO-TP0001	1:2000	10	5	180	90	0.1	20		50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

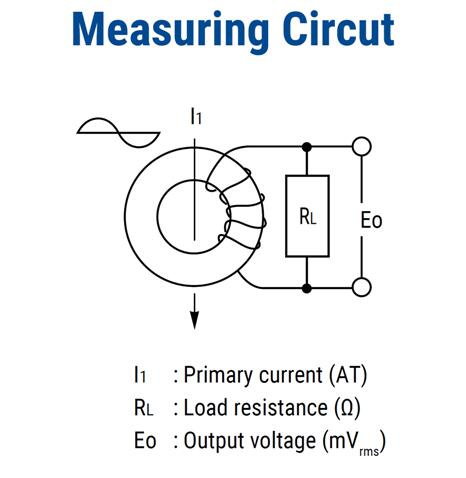

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation R_L=Vout*Nsec/Ipri

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 100ºC
LEADS INFORMATION
UL2649 24AWG BLACK	150CM±10MM
Terminal block	RJ11 terminal

Quality Standard and Custom Design Products
