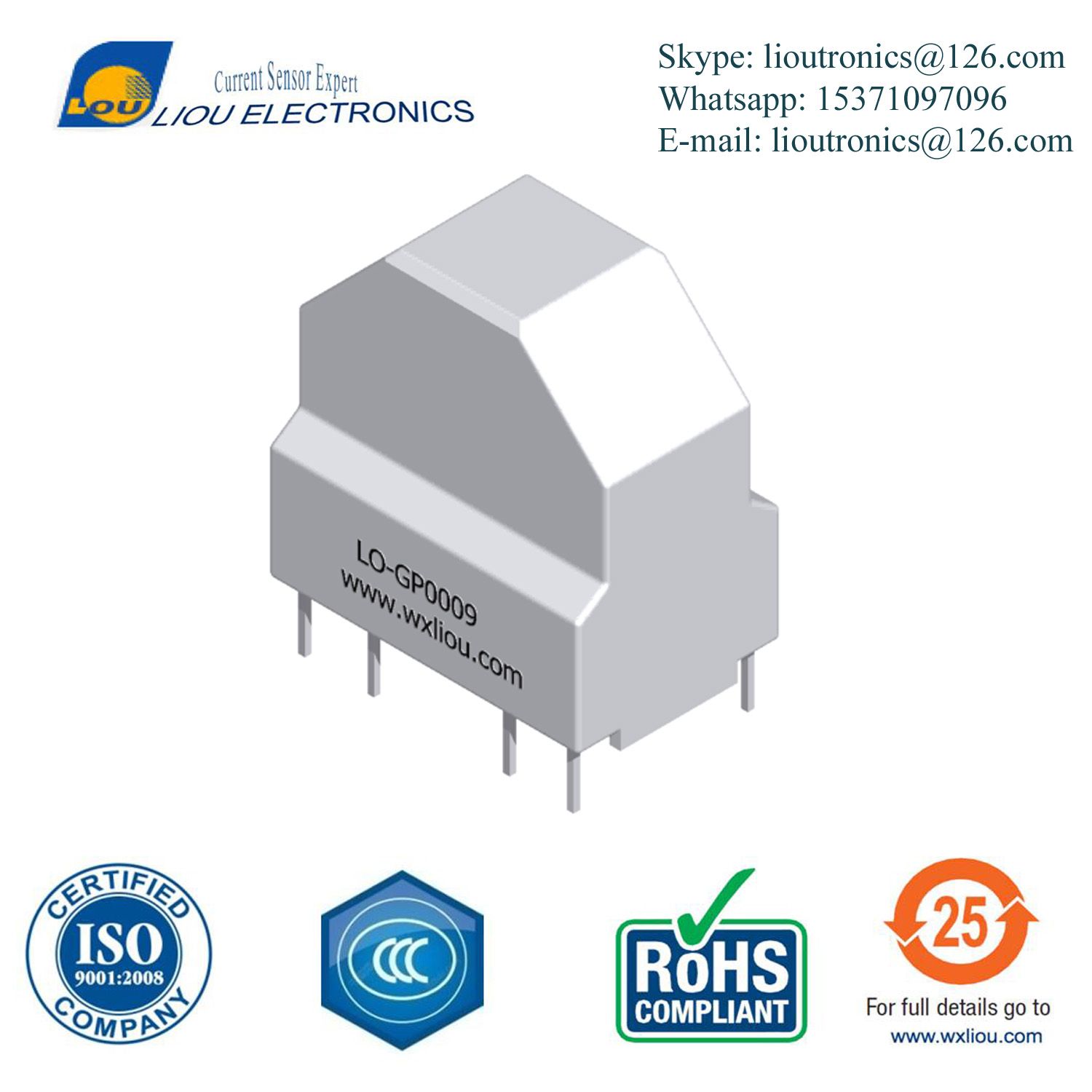

High Accuracy Transformer 6: 1500 4A Input

Name: High Accuracy Transformer 6: 1500 4A Input
Brand: all-electronics-online.com
SKU: 822702255
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 1-1.3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

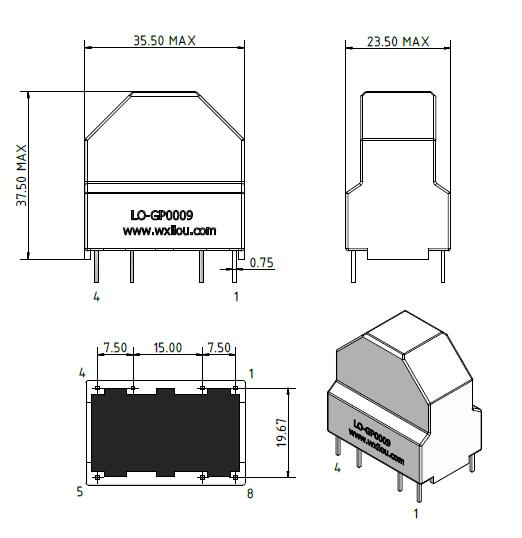

Mechanical specificaitons:

Description
¨   50/60 Hz,Single Phase,AC Current Sensor
¨   Dynamic Range from 4 to 8Amps
¨   Accuracy class 5
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 3KV for 60s

Application
• Electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	R_S	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-GP0009	6:1500	4	16	8	32		5	≤100	50	50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

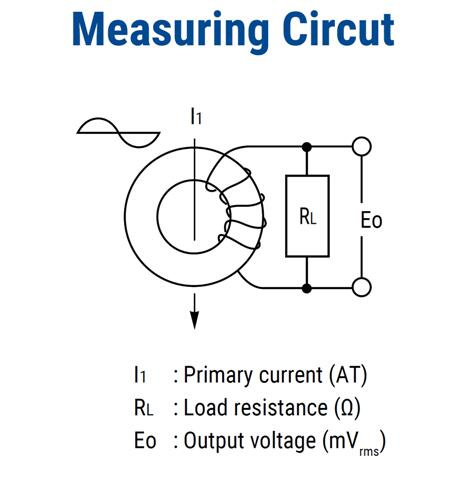

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation R_L=Vout*Nsec/Ipri

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 100ºC
SOLDERING INFORMATION
Peak wave solder temperature	300ºC for 10Seconds
Pin finish	Tin

Prod Model:	lo-gp0009
Phase:	Single
Frequency:	50-60Hz
Linearity:	5%
Packaging:	Carton
Thermal Class:	Class B
Flame Retartant:	UL94V-0
Safety Standard:	IEC60044-1
Applicaiton:	Electricity Meter
Production Process:	Encapsulaiton
Material:	Silicon Steel
Application:	Electricity Meter
