High Current up to 6300A High Accuracy Center Through Current Sensor 1A or 5A Output CT

Name: High Current up to 6300A High Accuracy Center Through Current Sensor 1A or 5A Output CT
Brand: all-electronics-online.com
SKU: 818436385
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 35-45/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-MCIII
Safety Standard:	IEC60044-1
Thermal Insulation:	Class B
Frequency:	50-60Hz
Phase:	Single
Case Material:	PC
Flame Retartant:	UL94V-0
Packaging:	Carton
Production Process:	Moduled Case
Material:	Silicon Steel
Application:	Industrial Control

Product Description

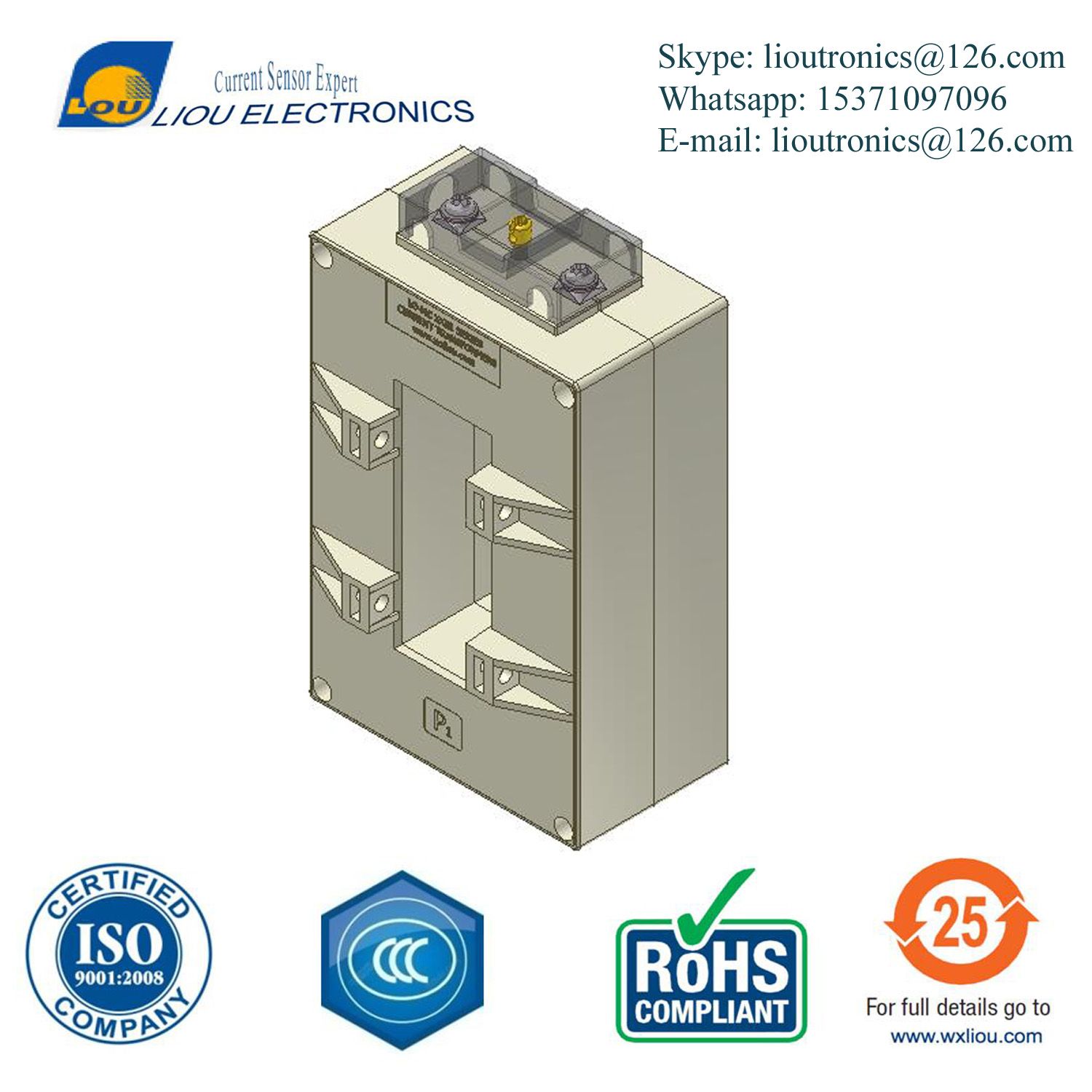

Center through current transformers
Description
The range of LiOu Instruments MC-III current transformers offers wide system current ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet EN60044 the range benefits include ratio rating from 100A to 6300A, accuracy up to Class 0.5, integral terminal cover for safety and multiple mounting options.

Application
• Data logging       •   Recording   •   Power monitoring
•   Energy management •   Alternative energy monitoring
•   Cost allocation

Features

• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 polycarbonate
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
                    ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

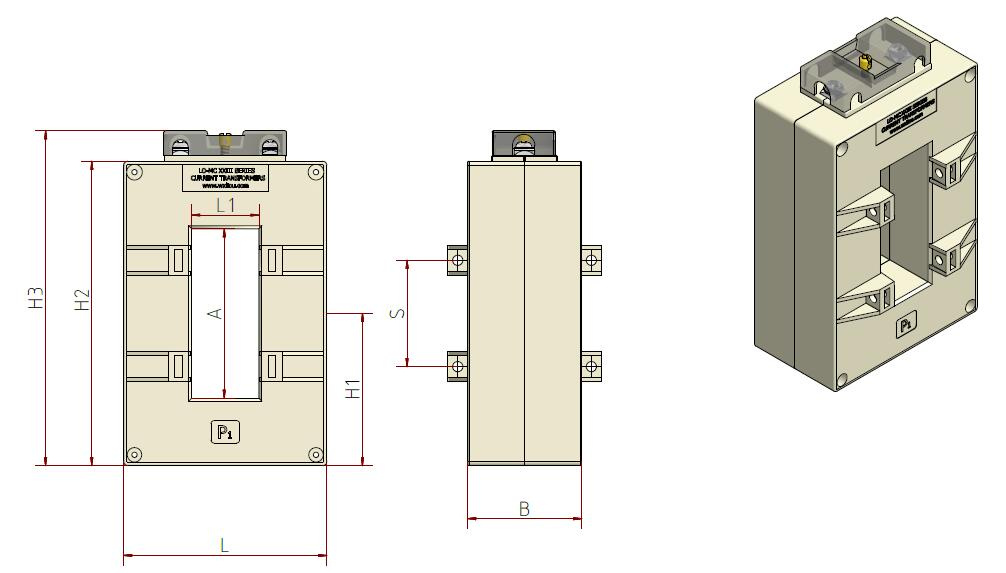

Mechanical Specificaitons

P/N	A	L1	L	B	H3	H2	H1	S
LO-MC50III	52	16	75	56.4	120	105	52.5	-
LO-MC60III	62	33	100	56	140	125	62.5	-
LO-MC80III	83	33	100	56	164	149	74.5	51
LO-MC100III	103	33	105	56	190	175	87.5	65
LO-MC120III	123	53	125	56	215	200	100	77
LO-MC130III	132	57	130	54	220	205	102.5	50/79

Electric specificaiton

P/N	Rated ratio	Rated power (S_n) at different Accuracy Class					Short-time thermal(I_th)	Primary Turns	Bus bar Dim.
	Rated ratio	Class 1	Class0.5	Class 10P5	Class 10P10	Class 10P15	Short-time thermal(I_th)	Primary Turns	Bus bar Dim.
	A/A	VA	VA	VA	VA	VA	A	T	(mm/pcs)
LO-50III-5-1	100-200/5	2.5	2.5	-	-	-	60xIp	1	50*10/-1
LO-50III-5-2	200-300/5	5	5	2.5	-	-		1
LO-50III-5-3	400-500/5	15	10	5	2.5	-		1
LO-60III-5-1	200-400/5		5	5	2.5	-		1	60*10/1-2
LO-60III-5-2	500-800/5		10	10	5	2.5		1
LO-60III-5-3	1000-1250/5		20	15	10	5		1
LO-60III-5-4	1500-2000/5		20	20	10	5		1
LO-80III-5-1	500-800/5		10	10	5	2.5		1	80*10/1-2
LO-80III-5-2	1000-1250/5		20	15	10	5		1
LO-80III-5-3	1500-2000/5		20	20	10	5		1
LO-80III-5-4	2500-3000/5		20	30	15	10		1
LO-100III-5-1	600-800/5		10	10	5	2.5		1	100*10/1-2
LO-100III-5-2	1000-1250/5		20	15	10	5		1
LO-100III-5-3	1500-2000/5		20	20	10	5		1
LO-100III-5-4	2500-4000/5		20	30	15	10		1
LO-120III-5-1	600-800/5		10	10	5	2.5		1	120*10/1-3
LO-120III-5-2	1000-1250/5		20	15	10	5		1
LO-120III-5-3	1500-2000/5		20	20	10	5		1
LO-120III-5-4	2500-5000/5		20	30	15	10		1
LO-130III-5-1	1000-1250/5		20	15	10	5		1	13010/1-3 12510/1-3
LO-130III-5-2	1500-2000/5		20	20	10	5		1
LO-130III-5-3	2500-6300/5		20	30	15	10		1
Secondary current 1A
LO-50III-1-1	100-200/1	2.5	2.5	-	-	-	60xIp	1	50*10/1
LO-50III-1-2	200-300/1	5	5	2.5	-	-		1
LO-50III-1-3	400-500/1	15	10	5	2.5	-		1
LO-60III-1-1	200-400/1		5	5	2.5	-		1	60*10/1-2
LO-60III-1-2	500-800/1		10	10	5	2.5		1
LO-60III-1-3	1000-1250/1		20	15	10	5		1
LO-60III-1-4	1500/2000/1		20	20	10	5		1
LO-80III-1-1	500-800/1		10	10	5	2.5		1	80*10/1-2
LO-80III-1-2	1000/1250/1		20	15	10	5		1
LO-80III-1-3	1500-2000/1		20	20	10	5		1
LO-80III-1-4	2500-3000/1		20	30	15	10		1
LO-100III-1-1	600-800/1		10	10	5	2.5		1	100*10/1-2
LO-100III-1-2	1000-1250/1		20	15	10	5		1
LO-100III-1-3	1500-2000/1		20	20	10	5		1
LO-100III-1-4	2500-4000/1		20	30	15	10		1
LO-120III-1-1	600-800/1		10	10	5	2.5		1	120*10/1-3
LO-120III-1-2	1000-1250/1		20	15	10	5		1
LO-120III-1-3	1500-2000/1		20	20	10	5		1
LO-120III-1-4	2500-5000/1		20	30	15	10		1
LO-130III-1-1	1000-1250/1		20	15	10	5		1	13010/1-3 12510/1-3
LO-130III-1-2	1500-2000/1		20	20	10	5		1
LO-130III-1-3	2500-6300/1		20	30	15	10		1

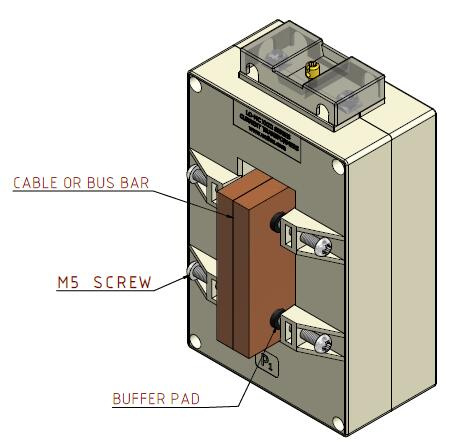

Installation

Quality Standard and Custom Design Products

LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.

Designed, Manufactured and Distributed From One Location

Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.

Superior Goals and Higher Expectations

It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.

Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.

Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:

1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.

2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.

3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.

4. Adhering to safety standards.

5. Development of all employees through continued training.

We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
