| Prod Model: |
HW-M10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
6-24 V |
| Output Voltage: |
5V |
| Current: |
<5mA |
| Angle: |
180*360 |
| Frequency: |
10.525GHz |
| Delay Time: |
30s |
| Color: |
Green |
| Warranty: |
2 Years |
| Weight: |
0.02g |
| Distance: |
10m |
| Material: |
Fr4 |
Product Description

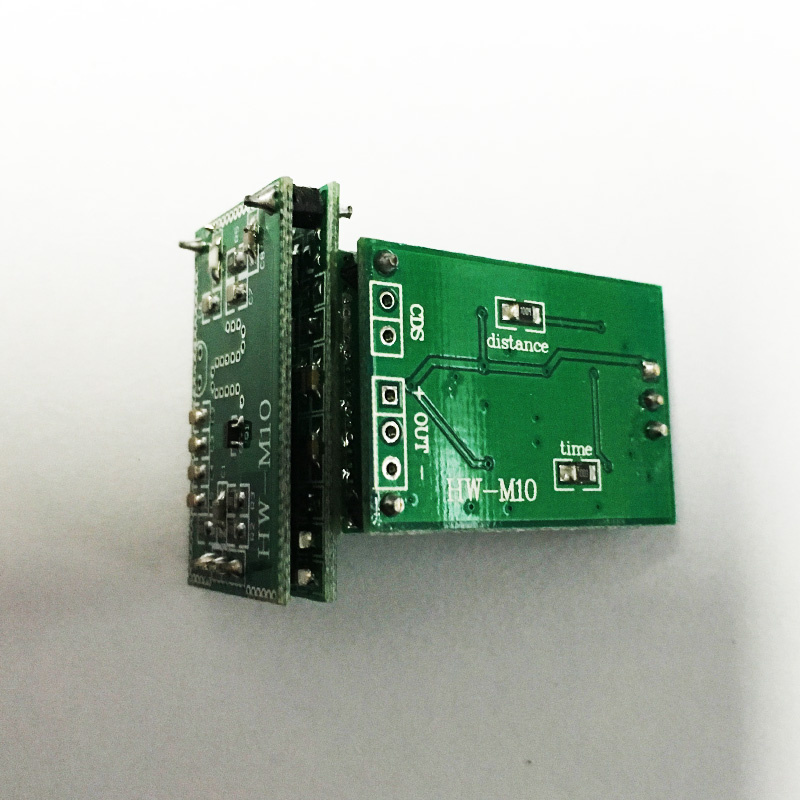

High Frequency 10.525GHz Microwave Module for Auto-control System
Working Principle
The HW-M10 Microwave Module is adopted the planar antennas to transmit and receive the signals. The moving objects are targets like people and vehicles. After inducting the targets, the HW-M09 Microwave Module would output the voltage signals and turn into active sensors. The induction angle is 180 *360 degree on the front of ball.
Where to use
The HW- M10 Microwave Module is widely used in security guard monitory video, LED illumination, power switch, garage, corridor, road, automatic door control system and other places.
Feature
1. No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2. Wide coverage without blind zone because of its field pattern emission.
3. The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4. The signals can go through glass, door, wall and other obstacles.
5. Professional design of the microwave with flat antenna, low-power , ROSH and high product consistency.
Dimension
| Input Voltage | 6-24V |
| Output Voltage | 5V |
| Current | 5mA |
| Effective Distance | 10m |
| Size | 20*30*6mm |
| Weight | 0.02g |
| Angle | 180*360 |
All the dimensions above can be customized.
Warm note
1. Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2. Avoid being installed in the rain, to prevent damage or affect the lifetime.
3. Better install far away from the place of the magnetic field or the conductor to avoid wrong
actions.
