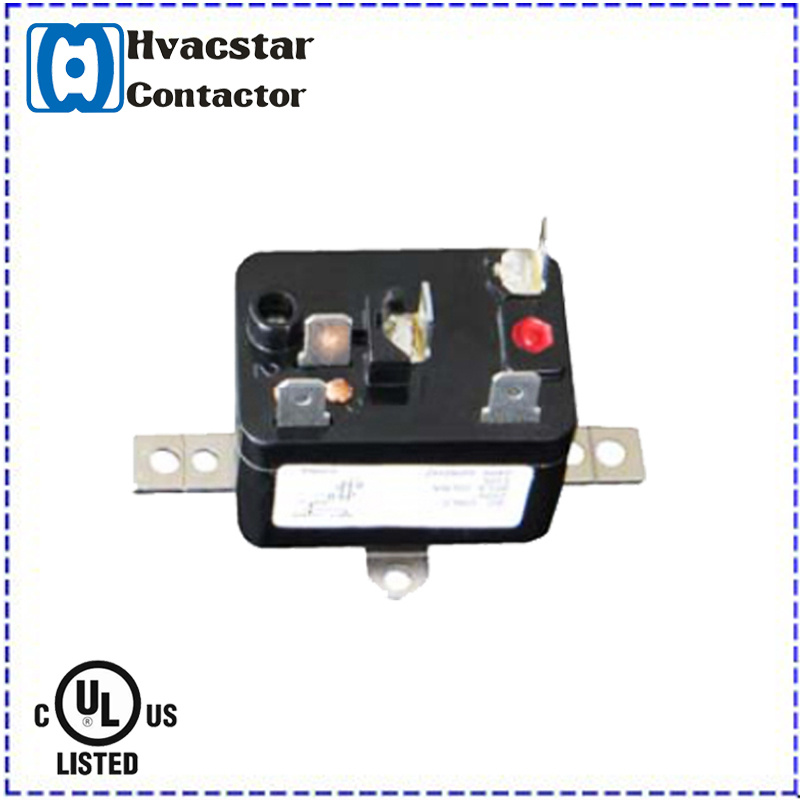

| Prod Model: |
JPR291-30A-24V |
| Color: |
Gray |
| Other Services: |
ODM OEM |
| Delivery Time: |
30 Days After Deposit |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Life Time(Mechanical): |
1 Million Times |
Product Description
About Us:
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors (including DP Contactors, LC1 series contactors , Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring themost innovative and highest quality products available to our customers.
PRODUCT FEATURES:
1. 16A switching capability
2. 2.5kV dielectric strength(between coil and contacts)
3. Panel mount types available
4. Environmental friendly product(RoHS COMPLIANT)
5. Outline Dimensions: 47.0×32.0×28.5mm
Applications:
1.Air conditioners
2.Heat pumps
3.Water heaters
4.Other locations where a local disconnect is required
Specifications:
| Amps Resistive | 16 |
| Coil Voltage | 24 |
| FLA/LRA at 250 Volts | 8/25 |
| Switch Type | SPST-NO |
Replaces:
| White-Rodgers | 90-290 |
| RBM | 90-290Q |
| Mars | 90290 |
CONTACT DATA:
| Contact arrangement: | 1A, 1B, 1C |
| Contact resistance: | 50 max.(at 1A 24VDC) |
| Contact Material | Silver alloy |
| Contact rating: (Res. Load) | Form A: 16A 250VAC, resistive load |
| Form B: 8A 250VAC, general load |
| Form C: 16A 250VAC, resistive load |
| Max. Switching Voltage: | 250VAC |
| Max. Switching Current: | 16A |
| Max. Switching Power: | 4000VAC |
| Mechanical endurance: | 1×106OPS |
Electrical endurance:
| Form A: SPST-NO 1×10 5OPS(16A 250VAC, Resistive load, at 65 ºC 1s on 9s off) |
| Form B: SPST-NC 3×10 4OPS(8A 250VAC, General use, at 40 ºC 1s on 9s off) |
| Form C: SPDT-NO+NC 1×10 5OPS(16A 250VAC, Resistive load, at 65 ºC 1s on 9s off) |
FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
