High Precision Injection Moulding Machine Linear Position Sensor

Name: High Precision Injection Moulding Machine Linear Position Sensor
Brand: all-electronics-online.com
SKU: 820744195
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	US $ 99-119/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KPZ Mini bar type line sensor
Working Stroke:	10-100mm
Feature:	High Resolution, High Linear
Usage:	Injection Moulding Machine Sensor
Repeatability:	0.01mm
Material:	Aluminum Alloy

Product Description

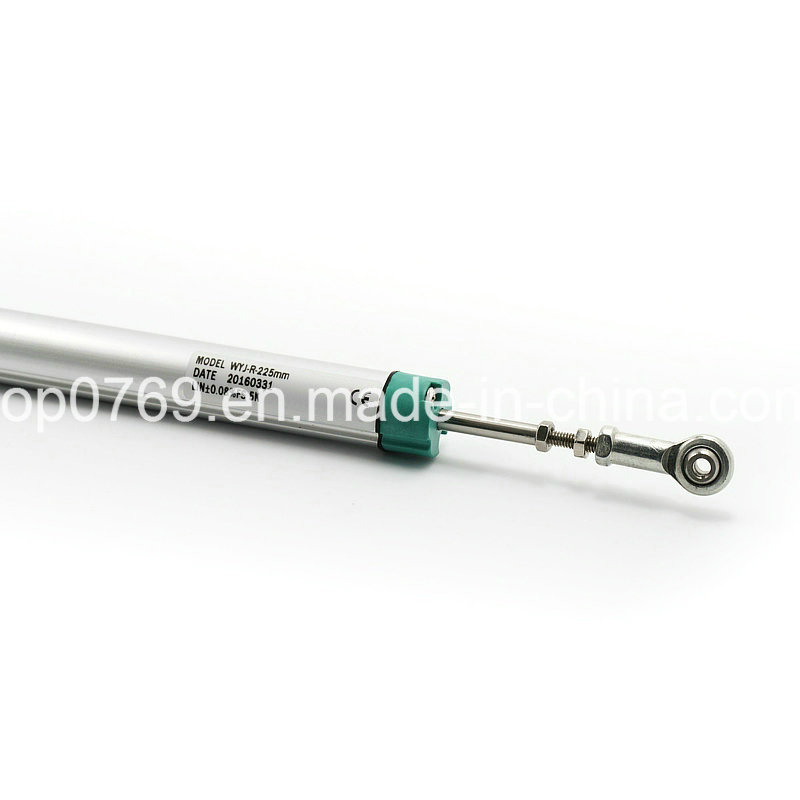

High Precision Injection Moulding Machine Linear Position Sensor

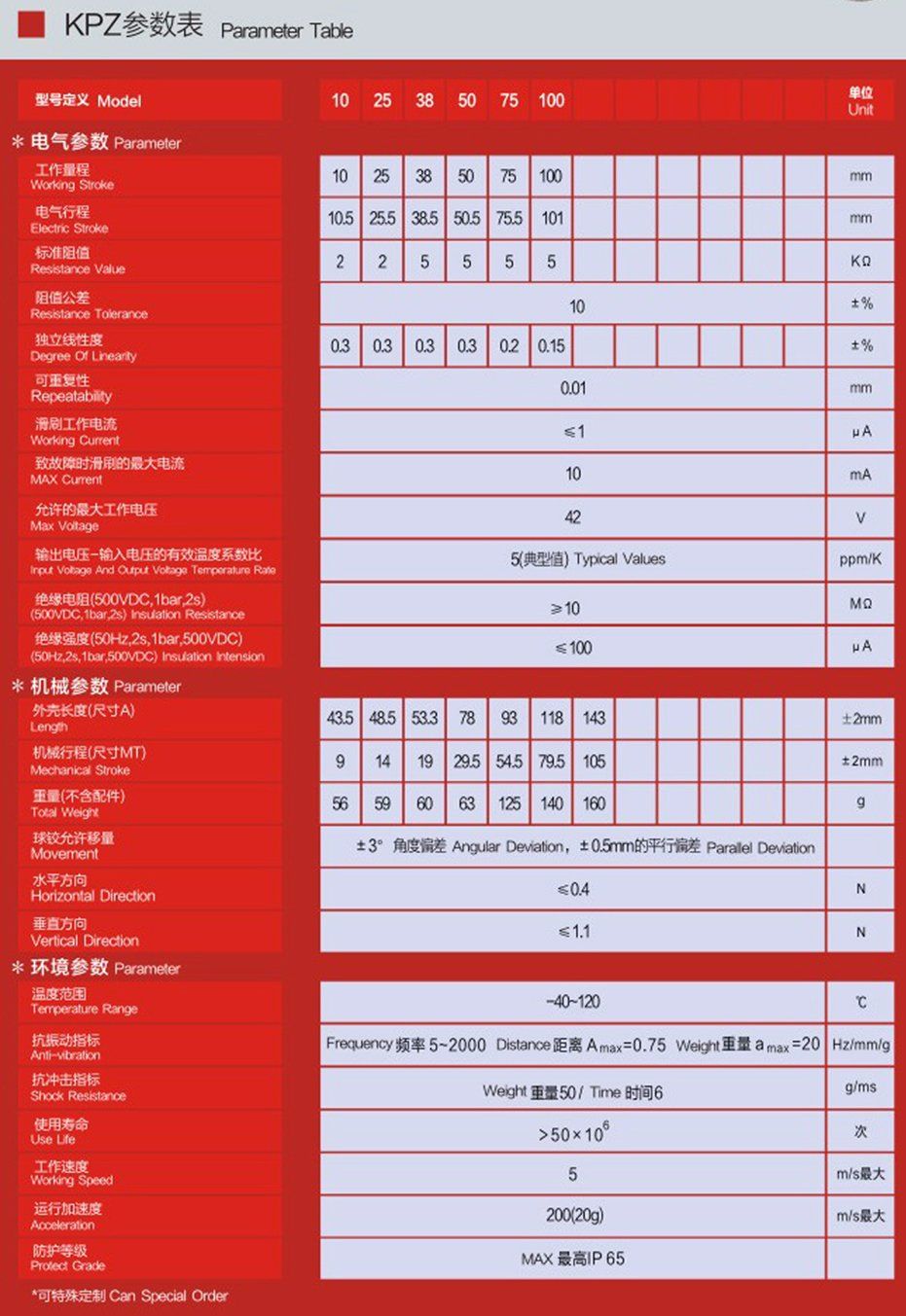

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	10-100	-40~120	≤0.4	≤1.1

Product feature:

Linear excellent
Resolution rate is higher than 0.01mm
High speed
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
Package:

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.
