High Quality Single Phase Contactor AC Motor Contactor SA-2 P-40A-120V
Product Discription:
USR, CNR - Definite Purpose Contactors, SA Series Defined Purpose AC contactors. SA, may be followed by 1.5P, 2P, 3P or 4P, followed by 20A, 25A, 30A, 40A, 50A, 60A, 75A or 90A, followed by 24V, 120V, 208/240V, 277V, 380V or 480V
GENERAL:
These devices are open component magnetically operated definite purpose contactors. They are used where the suitability has been determined by Underwriters Laboratories Inc.
RATING:
Models SA-1.5P, SA-2P are rated 600 VAC, single-phase. Models SA-3P, SA-4P are rated 600VAC, three-phase, except models rated 300 LRA and 360 LRA are rated 480VAC max. See table for FLA/LRA/Resistive or Resistance air heating ratings. All devices are rated "Break All Lines."
| MODEL | FLA(A) | LRA(A) | LRA(A) | LRA(A) | LRA(A) | Resistive or Resistance air heating(*) |
| | | 480 V ac | 600 V ac | 277 V ac | 240 V ac | 277vac |
| SA-1.5P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| SA-2P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-3P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-4P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
Short Circuit Rating: SA-1.5P, 2P, 3P, 4P - 5,000A @ 277 V, 480 V, 600 V
Company Introduction:

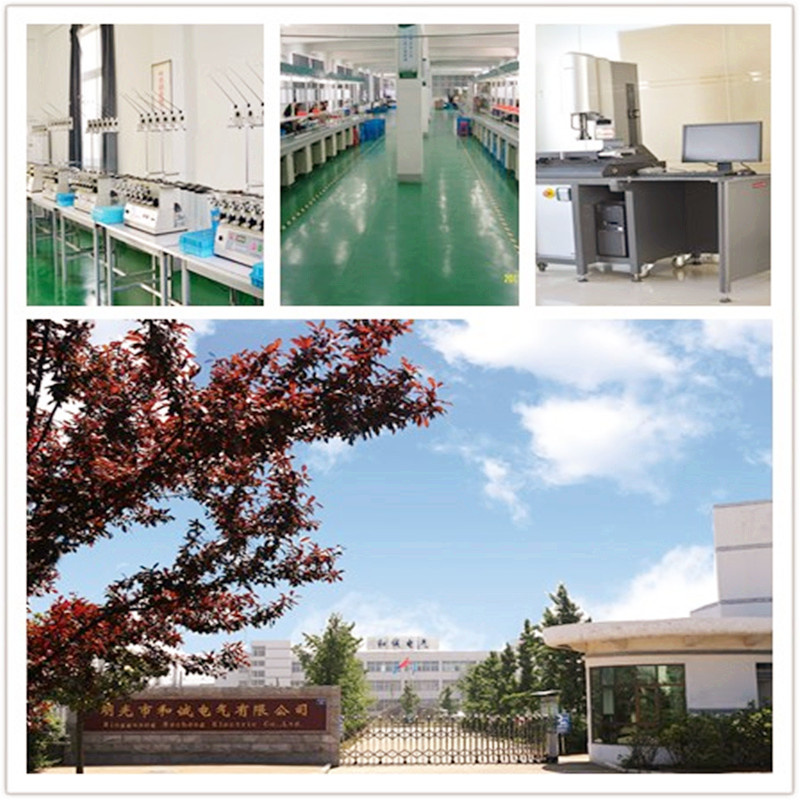

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.
