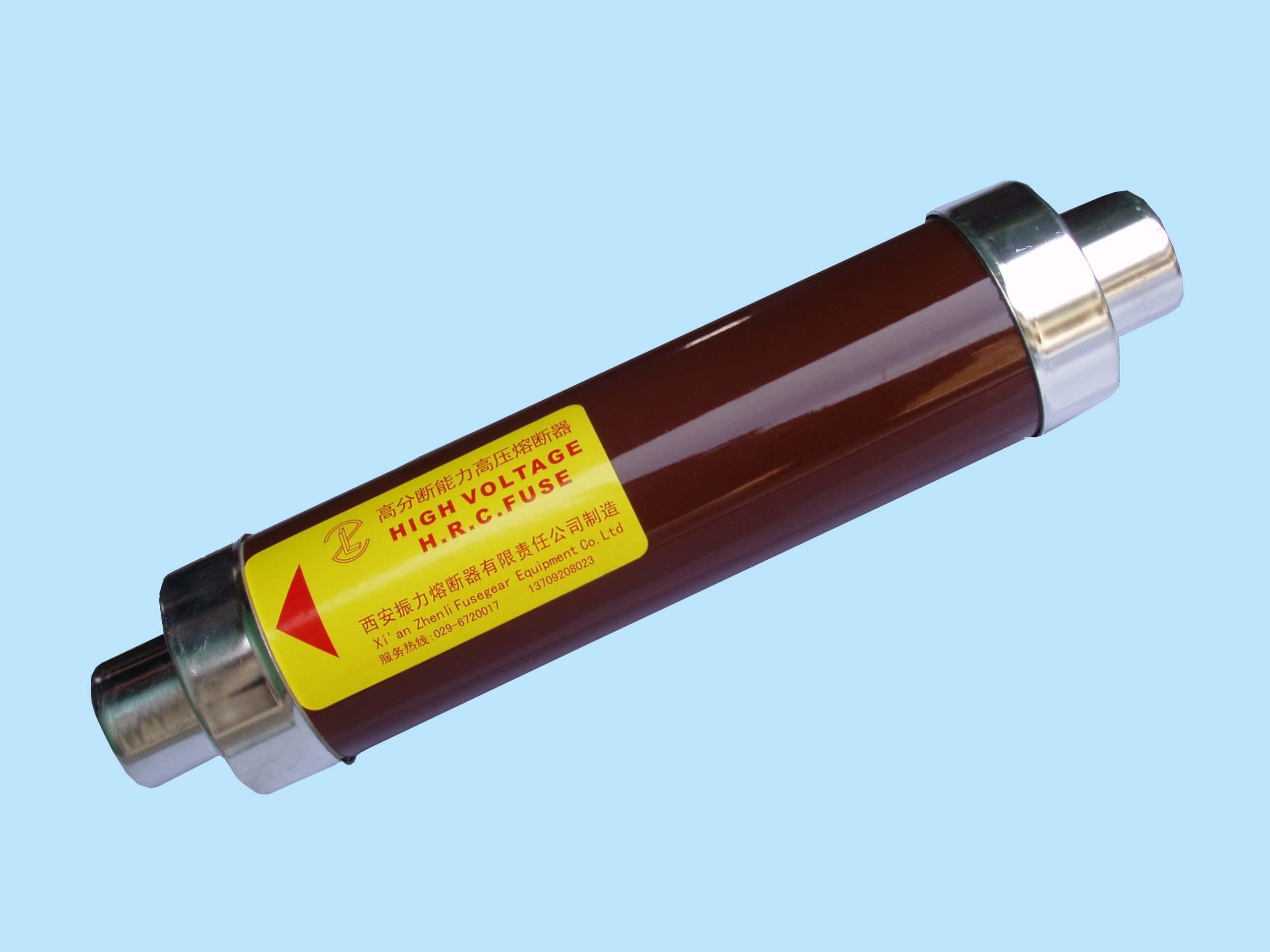

High-Voltage Current Limiting Fuse for Transformer Protection
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |

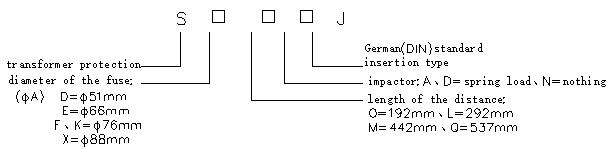

This product applies to the indoor AC 50 ~ 60Hz system with the rated voltage of 3.6~40.5kV, and may be used along with other switching devices (such as load switch, vacuum contactor, etc.) as short-circuit and overload protection element for the power transformer and other power equipment. The product is also essential for the high-voltage switchgear, ring main unit, high/low-voltage pre-installed substation. ModelGB model:XRNT3A-/-50Overseas equivalent model:

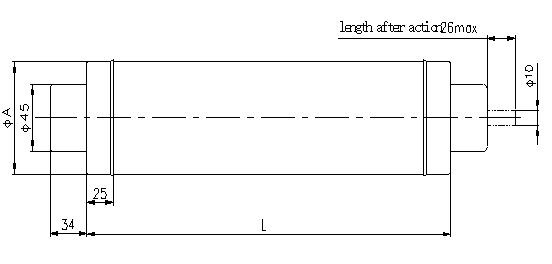

Outline dimensions
Fig.1 XRNT3A plug-in fuse link Basic parameters | Product Model | Equivalent Model | Rated Voltage
(kV) | Rated Current of Fuse Element (A) | Standard Size | Rated Breaking Current
(kA) |
| L(mm) | φA(mm) |
| XRNT3A-7.2 | SDODJ | 7.2 | 3.15, 6.3, 10, 16, 20, 25, 31.5, 40 | 192 | φ51 | 50 |
| SEODJ | 50, 63, 80 | φ66 |
| SFODJ | 100, 125 | φ76 |
| SXODJ | 160, 200 | φ88 |
| SDLDJ | 6.3, 10, 16, 20, 25, 31.5, 40, 50 | 292 | φ51 |
| SELDJ | 63, 80, 100 | φ66 |
| SFLDJ | 125, 160 | φ76 |
| SXLDJ | 200, 250, 315 | φ88 |
| SEMDJ | 100, 125 | 442 | φ66 |
| SFMDJ | 160, 200 | φ76 |
| SXMDJ | 250, 315, 355 | φ88 |
| XRNT3A-12 | SDODJ | 12 | 1, 2, 3.15, 6.3, 10, 12 | 192 | φ51 | 50 |
| SELDJ | 16, 20, 25, 31.5, 40 | φ66 |
| SFODJ | 50, 63 | φ76 |
| SDLDJ | 3.15, 6.3, 10, 16, 20, 25, 31.5, 40 | 292 | φ51 |
| SELDJ | 50, 63, 80 | φ66 |
| SFLDJ | 100, 125 | φ76 |
| SXLDJ | 160, 200 | φ88 |
| SDMDJ | 6.3, 10, 16, 20, 25, 31.5, 40, 50 | 442 | φ51 |
| SEMDJ | 63, 80, 100 | φ66 |
| SFMDJ | 125, 160 | φ76 |
| SXMDJ | 200, 250 | φ88 |
| XRNT3A-24 | SDLDJ | 24 | 2, 3.15, 6.3, 10, 12 | 292 | φ51 | 31.5 |
| SELDJ | 16, 20, 25, 31.5, 40 | φ66 |
| SFLDJ | 50, 63 | φ76 |
| SDMDJ | 6.3, 10, 16, 20, 25, 31.5, 40 | 442 | φ51 | 50 |
| SEMDJ | 40, 50, 63 | φ66 |
| SFMDJ | 63, 80 | φ76 |
| SXMDJ | 100, 125 | φ88 |
| SFQDJ | 63, 80, 100 | 537 | φ76 |
| SXQDJ | 125, 160 | φ88 |
| XRNT3A-40.5 | SDMDJ | 40.5 | 2, 3.15, 6.3, 10, 12 | 442 | φ51 | 31.5 |
| SDQDJ | 2, 3.15, 6.3, 10, 16, 20 | 537 | φ51 |
| SEQDJ | 20, 25 | φ66 |
| SFQDJ | 31.5, 40 | φ76 |
| SXQDJ | 50, 56, 63 | φ88 |

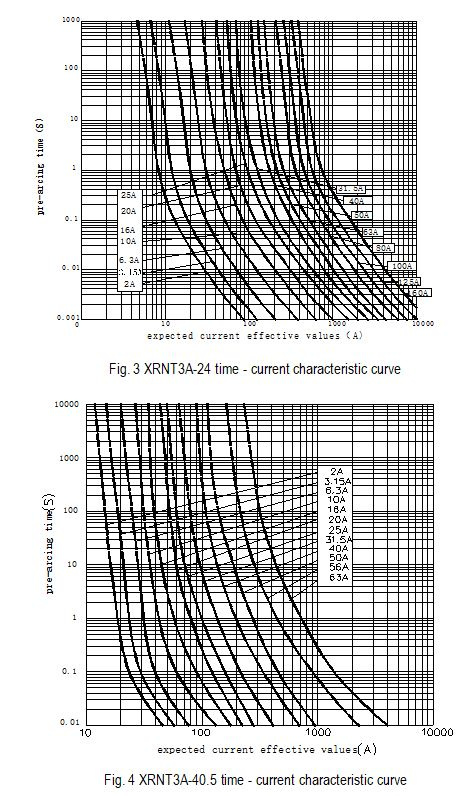

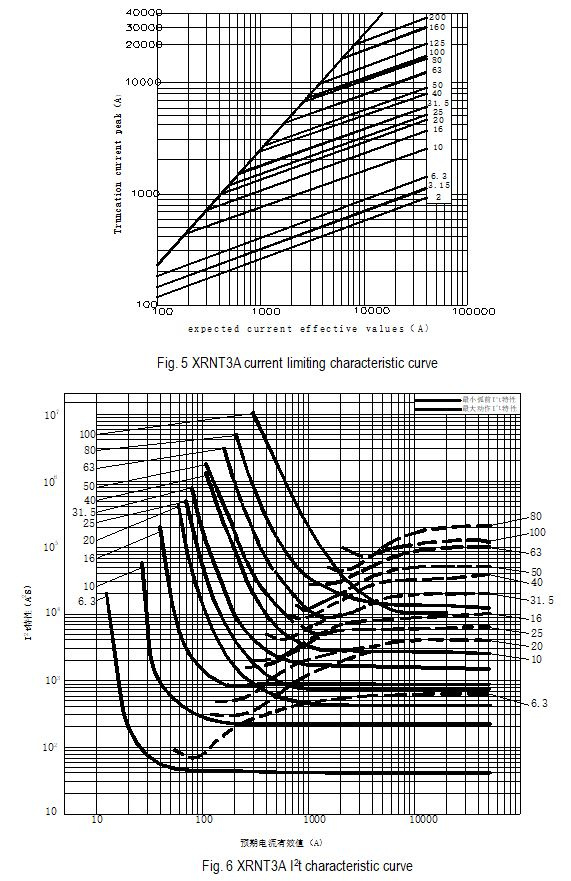

Main technical data 1. The fuse under specified operating conditions is able to reliably break any fault current from the minimum breaking current to the rated breaking current.2. This product applies to the indoor AC 50 ~ 60Hz system.3. Time - current characteristic curve, as shown in Fig. 2, Fig. 3 and Fig. 4, the part above the minimum breaking current is indicated with dotted line.4. Current limiting characteristic curve is as shown in Fig. 5.5. I2t characteristic curve is as shown in Fig. 6.

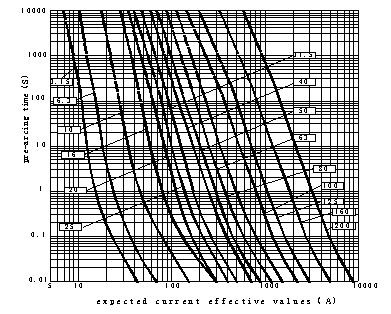

Fig. 2 XRNT3A-12 time - current characteristic curve
Selection of fuseGeneral selection principle for primary fuse of transformer | Rated Voltage (kV) | Rated Capacity of Transformer (kVA) | | |
| 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 |
| Rated Current of High-voltage Fuse (A) |
| 6/7.2 | 16 | 20 | 20 | 25 | 31.5 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
| 10/12 | 10 | 16 | 16 | 20 | 25 | 31.5 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | 160 |
| 15/17.5 | 6.3 | 10 | 10 | 16 | 16 | 20 | 25 | 31.5 | 40 | 50 | 80 | 80 | 100 | 125 |
| 20/24 | 6.3 | 10 | 10 | 10 | 16 | 16 | 20 | 25 | 31.5 | 40 | 50 | 63 | 80 | 100 |
| 35/40.5 | 3.15 | 6.3 | 6.3 | 6.3 | 10 | 10 | 16 | 16 | 20 | 25 | 31.5 | 40 | 50 | 56 |

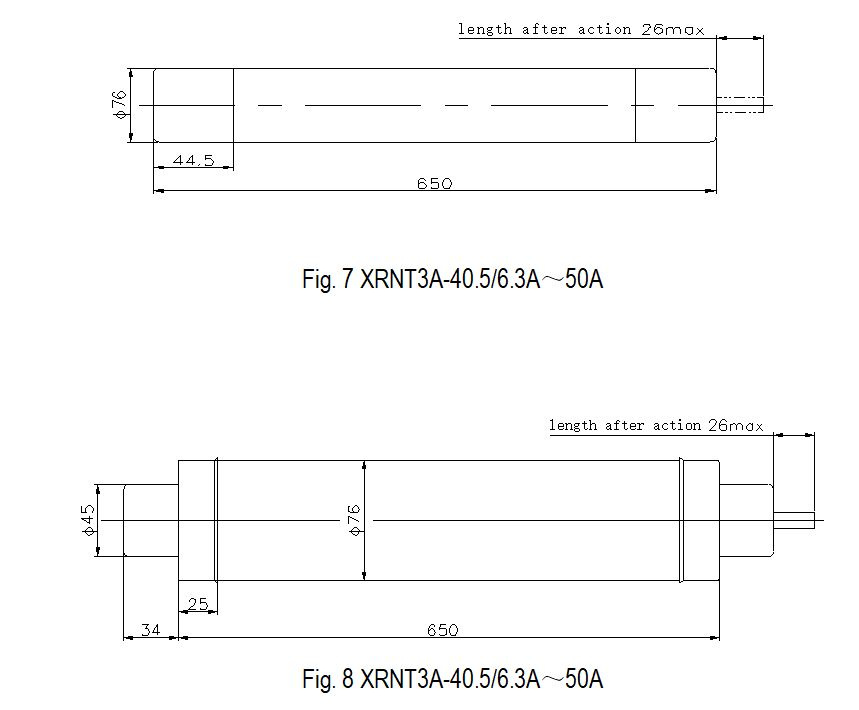

Outline drawing of non-standard fuse link
| Prod Model: |
XRNT3A |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
| Fusing Device: |
Link Break |
