| Prod Model: |
HW-MC202 |
| Item: |
Microwave Sensor Module |
| Model: |
Hw-Mc202 |
| Power: |
AC 220V 1500W |
| Input Voltage: |
AC220V |
| Output Voltage: |
Customized |
| Trigger Way: |
Nonrepeat(Default) |
| Delay Time: |
2s(Default) |
| Distance: |
10m(Default) |
| PCB: |
Single Layer |
| OEM: |
Available |
| Type: |
Microwave Sensor Switch |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Application: |
Corridor |
| Size: |
86 Type |
| Certification: |
CE |
| Principle: |
Radar |
Product Description

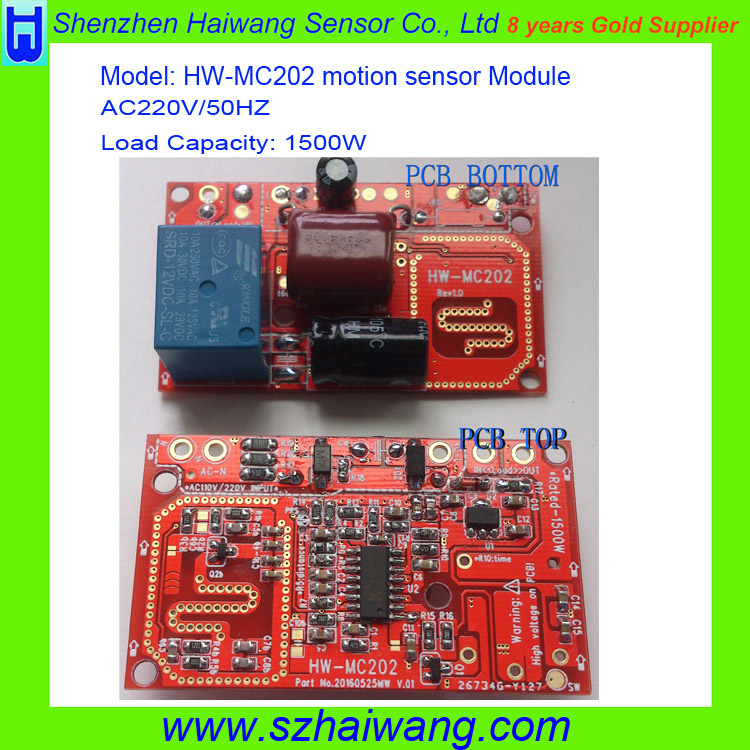

High Voltage Microwave Motion Sensor For LED light
Specfication
| Item | Microwave Sensor Module |
| Model | HW-MC202 |
| Power | AC 220V 1500W |
| Input Voltage | AC220V |
| Output Voltage | Customized |
| Trigger Way | Nonrepeat(Default) |
| Delay Time | 2s(Default) |
| Distance | 10m(Default) |
| PCB | Single |
| Size | 60*35*20mm |
| OEM | Available |
Working Principle
Based on the Doppler, HW-MC202 microwave motion module can output the useful controllable electrical signals(Relay on/ off ) after triggering the microprocessor to work once detected moving objects with the planar antennas which can transmit and receive the HF electromagnetic wave.
Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads, etc.
Features
1.No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2.Wide coverage without blind zone because of its field pattern emission.
3.The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4.The signals can go through glass, door, wall and other obstacles.
5.Professional design of the microwave with flat antenna, low-power, ROSH and high product consistency.
Note
1. Voltage, current, distance, time and size can be customized.
2. Customized distance ranging from 1-20m; customized time ranging from 0.1-2000s. Others can consult our engineers.
3.The module has reserved CDS photo-resistance port that can be used in light control function. The default is "Repeating "
4.We suggest that you should use our regular products because we would charge extra fee on some customized projects. More details could talk with us.
