| Prod Model: |

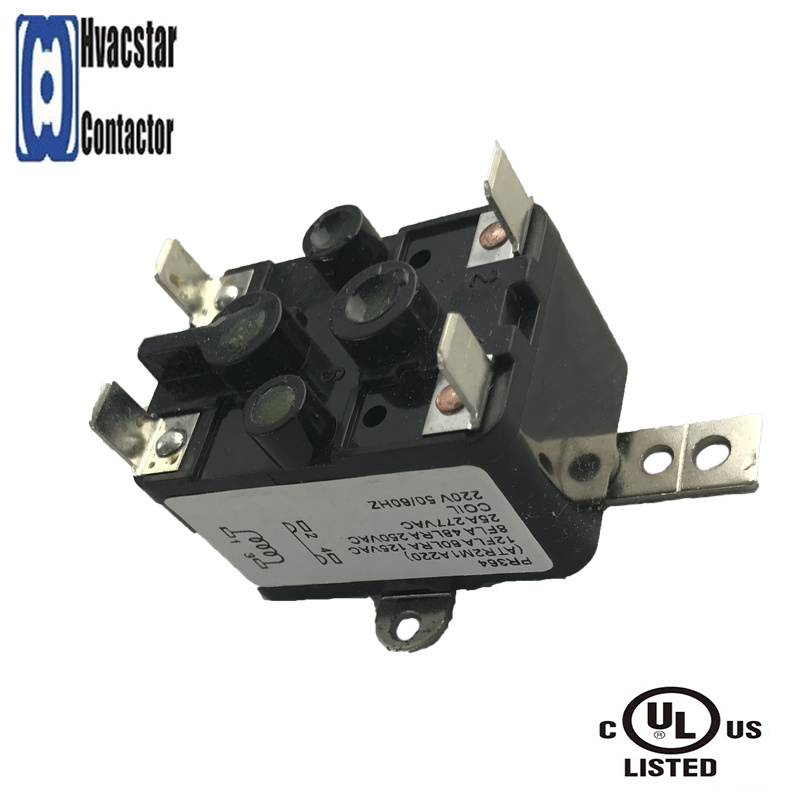

PR384 |
| Color: |
Black |
| Delivery Time: |
30 Days After Deposit |
| Other Services: |
ODM OEM |
Product Description
ABOUT US:
HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and producing kinds of low voltage electrical products and accessories in China. As an enterprise certified by ISO9001 system, we also get UL, IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.
FEATURES:
1) 25A switching capability
2) 2kV dielectric strength(between coil and contacts)
3) Panel mount types available
4) Environmental friendly product(RoHS COMPLIANT)
5) Outline Dimensions: 47.0×32.0×28.5mm
6) UL File NO. E246810
CONTACT DATA:
| Contact arrangement | 1A, 1B, 1C, 1A+1B |
| Contact resistance | 200mΩ max.(at 1A 24VDC) |
| Contact Material | AgCdO |
| Contact rating (Res. Load) | 18A 227VAC |
| Max. Switching Voltage | 277VAC |
| Max. Switching Current | 18A |
| Max. Switching Power | 4986VAC |
| Mechanical endurance | 1×106OPS |
| Electrical endurance | 5×104OPS(25A 227VAC, Resistive load, at 65 ºC 1s on 9s off)
3×104OPS(3A 250VAC, General use, at 65 ºC 1s on 9s off) |
CHARACTERISTICS:
| Insulation resistance | 500MΩmax.(at500VDC) |
| Dielectric strength Between coil & contacts | 2500vac 1min |
| Dielectric strength Between open contact | Dust protected |
| Operate time(at nomi. Volt.) | DC type: 25ms Max. |
| Release time(at nomil. Volt.) | DC type: 25ms Max. |
| Temperature rese(at nomil. Volt.) | 90K Max. |
| Shock resistance(Functional) | 98m/s2 11ms |
| Vibration resistance | 10Hz to 55Hz 0.55mm DA |
| Ambient temperature | -40 ºC to 65 ºC |
| Humidity | 5% to 85% RH |
| Termination | QC |
| Unit weight | Approx. 74g |
| Construction | Dust protected |
COIL POWER
Coil Power DC type: 2.1W; AC type: 3.5VA
COIL DATA at 23ºC
| Nominal Voltage VDC | Pick-up Voltage VDC max. | Drop-out Voltage VDC min. | Max. Voltage VDC
| Coil Resistance |
| 6 | 4.50 | 0.6 | 6.6 | 17.5×(1±10%) |
| 9 | 6.75 | 0.9 | 9.9 | 40×(1±10%) |
| 12 | 9.00 | 1.2 | 13.2 | 70×(1±10%) |
| 24 | 18.00 | 2.4 | 26.4 | 280×(1±10%) |
| 48 | 36.00 | 4.8 | 52.8 | 1120×(1±10%) |
| 120 | 90.00 | 12 | 132 | 7000×(1±10%) |
| Nominal Voltage VDC | Pick-up Voltage VDC max. | Drop-out Voltage VDC min. | Max. Voltage VDC
| Coil Resistance |
| 6 | 5.1 | 0.6 | 6.6 | 4.8×(1±10%) |
| 12 | 10.2 | 2.4 | 13.2 | 19×(1±10%) |
| 24 | 20.4 | 4.8 | 26.4 | 90×(1±10%) |
| 48 | 40.6 | 9.6 | 52.8 | 300×(1±10%) |
| 120 | 102.0 | 24 | 132 | 2000×(1±10%) |
| 240 | 204.0 | 48 | 264 | 7200×(1±10%) |
| 277 | 235.0 | 55.4 | 304.7 | 11000×(1±10%) |
