Infrared Gas Sensor CH4 IR Ndir Biogas Engineering

Name: Infrared Gas Sensor CH4 IR Ndir Biogas Engineering
Brand: all-electronics-online.com
SKU: 826863685
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 25-250/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CH4-G(P)-range
Output:	RS485/4-20mA/0.4-2V
Precision:	5%Fs
After Sale Service:	Yes
Customize:	Yes
Conductivity Type:	Infrared

Product Description

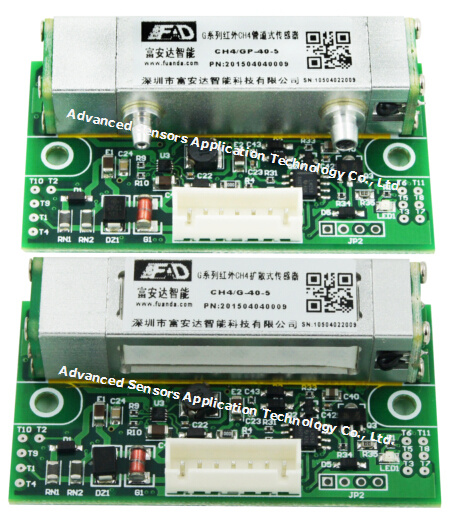

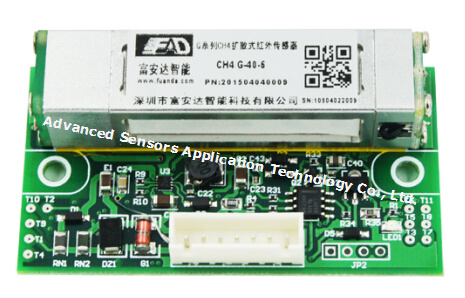

FAD CH4 IR Infrared Gas Sensor Module

G series infrared CH4 gas sensor uses non-dispersive infrared (NDIR) detection technology, with good advantages of long life, low cost, intelligence, micro and so on. Sensor is easy to use, with a complete gas detection, serial communication function, widely used in ventilation systems, industrial control, environmental monitoring and other industries.

Features

Detection principle	NDIR
Detection gas	CH4
Detection Range	0-5%VOL, 0-10%VOL, 0-20%VOL, 0-50%VOL, 0-100%VOL
Resolution	0-5%VOL, 0-10%VOL, 0-20%VOL, 0-50%VOL resolution is 0.01%VOL; 0-100%VOL resolution is 0.1%VOL
Precision	±5%FS
Operation Voltage	12-24VDC
Operation Current	10-120mA
Output Mode	RS485(baud rate 9600)/4-20mA/0.4-2V
Response Time	T90<30s
Temperature	-20°C -50°C
Humidity	0-95%RH
Operating life	>10Years

Product Selection

Gas	GP-40	Range	Precision	Resolution	Power supply	Output
CH4	CH4/GP-40-5	0-5VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CH4/GP-40-10	0-10VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CH4/GP-40-20	0-20VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CH4/GP-40-50	0-50VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CH4/GP-40-100	0-100VOL%	±5%FS	0.1 VOL %	12-24VDC	RS485/4-20mA/0.4-2V

Application
Mining
Coal processing
Natural gas
Pipeline gas leaks
Petroleum extraction
Petrochemical
Pipeline leak detection
Process control analysis
Biogas engineering
Waste incineration and landfill
Municipal engineering
Fire rescue site

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
