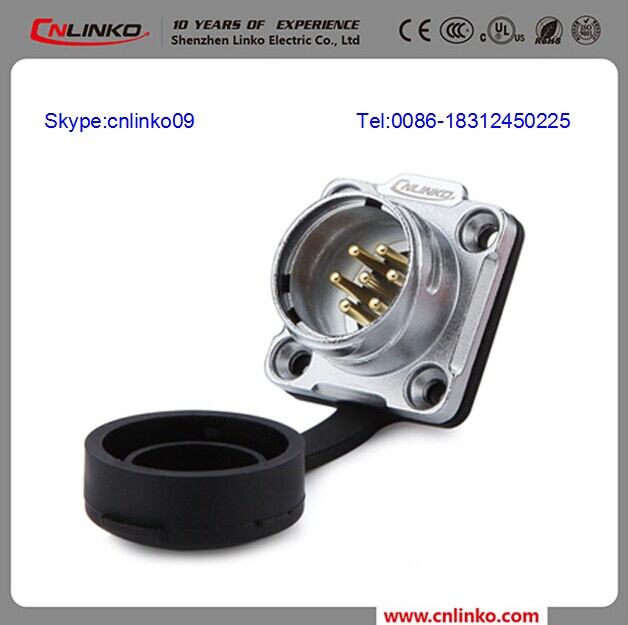

IP67 Waterproof Industry Electrical Connector/Panel Mount Socket

Name: IP67 Waterproof Industry Electrical Connector/Panel Mount Socket
Brand: all-electronics-online.com
SKU: 780091945
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

IP67 waterproof industry electrical connector/pannel mount socket

DH-20 series electrical connectors IP65/IP67
Widely be used:
1: LED display
2: Led screen
3: Led lighting
4: Signal equiptment
5: Solar inverter
6: Data box

DH-20-C07SX-01-001
Specifications:
Connecting mode:	Screw connect
Protection level:	IP65/IP67
Cable specification:	1.0mm2 ~ 1.5mm2 /18~16AWG
Diameter range:	Φ7mm ~Φ9mm
Contact diameter×Qty:	Φ2.0×7
Current rating(A):	12A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<2.5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packing and shipping:

1: 10pcs/small box, 100pcs/ middle box, 240pcs/master box
2: Lead time: 3-5 working days if have in stock, 7-10working days below 500sets
3: Shipping way: by express, by air or by sea

Customer service:

1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312450225 Eunice Tan

Prod Model:	DH-20-C07SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connect Pin:	7pin
Cable Specification:	1.0-1.5mm2/ 18-16AWG
Diameter Range:	Od7-9mm
Rated Current:	12A
Operating Voltage:	500V
Gender:	Male
Application:	UHF

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
