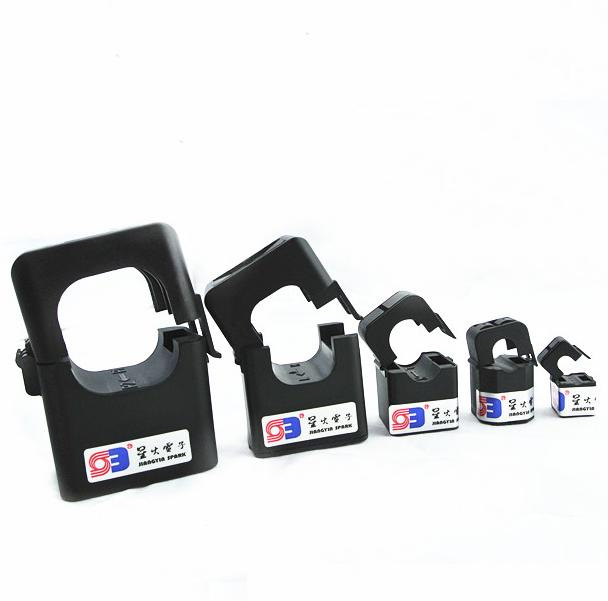

Jiangyin Spark Xh-Sct-T24 200A: 26.6mA Split-Core CT Current Transformer

Name: Jiangyin Spark Xh-Sct-T24 200A: 26.6mA Split-Core CT Current Transformer
Brand: all-electronics-online.com
SKU: 837992895
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 8-39/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications Of Jiangyin Spark XH-SCT-T24 200A:26.6mA Split-Core CT Current Transformer
Maximum continuous primary current 5A to 1000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV ,mA,A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

Drawing Size Of Jiangyin Spark XH-SCT-T24 200A:26.6mA Split-Core CT Current Transformer

^_Model	^_I.D.	^_Ratio	^{_{Rated Amps}}	^_Accuracy
^_XH-SCT-T06	^_6mm	^_1000:1	^{_{1, 5,10, 15, 20,}}	^{_{0.5 , 1.0}}
^_XH-SCT-T10	^_10mm	^_3000:1	^{_{5, 15, 30, 50, 75,80}}	^{_{0.5 , 1.0}}
^_XH-SCT-T16	^_16mm	^_3000:1	^{_{50, 70, 100, 120}}	^{_{0.5 , 1.0}}
^_XH-SCT-T24	^_24mm	^_3000:1	^{_{100, 150, 200, 300}}	^{_{0.5 , 1.0}}
^_XH-SCT-T36	^_36mm	^_3000:1	^{_{300, 400, 500, 600}}	^{_{0.5 , 1.0}}

Pls contact me for much more information by my Skype

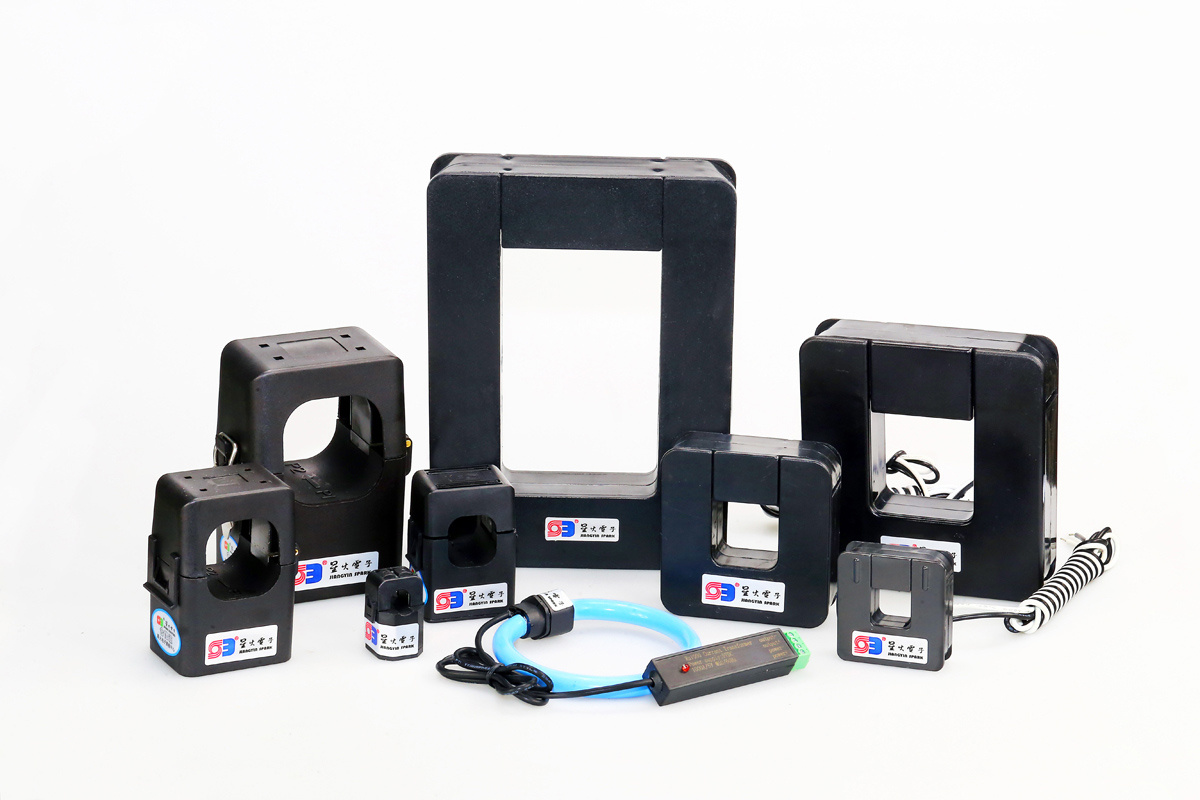

Our products

Certifications

Package Of UL 19mm 150A 333mV SCT-0750 Split Core Current Transformer CTs

Prod Model:	XH-SCT-T06/T10/ T16/ T24/T36/T50
Phase:	Single
Coil:	Core-Type Transformer
Application:	Power, Electronic
