LC Fiber Optic Fixed Attenuator (Bulkhead Type)

Name: LC Fiber Optic Fixed Attenuator (Bulkhead Type)
Brand: all-electronics-online.com
SKU: 817661255
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC Fiber Optic Fixed Attenuator
Application:	Medicine
Connection Structure:	LC
Certification:	ISO9001

Product Description

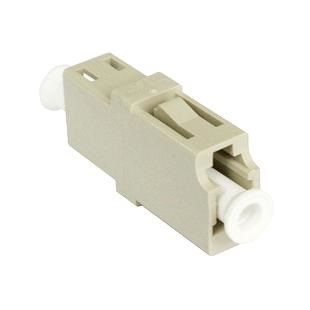

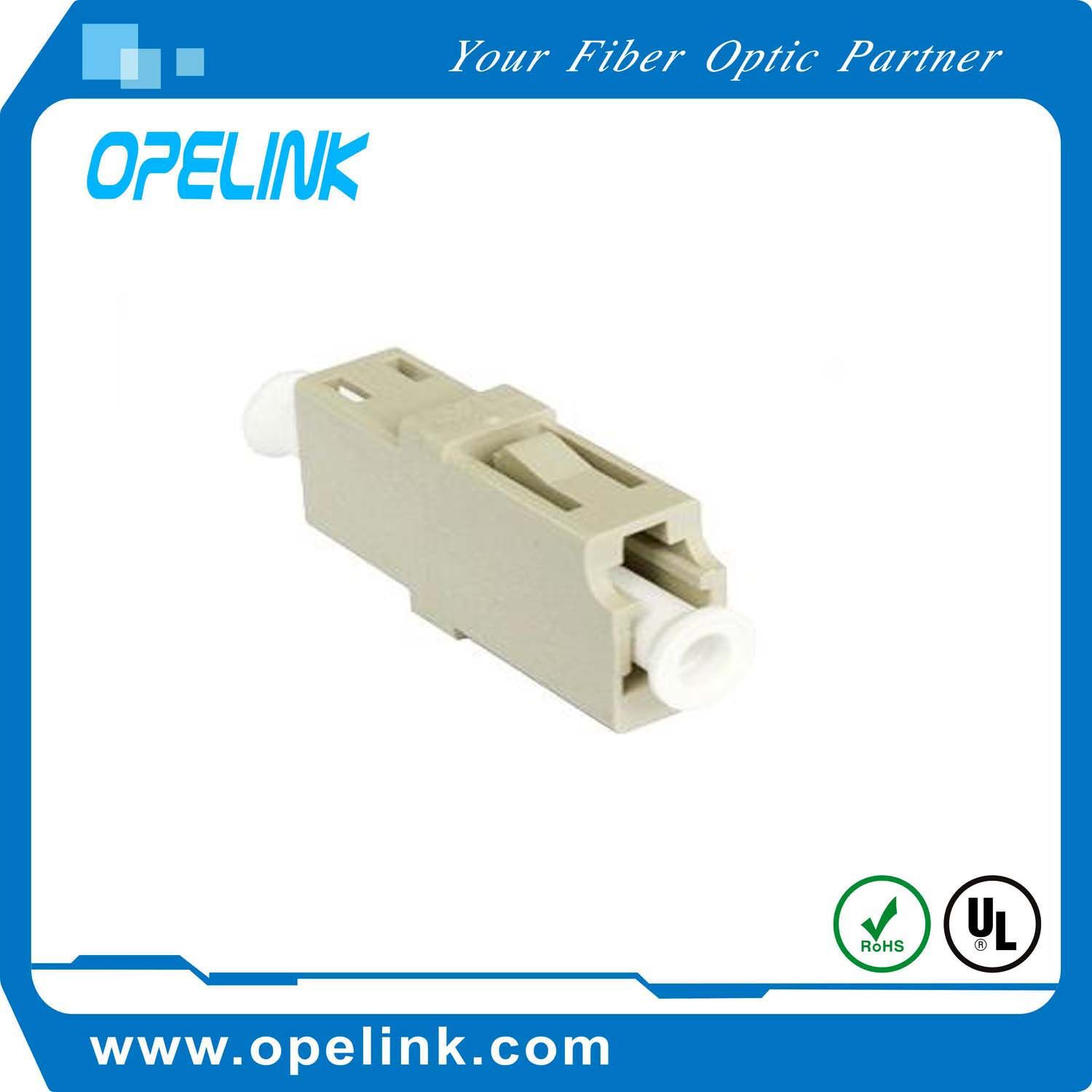

LC Fiber Optic Fixed Attenuator (Bulkhead Type)

Description:
Opelink's Fixed Adapter Type Attenuators (Bulkhead Type) Utilizes the Air Gap between two Connectors to Achieve the Optical Attenuation. This Fixed Optical Attenuator Has a Similar Structure of a Standard Female to Female Optical Adapter.

Features:
Simple, Low Cost and Compact

Applications:
Low Insertion Loss Deviation
Fiber Optical Communication Systems
Variable of Attenuation Ways and a Bound of Connector Types
Fixed Type
Local Area Networks (LAN)

Specifications:

Connector Type	FC/UPC,SC/UPC,FC/UPC-SC/UPC,LC/UPC,MU/UPC
Available Wavelengths	1310nm or 1550nm
Fixed Attenuation Value	2,3,5,10,15,20dB
Return Loss	≥45-50 dB (PC)
Polarization Dependent Loss	≤0.2dB
Temperature Range	-40ºC -80ºC
Attenuation Tolerance	3 dB,5dB	±0.8dB
	10dB	±1.2dB
	15dB	±1.5dB
	20dB	±2.0dB

Order Information:

type	End Face	Material	Housing Color	RL	Attenuation
SC=SC FC=FC LC=LC MU=mu ST=ST SA=SC Adap. FA=FC Adap.	P=PC A=APC	P=plastics M=metal	BL=Blue GR=Green BE=Beige AQ=Aqua ME=Metal	50=50dB 55=55dB 60=60dB 65=65dB	01=1dB 02=2dB 03=3dB 04=4dB 05=5dB 06=6dB 10=10dB xx=other

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
