Lever Type Angular Displacement High Resolution Sensor for Aircraft Steering

Name: Lever Type Angular Displacement High Resolution Sensor for Aircraft Steering
Brand: all-electronics-online.com
SKU: 825884635
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTM-50mm
Feature:	Linear Excellent
Repeatability:	0.01mm
Working Speed:	5m/S
Warrenty:	12months
Material:	Aluminum Alloy

Product Description

Lever Type Angular Displacement High Resolution Sensor for Aircraft Steering

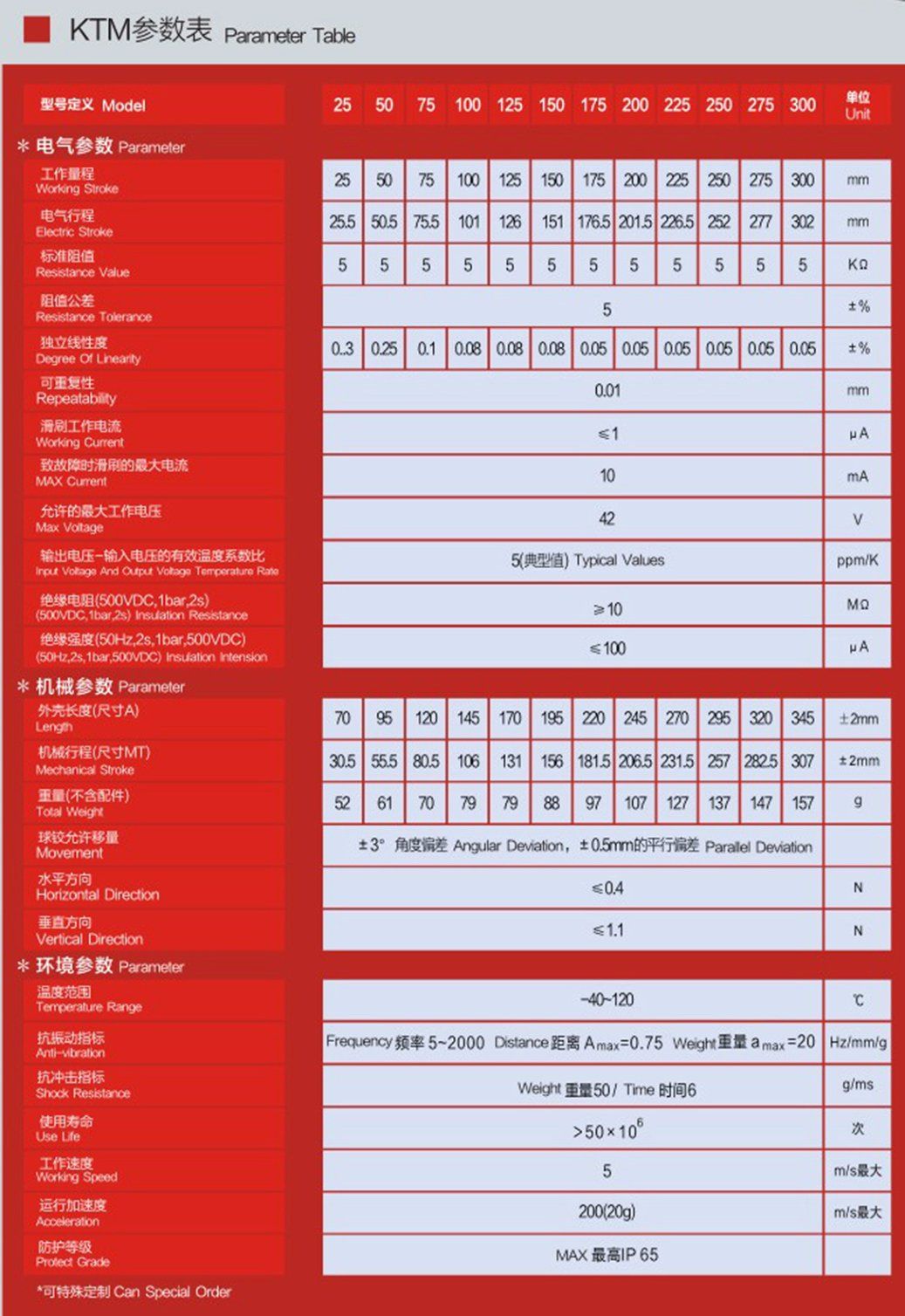

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	25-300	-40~120	≤0.4	≤1.1

Product feature:
Volume smaller
Linear excellent
Resolution rate is higher than 0.01mm
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage:

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacture.

Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: How to buy 1 pcs to test quality?
A: Please contact us, we have our express agent can choosing the cheapest and fastest way to delivery.

Q: I only want to buy 10pcs, but express is too high cost, what can I do?
A: Please contact us and provide destination port details. We have own forwarder. Working term is very fexible in our company, FOB or C&F are no problem for us

Q: How can I pay to you?
A: We accept , T/T, L/C or you any other payment terms for your convenience.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
