Prod Model: |
MJ25516 MJ25517 MJ25528 MJ25537 MJ25539 |
CDS Photoresistor: |
Ldr |
Size: |
25mm |
Max.Voltage: |
500V |
High Sensitive: |
Good Price |
Max Power Consurrption: |
200MW |
Environmental Temperature: |
-30~+70 |
Spec Trum Peak Value: |
560nm |
Lightresistance: |
50-100k |
Dark Resistance: |
1-8m |
Responsetime: |
30s |
Resistance: |
Sensitive Resistor |
Installation: |
DIP Resistor |
Material: |
Ceramic and Metal |
Package Type: |
Throught Hole |
Type: |
Photoresistor |
Function For Resistance: |
CDS Photoresistor |
Application: |
Optical Control Field |
Brand: |
OEM |
Product Description
Light Dependent Resistor LDR 25MM Photoresistor(MJ25539)SpecificationsGood reliability Small volume
High sensitivity
Fast response
Good price
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
Performances and Features Coated with expoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications - Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
Technical parameter for 7mm photocell sensor Specification | Type | Max Voltage (VDC) | Max power (mw) | Environmental temperature | Spectrum peak value (nm) |
φ25 series | MJ25516 | 500 | 500 | -30~+70°C | 560 |
MJ25517 | 500 | 500 | -30~+70°C | 560 |
MJ25528 | 500 | 500 | -30~+70°C | 560 |
MJ25537 | 500 | 500 | -30~+70°C | 560 |
MJ25539 | 500 | 500 | -30~+70°C | 560 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) | r100/10 | Response time (ms) | Illuminance resistance characteristic |
Increase | Decrease |
φ25series | 5-10 | 1 | 0.6 | 30 | 30 | 3 |
10-20 | 2 | 0.6 | 30 | 30 | 3 |
20-30 | 3 | 0.7 | 30 | 30 | 4 |
30-50 | 5 | 0.8 | 30 | 30 | 4 |
50-100 | 8 | 0.8 | 30 | 30 | 6 |

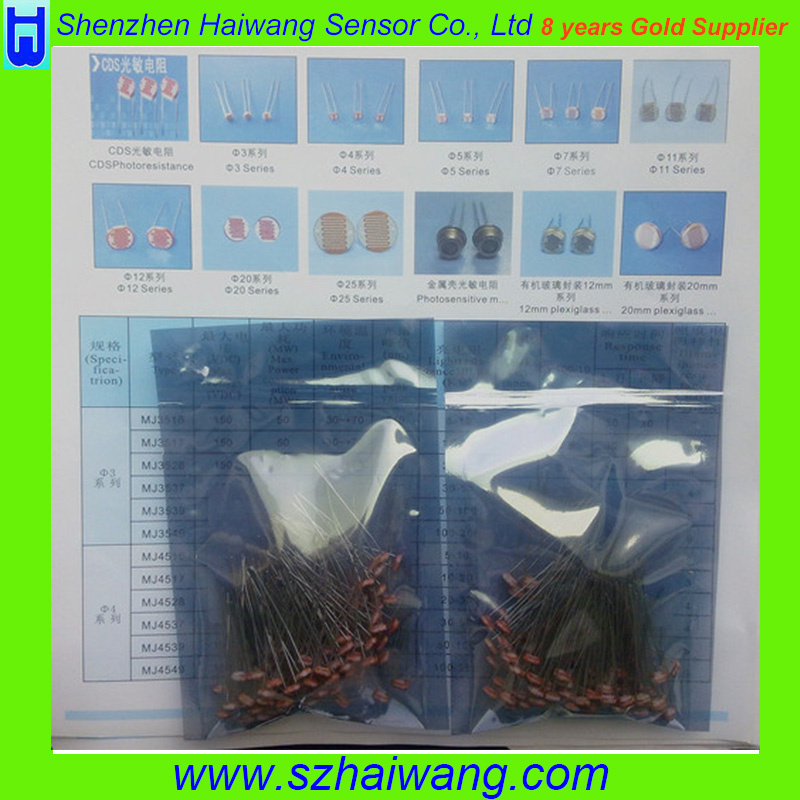

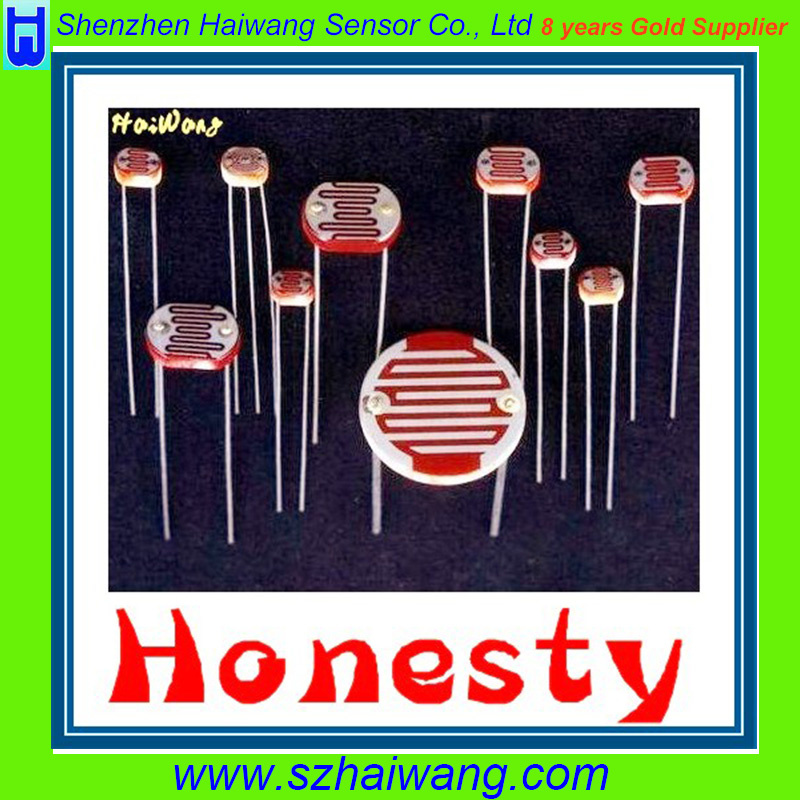

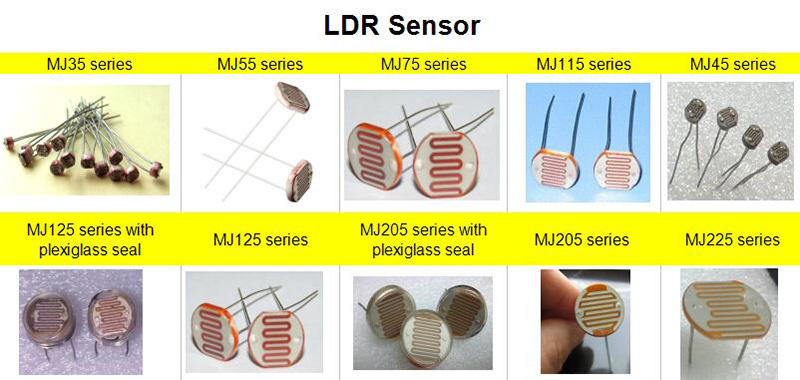

Relatived Product Photo Show:
