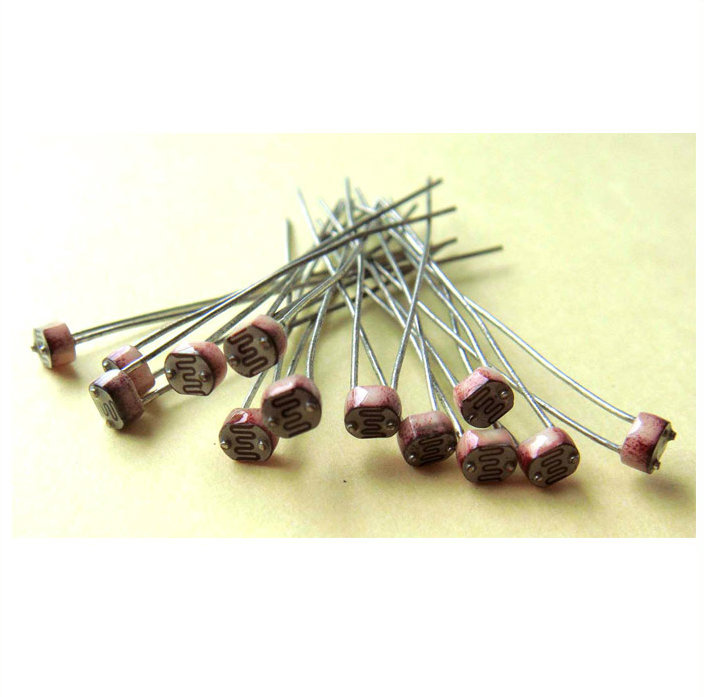

Light Dependent Resistor Ldr 3mm Photoresistor 3mm 3538 CDS

Name: Light Dependent Resistor Ldr 3mm Photoresistor 3mm 3538 CDS
Brand: all-electronics-online.com
SKU: 794018445
Availability: InStock
Rating: 4.5 (53 reviews)

Price:	US $ 0.07-0.12/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Great Reliability 3mm LDR Sensor MJ35 series for Photoelectric Control
Light Dependent Resistor LDR 3MM Photoresistor 3mm 3538 CDS

Specifications
Good reliability Small volume
High sensitivity
Fast response
Good price

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.

Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
-Annunciator

Technical parameter for 5mm photocell sensor

Specification	Type	Max Voltage (VDC)	Max power (mw)	Environmental temperature	Spectrum peak value (nm)
φ3 series	MJ3516	150	50	-30~+70°C	540
	MJ3517	150	50	-30~+70°C	540
	MJ3538	150	50	-30~+70°C	540
	MJ3537	150	50	-30~+70°C	540
	MJ3539	150	50	-30~+70°C	540
	MJ3549	150	50	-30~+70°C	540

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		Illuminance resistance characteristic
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	Illuminance resistance characteristic
φ3 series	5-10	0.6	0.5	30	30	2
	10-20	1	0.6	30	30	3
	20-30	2	0.6	30	30	4
	30-50	3	0.7	30	30	4
	50-100	5	0.8	30	30	6
	100-200	10	0.9	30	30	6

About Haiwang
Shenzhen Haiwang Sensor Co., Ltd is specialized in developing, manufacturing and export of photo resistor, thermisters, sensors, optical lenses and other sensitive components.
Our products include photoresistance, photosensitive sensor, thermistor, pyroelectric infrared sensor,
infrared induction IC, fresnel lens, LED lens and other related sensitive components.

Prod Model:	LDR
CDS Photoresistor:	Ldr
Size:	3mm
Max.Voltage:	150V
Rated Power:	90W, 100MW
Mox Power Consurrption:	50MW
Environmental Temperature:	-30~+70
Spec Trum Peak Value:	540nm
Lightresistance:	5-200k
Dark Resistance:	0.6-10m
Responsetime:	30s
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Photoresistor
Function For Resistance:	CDS Photoresistor
Application:	Optical Control Field
Brand:	OEM
