Linear Variable Pull Wire Sensors for Displacement and Position

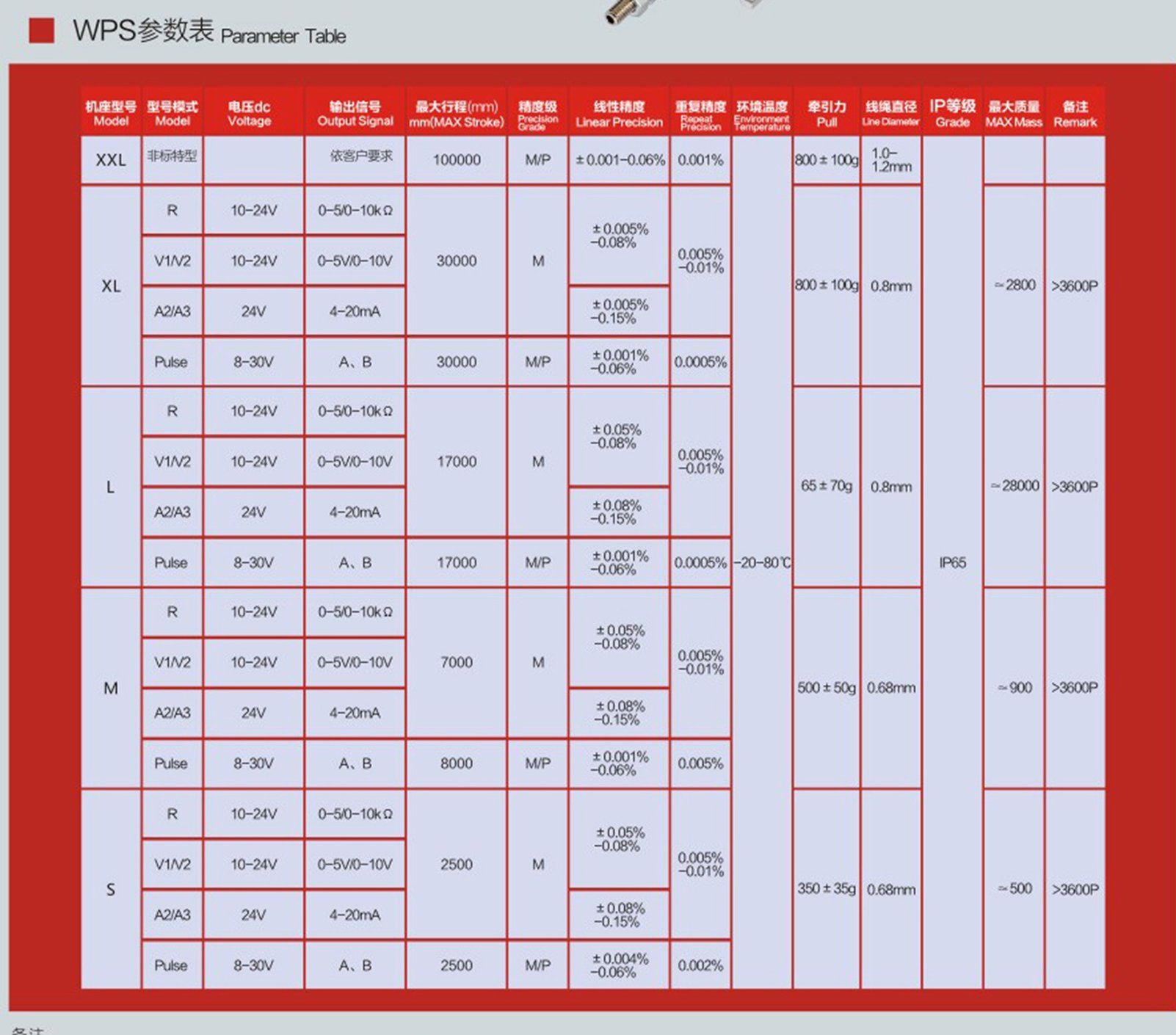

Modle	Max Stroke	IP Grade	Line Diameter	Environment Temperature
WPS	mm	IP	mm	ºC
L	17000	65	0.8	-20~80

Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
With fashion black box
Precious and not too clear

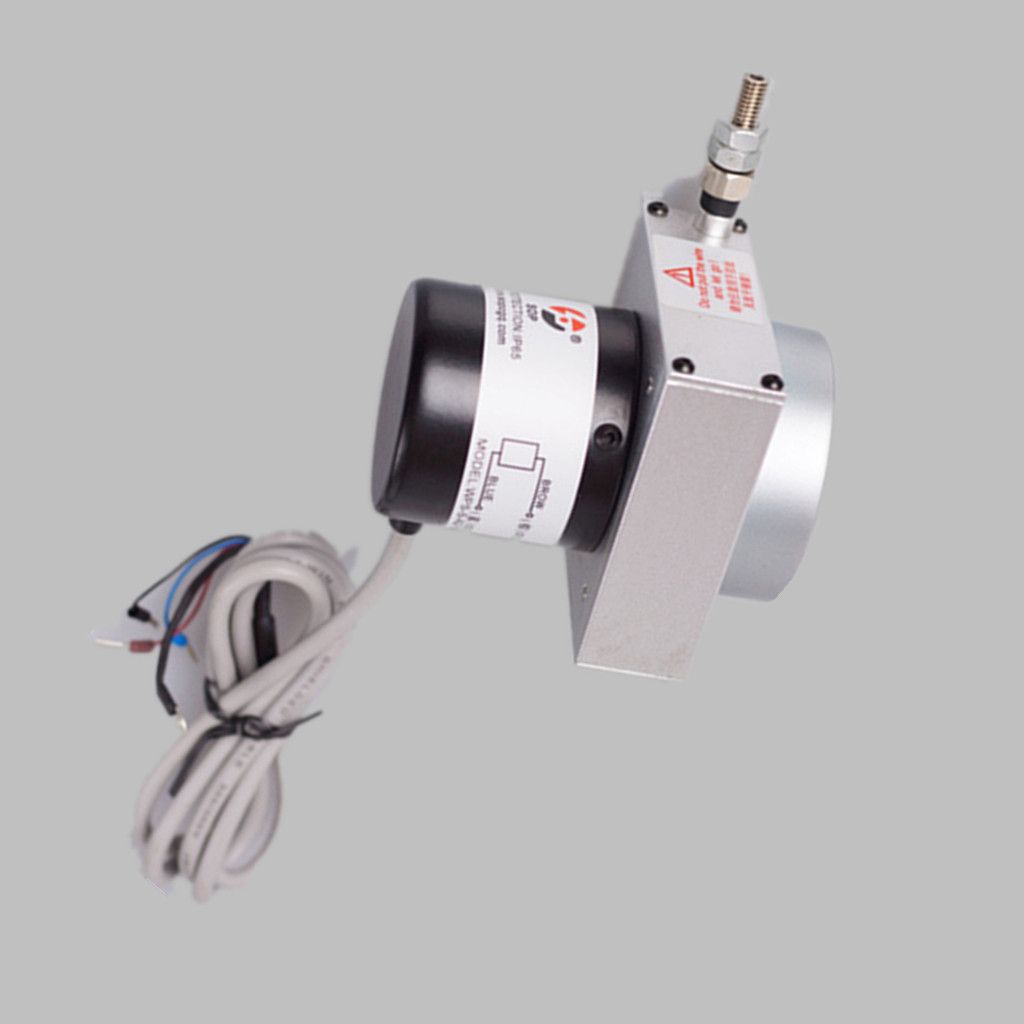

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

Rope displacement sensor, also known as draw wire sensor, rope encoder. It is fully compacted by a linear displacement sensor in structure which combined the advantages of an angle sensor and linear displacement sensor, ranging from a few hundred millimeters to 100 meter, with small size, compact structure, measuring stroke, high precision and 4 to 20 mA analog current, analog voltage 0 to 5 V or 0 to 10 V and pulse A, B, Z-phase digital output to meet various signals demand of the large stroke, high precision for the majority of customers use.

Prod Model:	WPS-L-9000mm
Feature:	High Efficiency, Linear Excellent
Repeatability:	0.01mm
Max Stroke:	17000mm
Warrenty:	12 Months
Product Name:	Displacement and Position Sensor
Material:	Aluminum Alloy
