1.DSP control
2.Double CPU control
3.Modularize
4.Battery can be sharing
5.Up to 8 units in parallel
6.Compatible with generator
7.Manual maintenance bypass
8.Wide input voltage range
9.High output power factor
10.Strong environmental adaptability
11.Advanced battery management
12.N+X parallel redundancy
13.Strong shock resistance ability
14.EPO function
15.Full protection against over-discharge, overcharge, over load
ApplicationLarge-medium computer data center, industrial process and other mission-critical equipment
Technica Specification
High Efficiency Strar Series HE33 10K-200K |
Model | HE33 Series UPS |
Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
Operate type | Double conversion online type |
Input | Nominal voltage | 220V/380, 230/400, 240/415V |
Voltage Tolerance | 380/400/415V±25% |
Frequency | 50Hz/60Hz±5% |
Permitted Frequency Tolerance | ±2% (selectable from ±1% to 5% from the front panel) |
Soft start | 0-100% in 30" (selectable) |
Input power factor | 0.95(with input filter) |
Standard features | Back Feed protection separable bypass line |
| Phase | Three phase +N+G |
Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
Static stability | ±5% in 19ms |
Distortion | Linear load <3%, non linear load<5% |
Power factor | 0.8 |
Output wave | Pure sine wave |
Crest factor | 3:01 |
Battery voltage | Standard battery voltage | 384V | 432V | 480V |
Floating charge | 432V | 486V | 540 |
Terminal voltage | 336V | 378V | 420V |
Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge Current | 28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
Main Function | Active voltage change | 0-100%±5% |
Instant recover time | <10ms |
Imbalance voltage | <±5%,<±1%( Balance load voltage) |
Overload capacity | 125%→10min,150%→1min |
Static switch | Automatic |
Protection | UPS over current, short circuit, battery low voltage, over heat |
Cold method | Compel aeration ( temperature control mode) |
Noise | 60-65dB |
Display | LED,LCD display |
Remote signalling | Voltage-free contacts |
Remote commands | EPO and bypass |
Communication Port (Optional) | double RS232 + remote contacts + 2 communication interface slots |
Alarm | Alarm with buzzer and indicators |
Environment | Temperature: 0-40C Humidity: 0-90% |

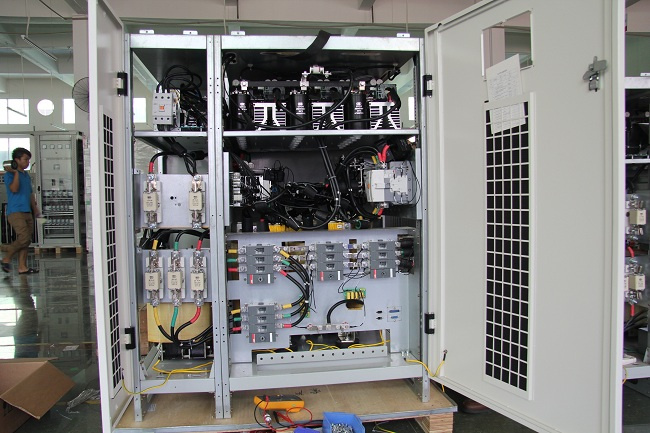

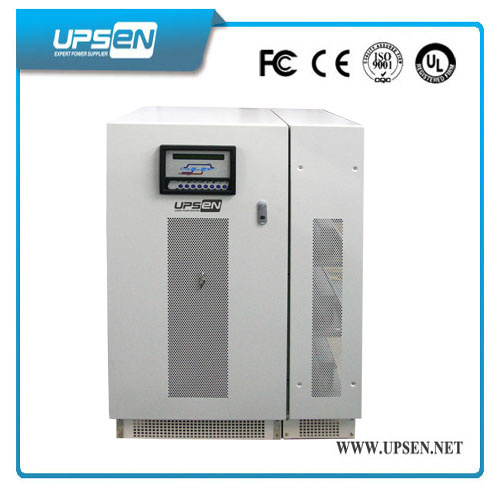

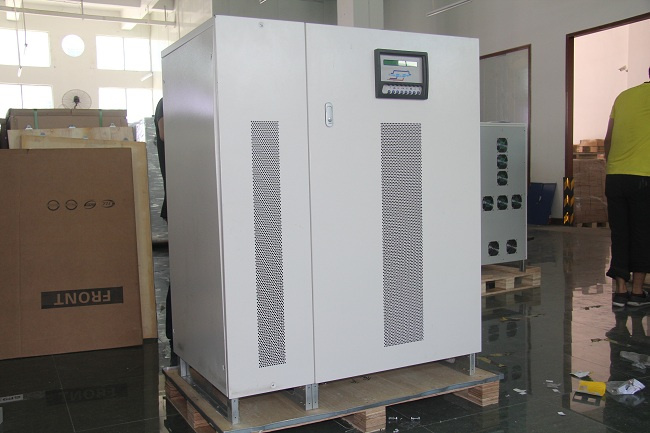

Low Frequency Online UPS Advanced battery management [HE33 10K-200K ( 3Ph in / 3Ph out )]
