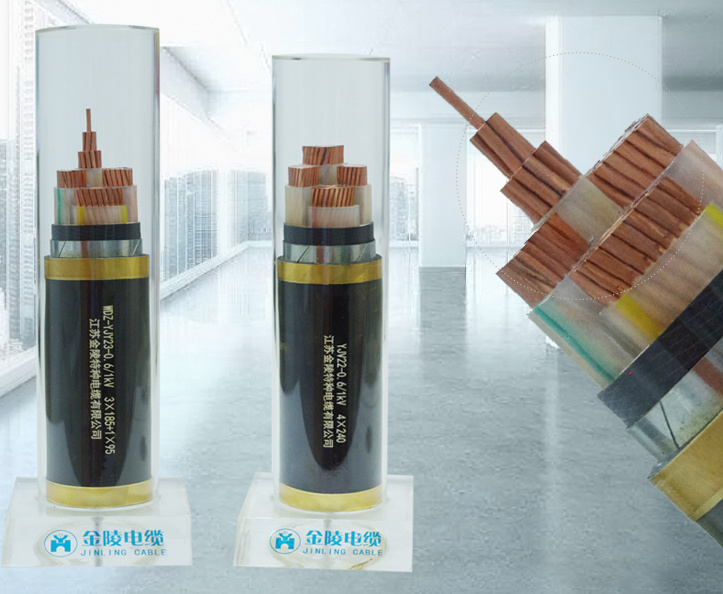

LV Insulted Electric Power Cable
| Price: |
US $ 1-100/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
1.Product Description 0.6/1KV,1.8/1KV,3.6/6KV,6/10K,8.7/15KV,12/20KV,18/30KV,26/35KV XLPE insulated power cable
(1)Production capacity:2000km/month
(2)MOQ:1km
(3)Delivery:5~15 officail days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.2.Specification 1.) Conductors: copper or aluminum.
2.)Both armored and non-armored type power cables are available.
3.)Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4.)PVC or XLPE sheathed.
5.)Number of cable cores: one core (Single core),two cores(Double cores),three cores, four cores (Four Equal-section-area cores or three equal-section area cores and one smaller section area neutral core), five cores (Five equal area cores or three equal-section-area cores and two smaller section area neutral cores).
6.)Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.3.Number of Cores & Nominal Cross-section Area| Number of Cores | 1 | 2 | 3 | 3+1 | 4 | 3+2 | 4+1 | 5 |
| Section Area (mm2) | 4 - 500 | 2.5 - 500 | 2.5 - 300 | 4 - 300 | 2.5 - 300 | 2.5 -300 | 4 - 300 | 2.5 - 95 |
2.) The bending radius of cable should not less than 8 times.
3. )After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C. 5.In air:1.) As the single core cable laying in parallel, the distance between the cable's center is 2 times (for cables which cross section area of conductor ≤185mm2) and
90mm (for cables which cross sectional area of conductor≥240mm2)
2.) Ambient temperature: 30ºC
3.) Max. temperature of conductor: 70ºC
4.)Rating factors of current rating for ambient temperature:| Air temperature | 20ºC | 25ºC | 35ºC | 40ºC | 45ºC |
| Rating factors | 1.12 | 1.06 | 0.94 | 0.87 | 0.79 |
2.) Ambient temperature: 25ºC.
3.) Max. temperature of conductor: 70ºC.
4.) Soil thermour resistivity: 1.0ºC. m/w.
5. ) Depth: 0.7m
6. ) Rating factors under different ambient temp.:| Air temperature | 15ºC | 20ºC | 30ºC | 35ºC |
| Rating factors | 1.11 | 1.05 | 0.94 | 0.88 |
7.
| TYPE | Description of Cable
| Main Applications
|
| CU core | AL core |
| NYY | NAYY | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
| NY2Y | NAY2Y | Copper/Aluminium core,PVC insulated,PE sheathed power cable |
| NYBY | NAYBY | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
| NYB2Y | NAYB2Y | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
| NYRY | NYRY | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
| NYR2Y | NYR2Y | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
| Prod Model: |
NYY, NYBY, NYRY |
| Number Of Core: |
1-5 |
| Refer Standard: |
IEC 60502-1,BS, DIN |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Wire Core Material: |
Copper |
| Model: |
Nyy, Nyby, Nyry |
| Brand: |
Jl |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
