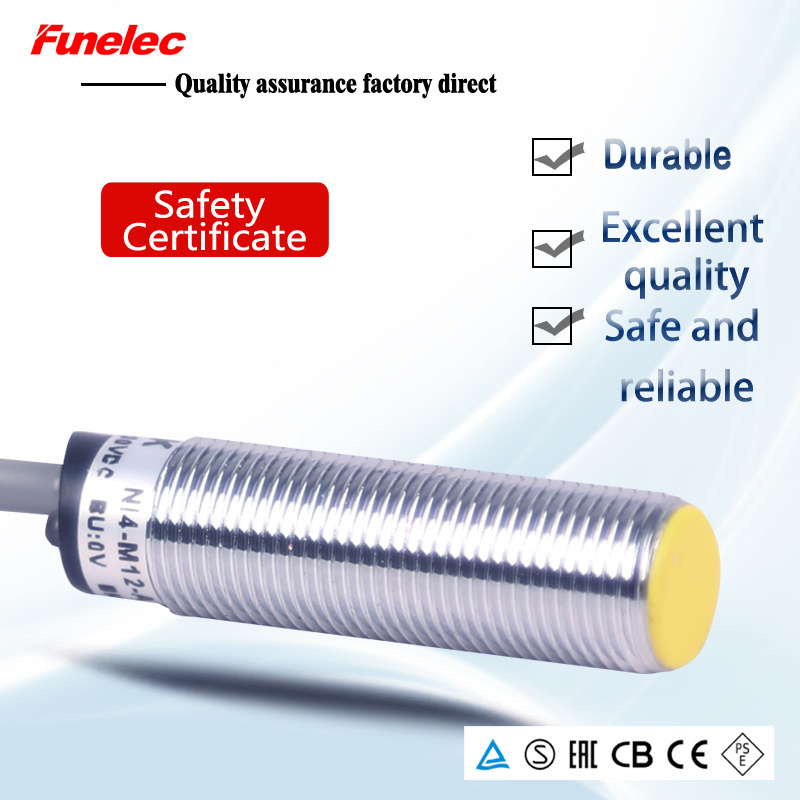

M12 Cable Series DC 3-Wire Proximity Sensor with Cylindrical Housing
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
FNT-X12 Series Proximity Sensor/ inductive proximity switch
Detailed Product Description
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it | Mounting | Flush / Non-Flush |
| SN | 2mm / 4mm |
| Power supply | 10-36V DC |
| Housing size | M12*60 M12*65 |
| Thread size | M12*1*45 |
| Output | NPN/PNP NO/NC |
| Temperature drift | ≤±10% |
| Hysteresis | 1-20% |
| Repeat accuracy | ≤5% |
| Load current | ≤150mA |
| Residual voltage | ≤2.5V |
| Consumption current | ≤10mA |
| Protection circuit | surge, overload, short-circuit, reverse polarity |
| Indicator | Yellow LED |
| Ambient temp. | -25 ~ +70ºC |
| Ambient RH | 35-95% |
| Frequency | 800Hz |
| Protection degree | IP67 |
| Housing material | Stainless steel |
| Connection | PVC Cable 2m |
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
| Prod Model: |
FNT-X12 |
| Material: |
Stainless Steel |
| Voltage Type: |
DC Voltage |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flush / Non-Flush |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP 3 Wire, Two Wire |
| Application: |
Position Sensor, Speed Sensor |
