M12 Connector RJ45 Cable Joiner M12 8-Pin X-Code Male to RJ45 Plug Molded Cable Connector

Name: M12 Connector RJ45 Cable Joiner M12 8-Pin X-Code Male to RJ45 Plug Molded Cable Connector
Brand: all-electronics-online.com
SKU: 827619225
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

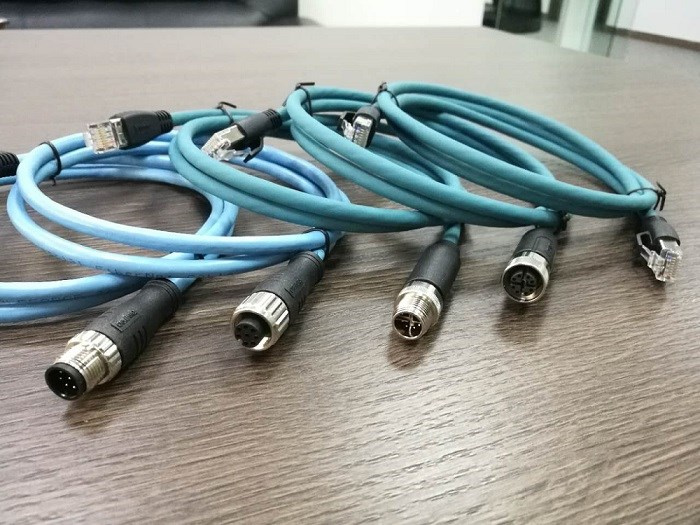

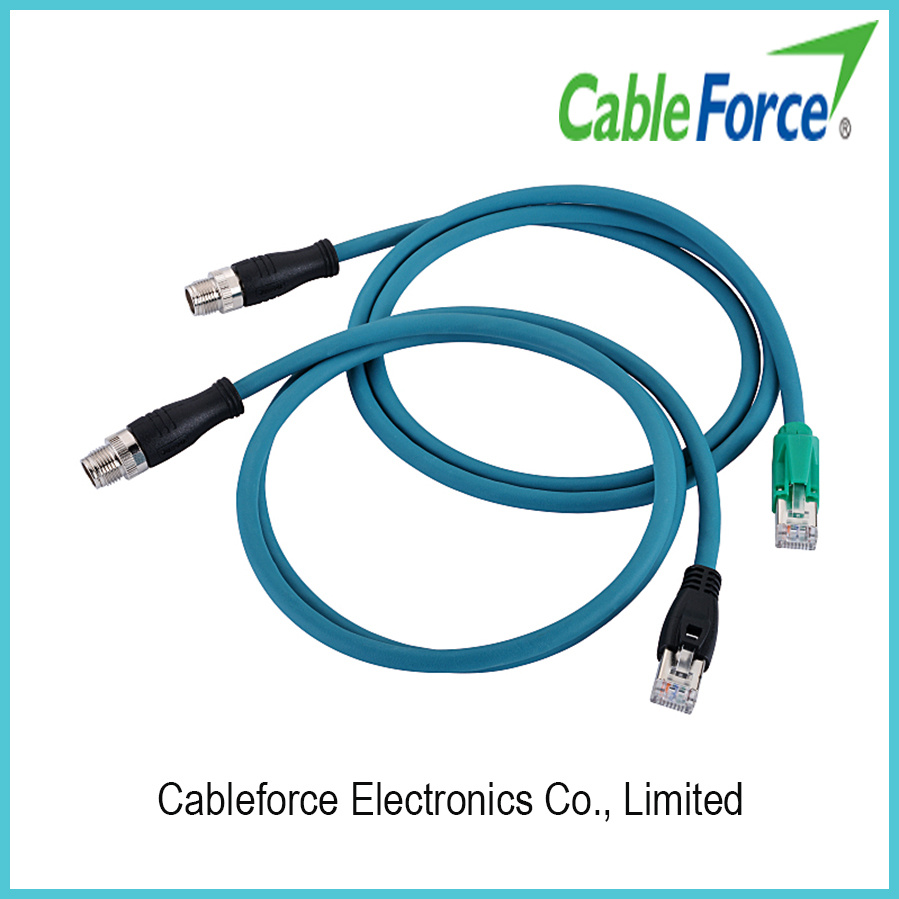

M12 connector rj45 cable joiner M12 8-pin X-code Male to RJ45 Plug Molded Cable connector

1.Descriptions
Cable force developed the profinet cable and connectors, M12 X-coding connector to fulfill the profinet types application requirements and fully compatible with standard IEC 61076-2-109.

2.Electrical and mechanical data
Part No.: MC08C1LSG30XSB14-RJ45
Coding: X-code
Number of contacts: 8pin
Connection type: double ended cable
Connector contacts: brass with gold plating
Coupling nut/screw: brass with nickel plating screw
Wire termination: soldering
Wire gauge: 26AWG/0.14mm²
Ambient temperature: -25 to 80°C
Rated current: 0.5A
Rated voltage: 48V
Insulation resistance: ≥100mΩ
Contacts resistance: ≤5mΩ
IP rating: IP67

3.Applicarions
(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packing, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel and outdoor LED lighting

4.Quality statement
(1) Screws/nuts material: brass C3604 with 120μ nickel-plated, CNC parts
(2) male contacts material: brass C3604 with 3μ gold-plated on nickel base, machined solid pin
(3) Protection degrees: IP67 in locked status, IP68 base on customer specific requirements
(4) RoHS Directive-compliant

5.Product certificate

6.Company profile

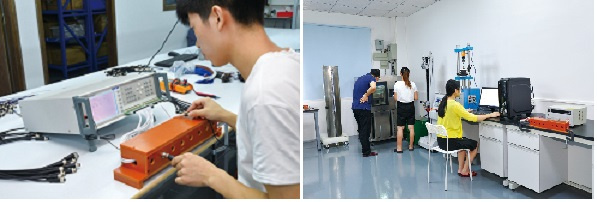

Cableforce established in 2015, focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks.

8.FAQ
(1) Q: Are you a manufacturer or trading company?
A: We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A: The series(M5, M8, M12, 7/8"), coding, male or female, pin number, cable length etc.

(3) Q: What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q: Can you provide samples?
A: Of course can be provided.

(5) Q: Sample lead time?
A: 2-4 workdays

(6) Q: Volume order lead time?
A: 3-10 workdays

(7) Q: How do you ship the finished product?
A: We can contact the shipping company or your shipping agent. The formal shipping way: DHL, FedEx, UPS, TNT

Prod Model:	MC08C1LSG30XSB14-RJ45
Coding:	X-Coding
Standard:	IEC 61076-2-109
Shielding:	Shielded

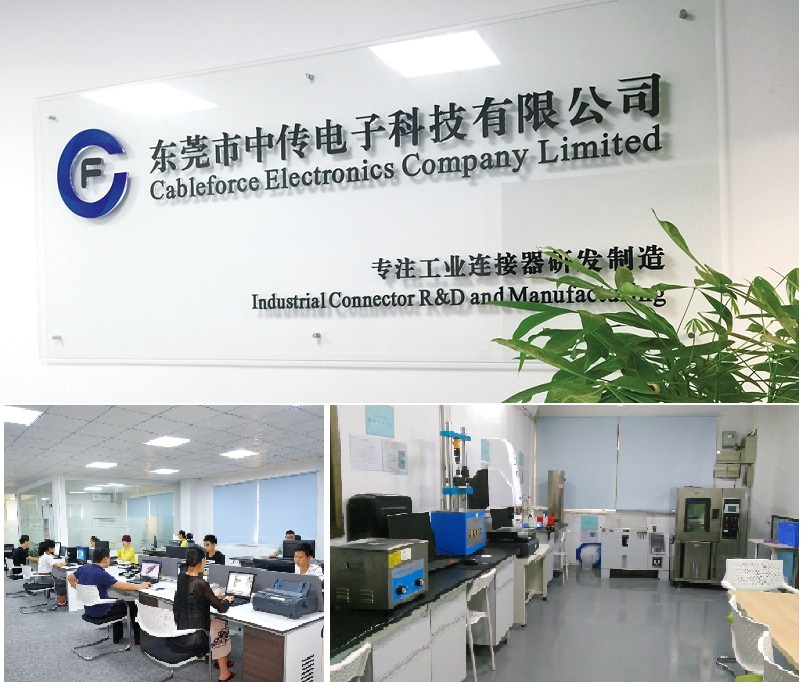

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
