M12 5pin Male Right Angled Molded Cable Circular Connector with Cable Plug

Name: M12 5pin Male Right Angled Molded Cable Circular Connector with Cable Plug
Brand: all-electronics-online.com
SKU: 824563295
Availability: InStock
Rating: 5 (62 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

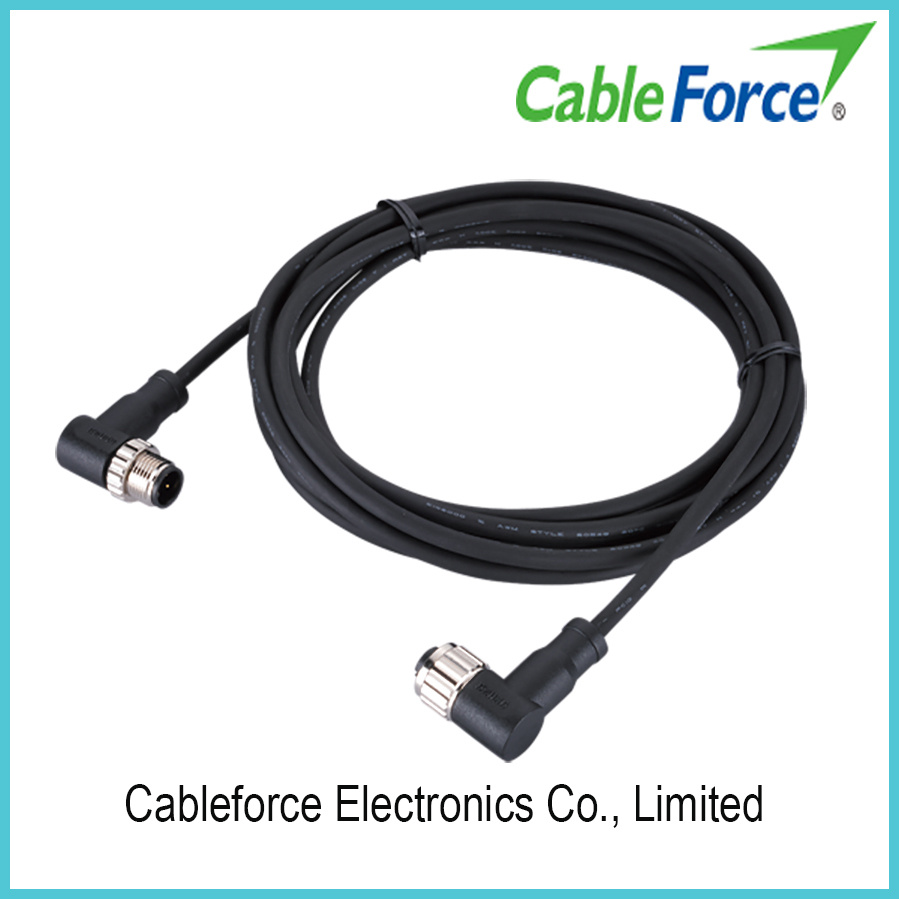

M12 5pin Male Right Angled Molded Cable Circular Connector with Cable Plug

1.Product description

M12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.

(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) 2, 3, 4, 5, 8, 12 poles per connector are available
(5) Operating voltage 250V/60V/30V; Current range: 4A, 2A, 1.5A
(6) Anti-vibration locking screw design

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated screw

Overmold/ Shell:TPU

Connector contacts:Brass with gold plated

Number of contacts	05 Pin	Coding	A-Code
Sealing	O-ring	IP rating	IP67
Shielding	Non-Shielded	Orientation	right angled
Wire gauge	22AWG/0.34mm²	Rated current	4 A
Wire Termination	Soldering	Rated voltage	60 V

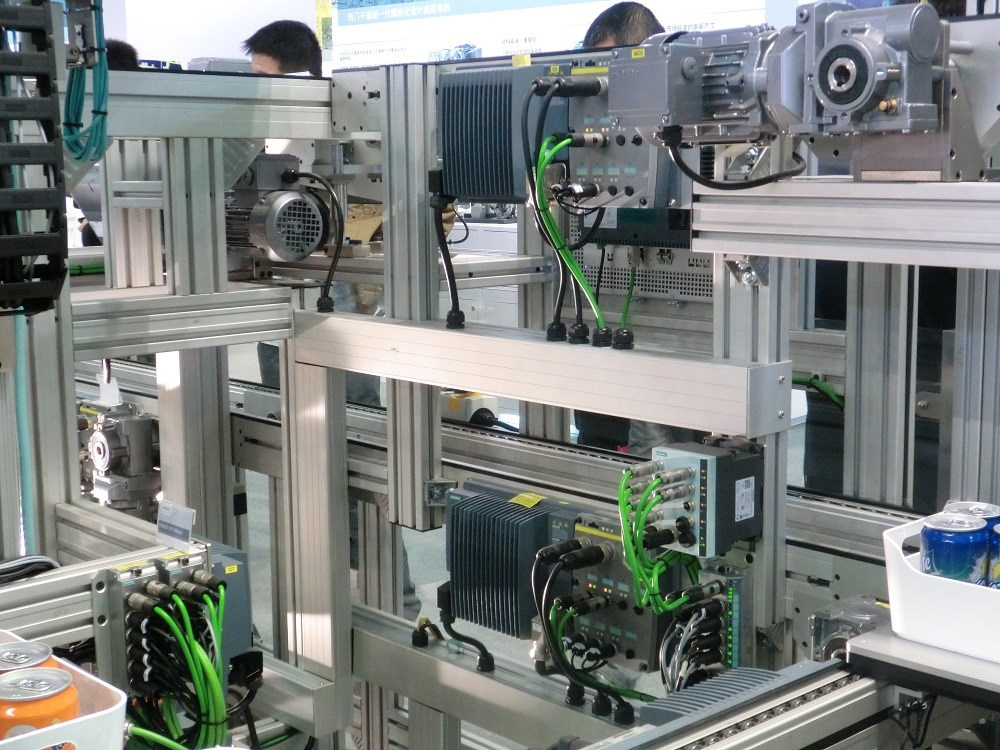

3.Applications

(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting

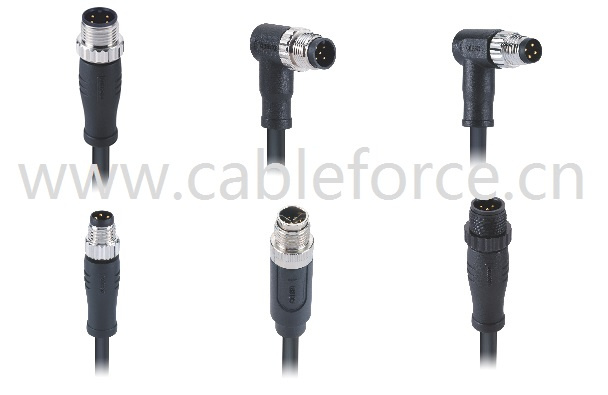

4.Similar product

5.Our product Certifications

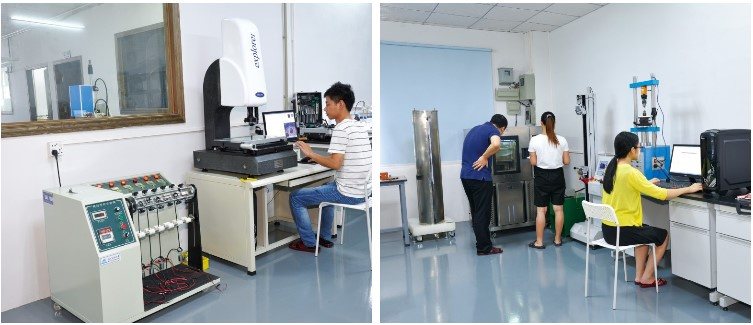

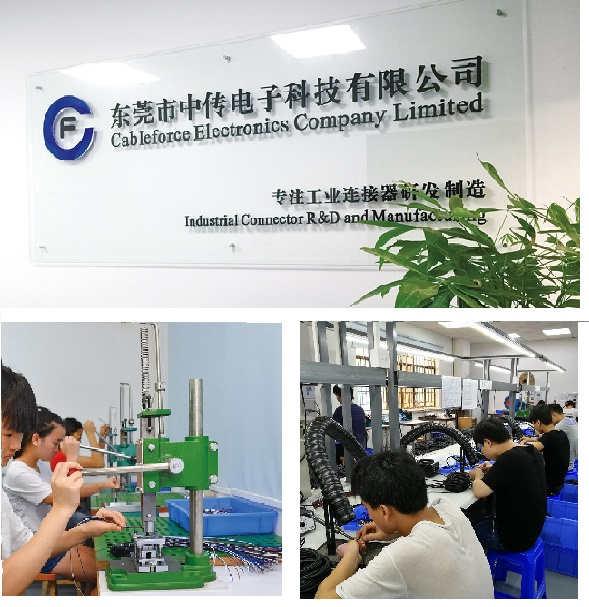

6.Our company information
Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

8.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Prod Model:	MC05C1RSG3AB34
Standard:	IEC 61076-2-101
Key Coding:	a-Coding
Connection Type:	Single Ended Cable

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
