M12 3pin Female Panel Mount Connector Front Fastened Waterproof Wire Connector

Name: M12 3pin Female Panel Mount Connector Front Fastened Waterproof Wire Connector
Brand: all-electronics-online.com
SKU: 827725595
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

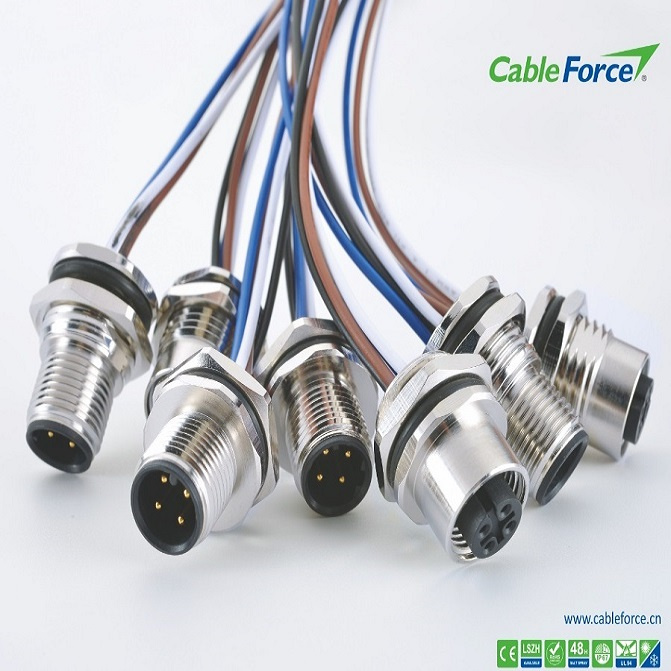

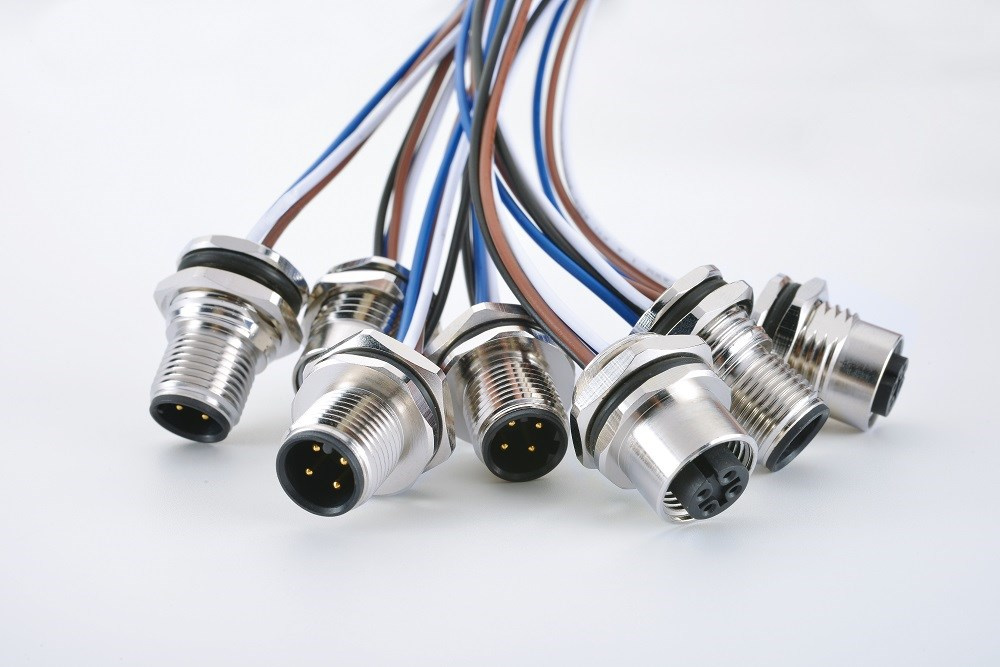

M12 3pin female panel mount connector front fastened waterproof wire connector

1.Product description

CABLEFORCE offers a complete line of M12 panel mount connector solutions for enclosure, panel and PCB applications. These M12 connectors are offered in both male and female versions and are rated to IP67. These connectors are designed for both front mounting and rear mounting with PG9 panel locking thread.
(1) 3, 4, 5, 8, 12 poles are available
(2) Operating voltage 250V-AC/ 60V/ 30V, current 4A / 1.5A
(3) Protection degree IP67
(4) Temperature range: -40°C ~ + 105°C
(5) UL94-V0 flame retardant degree
(6) Ground Pin available for option

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:NYLON66 + GF

Coupling nut/screw:Brass with nickel plated screw

Overmold/ Shell:Metal shell

Connector contacts:Brass with gold plated

Number of contacts	03 Pin	Coding	A-Code
Sealing	Epoxy resin	Gender	Female
Shielding	Non-Shielded	Orientation	Straight
Wire gauge	22AWG/0.34mm²	Rated current	4 A
Wire Termination	Soldering	Rated voltage	250 V

3.Applications

(1) Standard sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
(6) Industrial safety light curtain, light grid, switches
(7) Power supply
(8) Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
(9) LED display panel & outdoor LED lighting

4.Quality statement

(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) RoHS compliant.

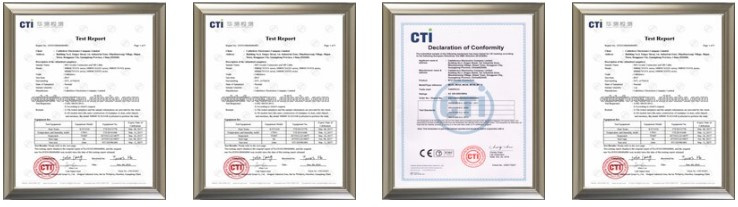

5.Our product Certifications

6.Our company
Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks .

8.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Prod Model:	MC03P2LSG3AB34
Standard:	IEC 61076-2-101
Key Coding:	a-Coding
Connection Type:	Panel Mount, Front Fastened

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
