Nmea2000 Cable Plug Drop Line Cable M12 Female Connector Circular Connector Waterproof Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Nmea2000 Cable Plug Drop Line Cable M12 Female Connector Circular Connector Waterproof Connector 1. DescriptionsThe NMEA 2000 Backbone Cable used in conjunction with T-Connectors, the backbone cables create the main communication path of NMEA 2000 network. A Backbone Cable extends the NMEA 2000 backbone to connect NMEA 2000 devices located in different places on the boat. The maximum Backbone Cable length is 100 meter ( 328ft) and mostly molded or assembled with Micro Connectors M12 Male/Female 5Pin connectors with PVC/PUR jacket cable with (22AWG*1Pair twisted with AL foil wrapped + 24AWG*1Pair twisted with AL wrapped ) + Drain wire + AL + Shielding braid. The cable length we can do it base on customer's request.
Overmold/ Shell: TPU
Connector contacts: Brass with gold plated
Coupling nut/screw:Plastic screw & housing| Standard | NMEA 2000 | Gender | female |
| Orientation | Straight | Coding | A-code |
| Sealing | O-ring | IP rating | IP67 |
| Wire termination | Soldering | Rated current | 4 A |
| Shielding | Non-shielded | Rated voltage | 60 V |
| | | |

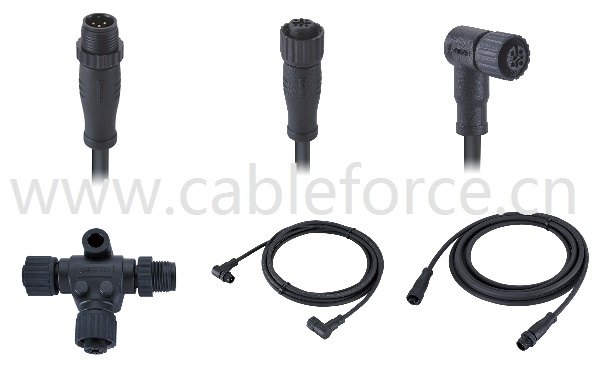

3. ApplicationsBuilding NMEA 2000 network or DeviceNet.4.Related product
(1) CABLEFORCE's screws and nuts are CNC machined parts, plastic version available for option.
(2) The male contacts pin CABLEFORCE used are machined solid pin.
(3) The female contacts socket CABLEFORCE use phosphor bronze material, also machined solid pin.
(3) Our standard thickness of contacts plating layer is 3μ" gold, we guaranteed 48hrs salt spray test.
(4) Temperature Range: Dynamic -25 ~ 80°C, Static: -40~80°C.
(5) Ingress Protection: IP67 degree and IP68 solution based on customer's specific requirement.
(6) ≥3000 times bending endurance: Bending angle ±90°, loading weight 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) CABLEFORCE's components and materials are RoHS compliant.

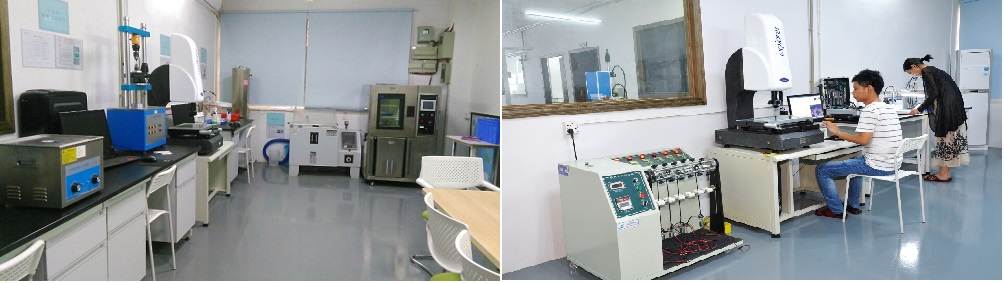

7.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

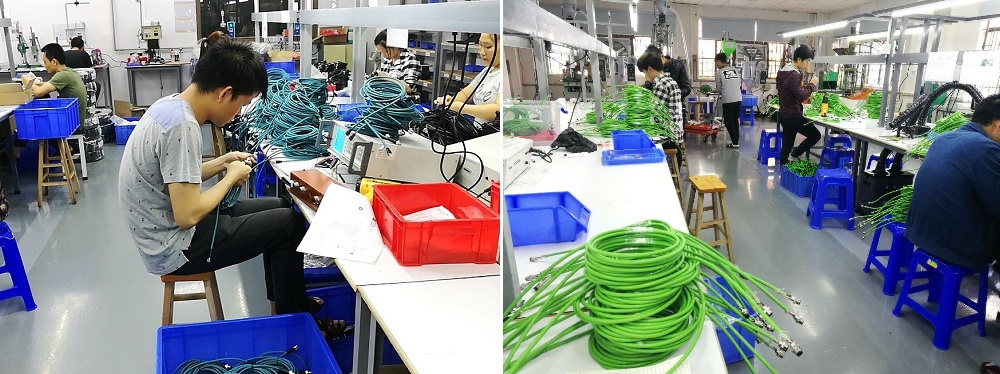

Workshop
8. Product packaging(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available(4) Delivery: 1~ 3 weeks
9.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-15 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
| Prod Model: |
N2K-MC05C2LSG3BP34 |
| Standard: |
Nmea 2000 |
| Key Coding: |
B-Coding |
| Number Of Pins: |
5 Pin |
| Connection Type: |
Single Ended Cable |

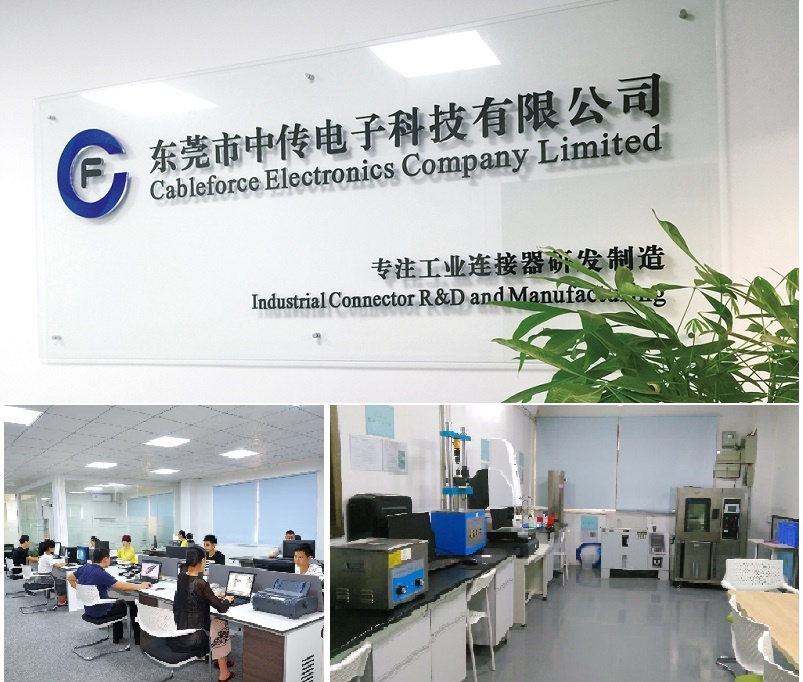

Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
