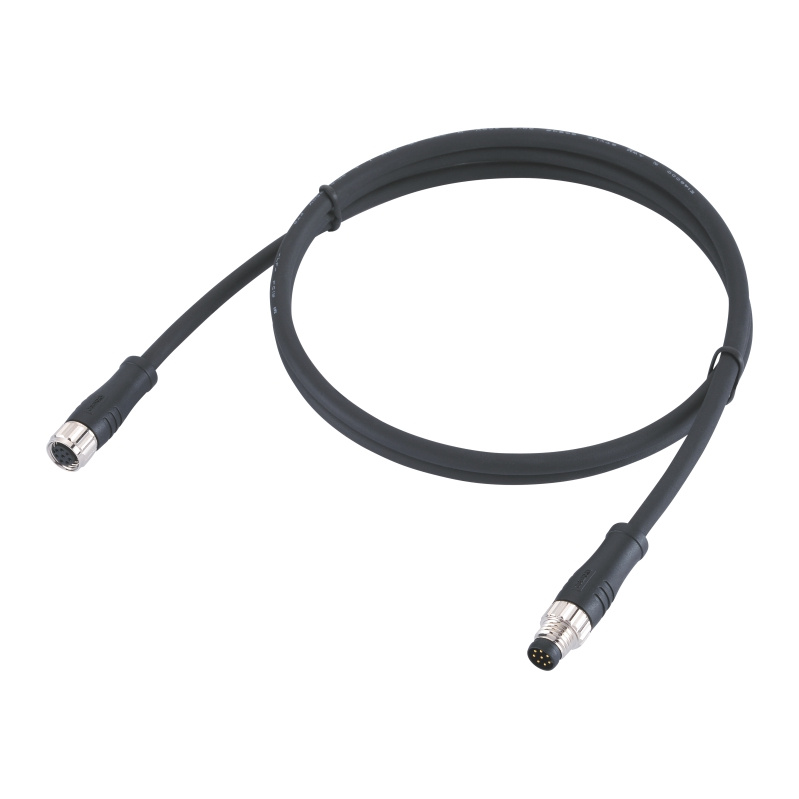

8pin M8 Male Straight Cable Connector for Sensor and Actuators with Ce Certification

1.Product description

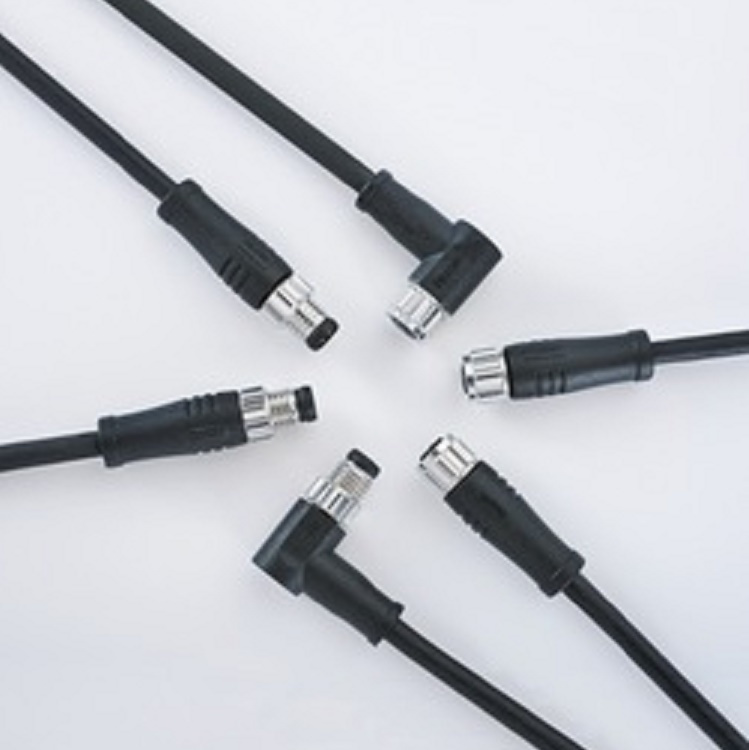

The M8 connector is designed for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. It provides with 3, 4, 5, 6, 8 contacts configuration cable cordsets and panel receptacles, most of the connectors are either factory PUR/PVC cable overmolded or supplied with attached wire leads. 360°EMC shielding is available as option. With 8mm threaded joint, quick and easy mating and locking, even in places difficult to reach, anti vibration locking design.

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated screw

Overmold/ Shell:TPU

Connector contacts:Brass with gold plated

Wire insulation:PVC

Cable gland/Outlet	PG7 (3 ~ 5mm)	Coding	A-Code
Sealing	O-ring	IP rating	IP67
Shielding	Non-Shielded	Orientation	Straight
Wire gauge	26AWG/0.14mm²	Rated current	1 A
Wire Termination	Soldering	Rated voltage	30 V

3.Applications

(1) Sensor and actuators;

(2) Industrial camera;
(3) Industrial I/O connections;
(4) Material handling;
(5) Pharmaceutical manufacturing;
(6) Robotic systems; Semiconductors;
(7) Packaging, Labeling & Logistic.

4.Our product Certifications

5.Quality statement

(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
(7) RoHS compliant.

6.Company information

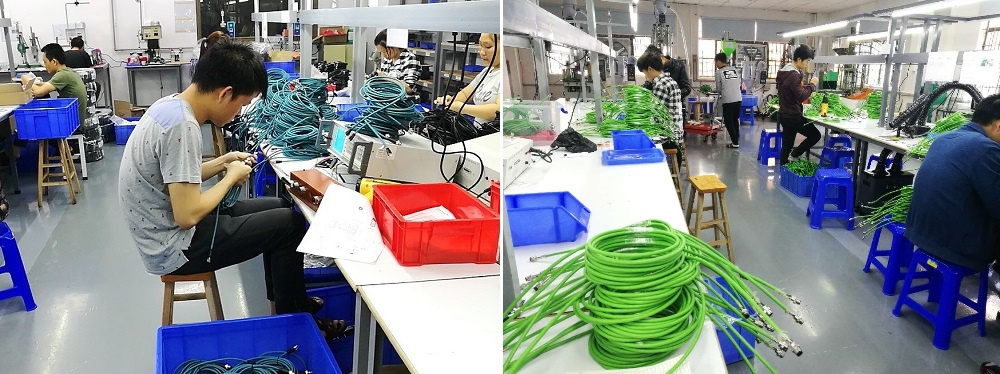

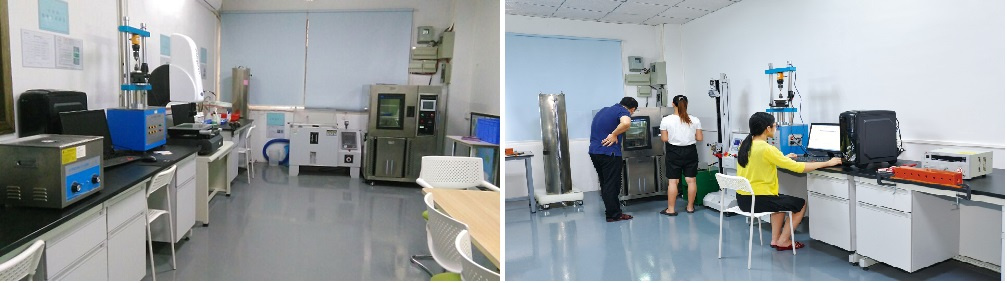

Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available

8.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-15 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Prod Model:	MB08C3LSG3AB14
Standard:	IEC 61076-2-104
Number Of Contacts:	8 Pin
Connection Type:	Single Ended Cable

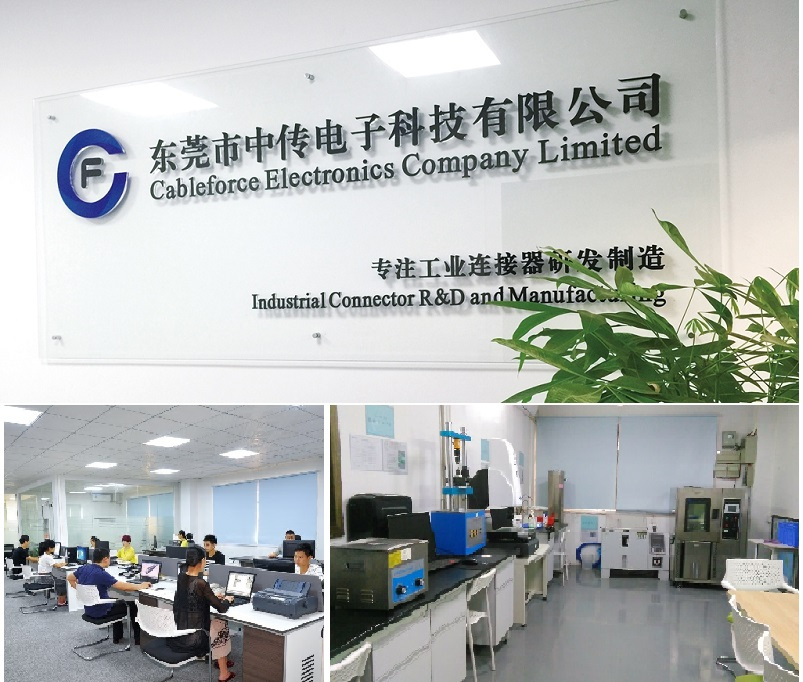

Company Profile
