Magnetic Door Contact / Magnetic Sensor/ Door Sensor

Name: Magnetic Door Contact / Magnetic Sensor/ Door Sensor
Brand: all-electronics-online.com
SKU: 702573432
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 0.50-0.75/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

BR-1012 series recessed magnetic contact switches
* 3/8" diameter Super miniature Stubby switch
* press to fit
* Standard 18"#24AWG Leads
* Swith or Magnet are available seperately
* long leads upon request
*Wide gap with 3/8" x 1/2' rare earth magnet(BR1012TWG)
* Colors:white , brown, grey

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1012	Closed	N/O	3/4(19)	0.8(20)	0.150	10	100	0.5
BR1012WG	Closed	N/O	1 1/4(32)	1.45(37)	0.150	10	100	0.5
BR-1012WGL	Closed	N/O	1 1/8(28)	1.1(28)	0.150	10	100	0.5
BR-1012MN2550	Closed	N/O	3/4(20)	0.9(23)	0.150	10	100	0.5

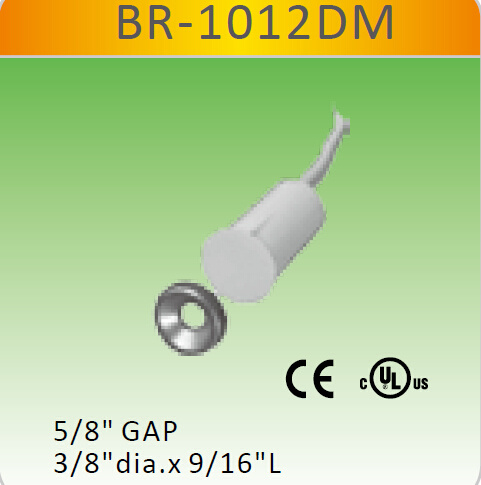

BR-1012DM	Closed	N/O	5/8(16)	0.75(19)	0.150	10	100	0.5

Prod Model:	BR-1012DM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire:	18"#24AWG Leads
Color:	White Brown Grey
Diameter:	3/8 Inches
Standard:	Standard
Certification:	UL
Type:	Wired Magnetic Sensor
Wires:	2-Wire or 3-Wire
Application:	Door or Window

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
