Magnetostrictive Linear Movement Capacitive Pickup Sensor for Distributors

Name: Magnetostrictive Linear Movement Capacitive Pickup Sensor for Distributors
Brand: all-electronics-online.com
SKU: 827316465
Availability: InStock
Rating: 4.7 (100 reviews)

Price:	US $ 280-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Magnetostrictive Linear Movement Capacitive Pickup Sensor for Distributors

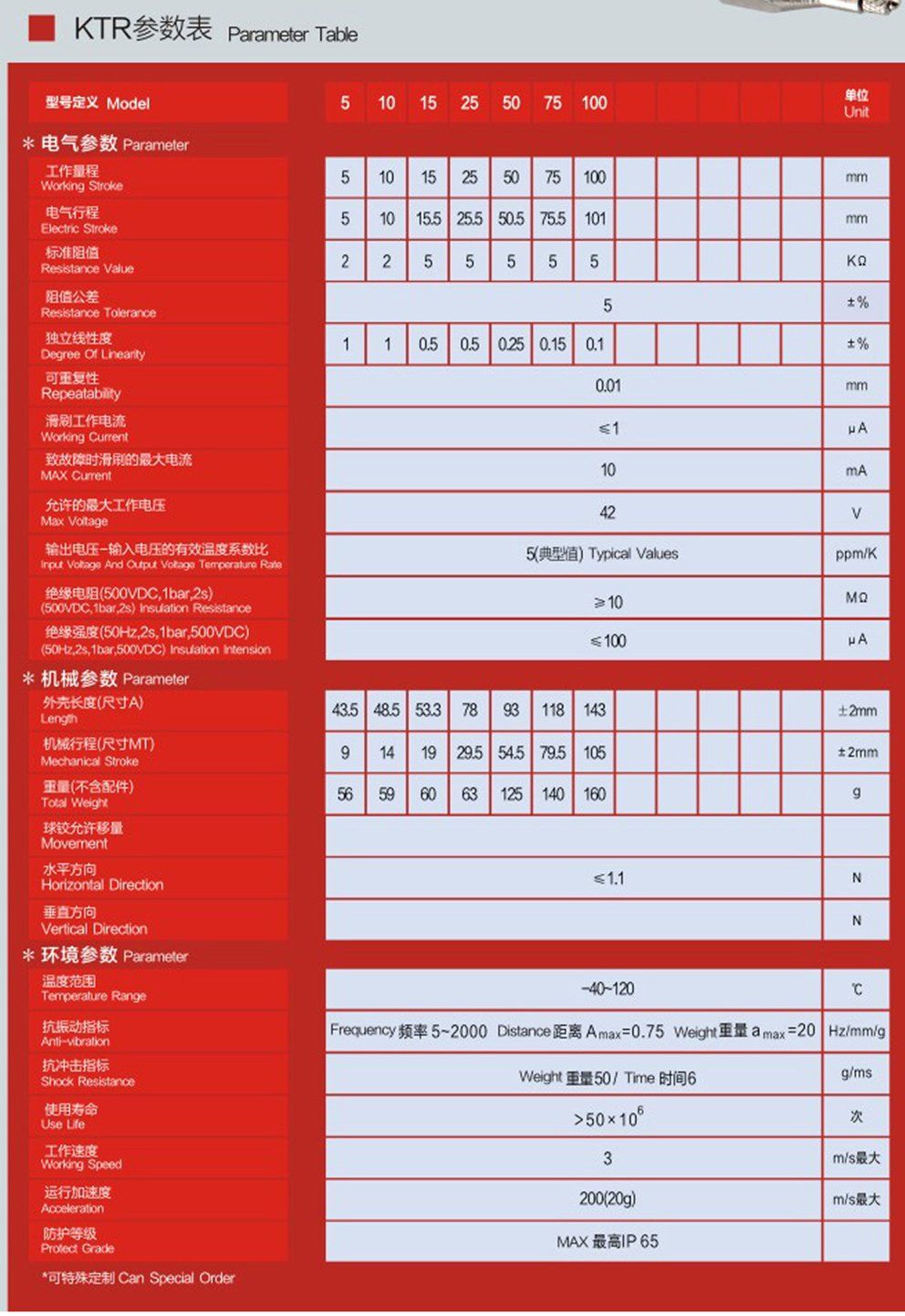

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction
mm	m/s	μA	mm	ºC	N
0.01	3	≤1	5-100	-40~120	≤1.1

KTR is a self-recovery, is the minimum size of the miniaturization of structures, particularly suitable for small occasions, top putters do not need to install without having to

Product feature:
Volume smaller
Usage life is longer, Times could reach fifty million
Sensor with back spring
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Din standard contact point
Double bearing type bar
Don't affect with an external impact and vibration
Cable type connection
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

General KTR miniature self-recovery series of linear displacement transducer, the effective stroke 5mm ~ 100mm, 2mm at both ends buffer stroke, precision 1% ~ 0.15% FS. Shell surface, anodizing, corrosion resistant; built-in conductive plastic measuring unit, no temperature drift, long life; with automatic electrical grounding function. Sealing rating of IP65, have a direct outlet and five-pin plug socket out two options, it can be applied in most common situations, especially for small installation space for the occasion; top putter no installation, no alignment, pushing angle 90 ± 3 °, allow pushing the limit velocity of 3m / s.

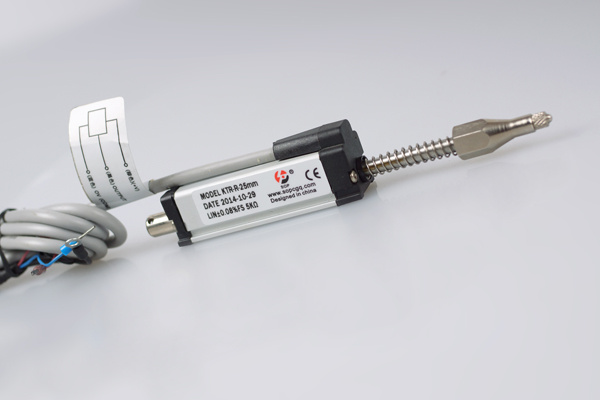

Prod Model:	KTR-25mm
Feature:	Volume Smaller
Application:	Springback Displacement Sensor
Repeatability:	0.01mm
Working Stroke:	5-100mm
Environment:	Humid, Oily, Dusty
Material:	Aluminum Alloy
