Materials Testing Apparatus AC Lvdt Spring-Loaded Sensor Price

Name: Materials Testing Apparatus AC Lvdt Spring-Loaded Sensor Price
Brand: all-electronics-online.com
SKU: 827814615
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	US $ 120-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

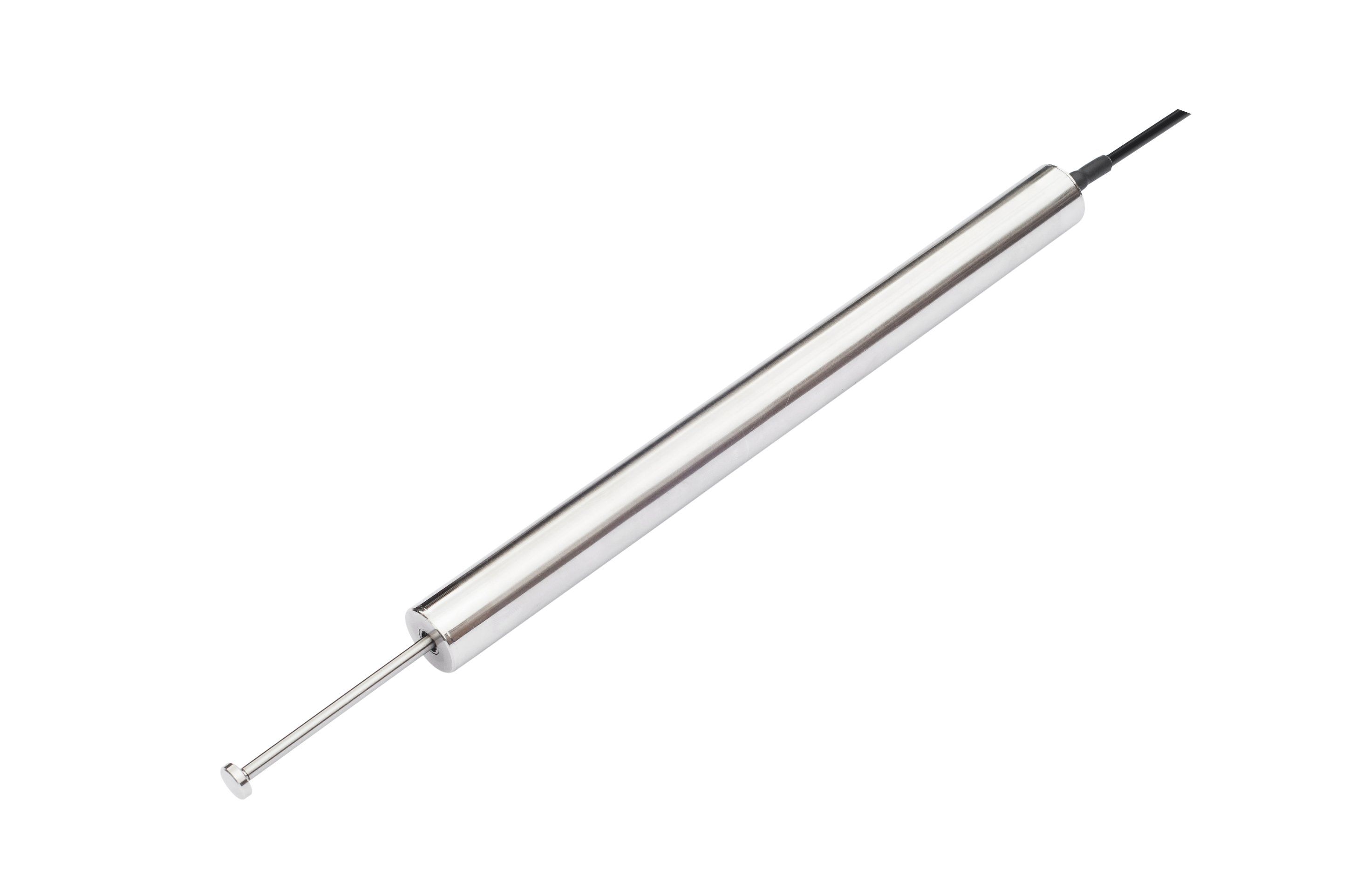

Materials Testing Apparatus Ac LVDT Spring-loaded Sensor Price

SDVB20 sesies Spring-loaded parameter:

Input voltage	9-28V DC
Input current	input current ≤12mA(Voltage output type)
Input current	input current 4-20mA(current output type)
Measuring range(mm)	2.5,5,10,15,25,50,100
Output signal	0-5V( 9-28V DC input voltage )
	0-10V(15-28V DC input voltage )
	4-20mA(15-28V DC input voltage)
	RTU-RS485 Digital output (9-28V DC input voltage)
Linearity error	±0.25%
Repeat error	≤0.01%of FS
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Null poit ≤0.01%/°C
Temperature coefficient	sensibility≤0.025%/°C

LVDT is widely applied in Aerospace, Machinery, Construction, Textile, Railway way,Coal mine, Metallurgy, Plastic, Chemical industry and Academic research,which is used to measure the distance, vibration,thickness, expansion and so on.
DC-Operated LVDT performs excellently by 9-28 voltage DC power supply,suit able for high precision and high repeatability measurement, output standard signal 0-5v or 4-20mA to be identified by computer or PLC. We also provide digital output.
The integrated circuit is hermetically sealed in SUS 304 stainless steel sleeve, which can ensure the transducers worksaccurately and reliably in hostile environment such as damp and dust, corrosion, etc.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	SDVB20
Dymatic Characteristics:	Max 10Hz
Power Supply:	AC
Application:	Materials Testing Apparatus
Output:	Digital or Anolog
Repetitive Error:	Less 0.01% of Fs
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
