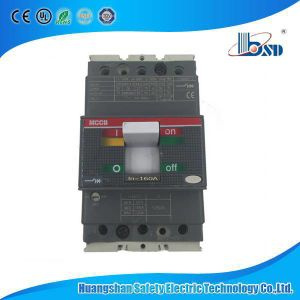

MCCB (Moulded case circuit breaker) ABS/Abe Circuit Breaker

Name: MCCB (Moulded case circuit breaker) ABS/Abe Circuit Breaker
Brand: all-electronics-online.com
SKU: 838042015
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 7.9-85.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description
ABS/ABE SERIES MCCB

1.Application

ABE/ABS series MCCB is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

2.Specification

Type	2pole	ABE-32b	ABE-52b	ABS-52b	ABE-62b	ABS-62b
Type	3pole	ABS-33b	ABE-53b	ABS-53b	ABE-63b	ABS-63b
Frame size(AF)		30	50		60
Rated operational voltage(V)Ue (50/60Hz)		600	600	600	600	600
Rated insulation voltage(V)Ui(50/60Hz)		690	690	690	900	900
Rated impulse withstand voltage(KV)Uimp		6	6	6	6	6
Uitimate breaking capacity (KA,Icu AC 50/60Hz)	220V/240V	10	10	25	10	25
	380V	7.5/5	7.5/5	14/10	7.5/5	14/10
	415V	7.5/5	7.5/5	14/10	7.5/5	14/10
	440/460V	5	5	10	5	10
	480/500V	2.5	2.5	7.5	2.5	7.5
	600V	2.5	2.5	5	2.5	5
Utilisation category		A	A	A	A	A
Endurance	Mechanical	8500	8500	8500	8500	8500
Endurance	Electrical	1500	1500	1500	1500	1500

Type	2pole	ABE-102b	ABS-102b	ABE-203b	ABS-203b	ABE-403b	ABS-403b
	3pole	ABE-103b	ABS-103b
Frame size(AF)		100		225		400
Rated operational voltage(V)Ue (50/60Hz)		600
Rated insulation voltage(V)Ui(50/60Hz)		690

Prod Model:	abs
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
