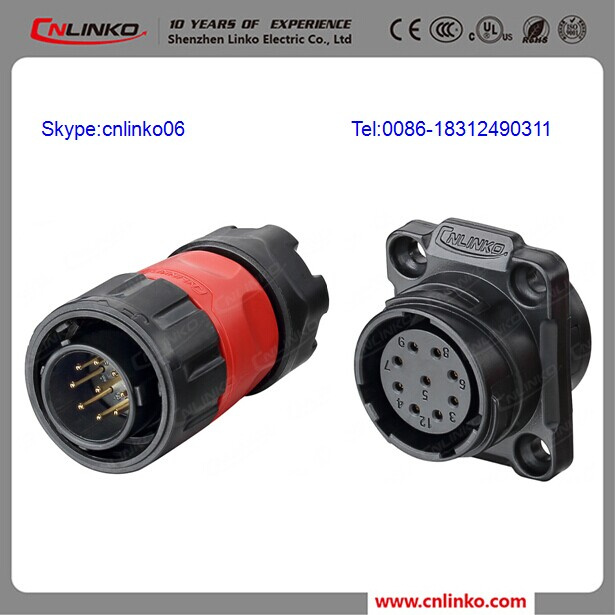

Multi Pin Plug Sockets 9 Pin Connector Cable
YM Series Product Description:
YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.
1:Multi-pins(2-12 PINGS) for varies industrial demands
2:PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
3:Gold-plated contact, high performance of corrosion resistance and electrical
4:Conductivity effectively deal with temperature rise.
5:1/4 mount connector, easy operation and installation
6:Dustproof cover design under off-working condition
7:Rated current is 12A rms
8:Protection level:IP65/67
Specifications:
Connecting mode | 1/4 bayonet connect |
| Protection level | IP65/67 |
| Cable specification | 0.15mm ² ~ 0.2mm ² /26~24AWG |
| Diameter range | Φ7mm ~Φ9mm |
| Contact diameter ×Qty | Φ1.0x9 |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Temperature rise | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
| Color | Red |
| Protective housing | PBT Material |
| Install method | 1/4 Quick bayonet |
| Material |
|
| Shell&Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Assembly wire | Solder |
| Copper needles | Copper alloy(gold-plated) |
| Waterproof | Silica gel |
Packaging & Shipping
Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.
