| Prod Model: |
GNC40 |
| Type: |
Ni-CD Battery |
| Usage: |
Engine Starting |
| Nominal Voltage: |
1.2V |
| Discharge Rate: |
Ultrahigh Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Heng Ming Ni-Cd Batteries
The broadest capability in the world.
HengMing have over 30 years' experiences in the development and manufacture of pocket and sintered plate batteries.
Today, we offer the widest range of high quality nickel-cadmium batteries available throughout the world, our nickel-cadmium batteries have been exported to many countries and welcomed by end users.KPX type (ultra high rate cells)

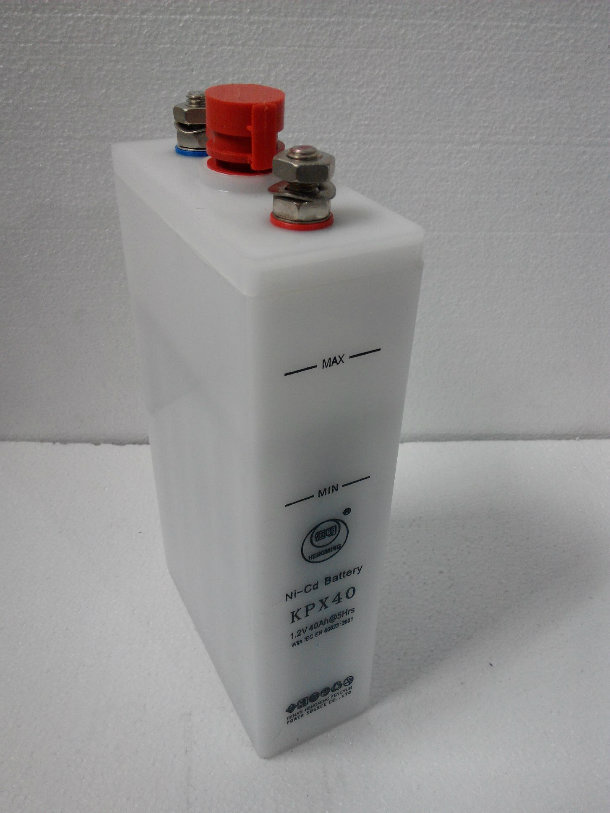

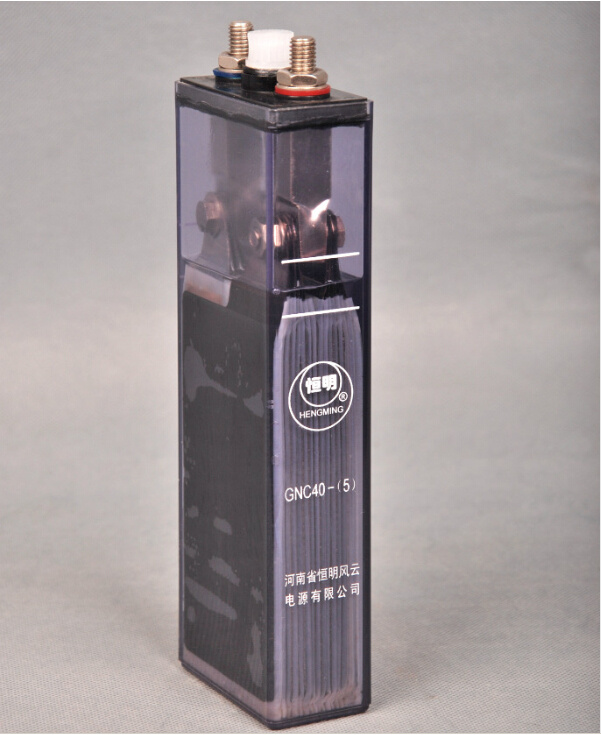

KPX series very high rate nickel cadmium battery which made of sintered plate is characterized by compact construction, low internal resistance, high reliability, high capacity, long service life and excellent low temperature performanceBasic technical specification: 1.Cell type: GNC40=KPX40 2.Nominal voltage: 1.2V 3.Rated capacity: 40Ah 4.Dimension: 81x43x266mm 5.Thread of pole: M10 6.Weight (filled): 1.85kg 7.Electrolyte volume: 0.2L 8.Container material: PP/ABS 9.Terminal material: nickel-clad steel 10.Accessory: dust cover, connector, battery terminal, solid electrolyte (KOH flakes and LiOH powder)Advantages of Hengming Ni-Cd batteries: 1.Have packing room, welding room, assembling room, heating room, production room and more 2.Wide operating temperature range from -25°C to 50°C 3.Long service lifespan more than 20 years
4.Excellent charging efficiency and smooth discharge voltage
5.High resistance to mechanical and electrical abuse 6.Plastic material is produced by our own factory
7.Low maintenance cost and replacement cost
8.Excellent sales man and engineers 9.Fastest delivery time

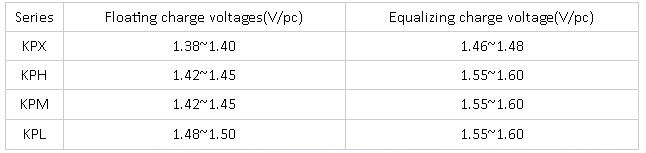

10.We have own factory, over 30 years export experiences for nicd batteryCycle life: One cycle means a cell is fully charged and discharged The cell's cycle life should not be less than 900 cycle According to the applicable IEC standard, it should be 500 cycles at least, in case of float charge application, its cycle life may be longerNi-Cd alkaline storage batteries usually charge with constant current and charge 8 hours with 0.2C5A.Floating charge also can be used, and the floating charge voltage of different series as follow:
Cell Capacity and Dimensions| KPX=GNC(Ultra High Rate Type) Sintered----Sintered |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GNC5 | 1.2 | 5 | 81 | 26 | 163 | M8 | 0.51 | 0.05 | ABS |
| GNC10 | 1.2 | 10 | 81 | 26 | 163 | M8 | 0.62 | 0.06 | ABS |
| GNC10-(2) | 1.2 | 10 | 81 | 34 | 245 | M10 | 1.1 | 0.13 | ABS |
| GNC20 | 1.2 | 20 | 81 | 34 | 245 | M10 | 1.25 | 0.12 | ABS |
| GNC20-(2) | 1.2 | 20 | 138 | 61 | 266 | M10 | 2.8 | 0.5 | ABS/PP |
| GNC20-(3) | 1.2 | 20 | 81 | 43 | 266 | M10 | 1.7 | 0.2 | ABS/PP |
| GNC30 | 1.2 | 30 | 81 | 43 | 266 | M10 | 1.75 | 0.2 | ABS/PP |
| GNC30-(2) | 1.2 | 30 | 138 | 61 | 266 | M10 | 3 | 0.5 | ABS/PP |
| GNC40 | 1.2 | 40 | 81 | 43 | 266 | M10 | 1.85 | 0.2 | ABS/PP |
| GNC40-(2) | 1.2 | 40 | 80 | 35 | 235 | M10 | 1.5 | 0.16 | Nylon |
| GNC40-(3) | 1.2 | 40 | 138 | 61 | 266 | M10 | 3.3 | 0.5 | ABS/PP |
| GNC40-(4) | 1.2 | 40 | 100 | 85 | 138 | M10 | 1.6 | 0.2 | ABS |
| GNC50 | 1.2 | 50 | 81 | 50 | 266 | M10 | 2.14 | 0.25 | ABS |
| GNC50-(2) | 1.2 | 50 | 138 | 61 | 266 | M16 | 3.5 | 0.5 | ABS/PP |
| GNC60 | 1.2 | 60 | 81 | 50 | 266 | M10 | 2.2 | 0.24 | ABS |
| GNC60-(2) | 1.2 | 60 | 138 | 61 | 266 | M16 | 3.8 | 0.5 | ABS/PP |
| GNC70 | 1.2 | 70 | 138 | 61 | 266 | M16 | 4 | 0.4 | ABS/PP |
| GNC80 | 1.2 | 80 | 138 | 61 | 266 | M16 | 4.2 | 0.4 | ABS/PP |
| GNC80-(2) | 1.2 | 80 | 86 | 86 | 276 | M10 | 3.6 | 0.45 | PP |
| GNC80-(3) | 1.2 | 80 | 86 | 86 | 305 | M10 | 3.8 | 0.6 | PP |
| GNC90 | 1.2 | 90 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100 | 1.2 | 100 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100-(2) | 1.2 | 100 | 148 | 78 | 196 | M16 | 4.3 | 0.25 | ABS |
| GNC100-(3) | 1.2 | 100 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC110 | 1.2 | 110 | 138 | 61 | 266 | M16 | 4.5 | 0.4 | ABS/PP |
| GNC110-(2) | 1.2 | 110 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC120 | 1.2 | 120 | 138 | 61 | 266 | M16 | 4.6 | 0.35 | ABS/PP |
| GNC120-(2) | 1.2 | 120 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC130 | 1.2 | 130 | 139 | 79 | 295 | M16 | 5.6 | 1.4 | ABS |
| GNC140 | 1.2 | 140 | 165 | 105 | 350 | M20 | 9.5 | 1.9 | ABS/PP |
| GNC140-(2) | 1.2 | 140 | 139 | 79 | 362 | M16 | 9 | 1.7 | ABS/PP |
| GNC140-(3) | 1.2 | 140 | 139 | 79 | 295 | M16 | 6 | 1.3 | ABS |
| GNC150 | 1.2 | 150 | 165 | 105 | 350 | M20 | 9.5 | 1.8 | ABS/PP |
| GNC150-(2) | 1.2 | 150 | 139 | 79 | 362 | M16 | 9.3 | 1.6 | ABS/PP |
| GNC150-(3) | 1.2 | 150 | 139 | 79 | 295 | M16 | 6 | 1.2 | ABS |
| GNC160 | 1.2 | 160 | 165 | 105 | 350 | M20 | 9.5 | 1.75 | ABS/PP |
| GNC160-(2) | 1.2 | 160 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC160-(3) | 1.2 | 160 | 139 | 79 | 295 | M16 | 6.5 | 1.5 | ABS |
| GNC170 | 1.2 | 170 | 165 | 105 | 350 | M20 | 9.5 | 1.7 | ABS/PP |
| GNC170-(2) | 1.2 | 170 | 139 | 79 | 295 | M16 | 6.7 | 1.5 | ABS |
| GNC170-(3) | 1.2 | 170 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC190 | 1.2 | 190 | 165 | 105 | 350 | M20 | 9.9 | 1.7 | ABS/PP |
| GNC210 | 1.2 | 210 | 165 | 105 | 350 | M20 | 10.5 | 1.6 | ABS/PP |
| GNC230 | 1.2 | 230 | 167 | 162 | 343 | M16 | 13 | 2.8 | ABS/PP |
| GNC230-(2) | 1.2 | 230 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |
| GNC250 | 1.2 | 250 | 167 | 162 | 343 | M16 | 13 | 2.6 | ABS/PP |
| GNC250-(2) | 1.2 | 250 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |

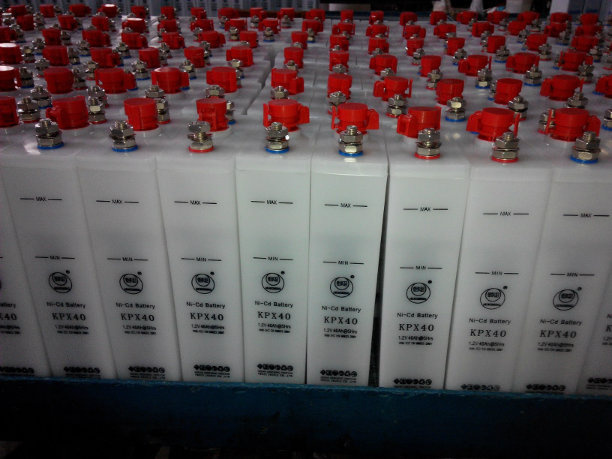

Photos
Application:
KPX sinter plate battery(Ultra high discharge rate cells) are widely used for the engine starting power of diesel locomotives, railway, UPS systems, AGV, light truck trains, DC cabinet, distribution cabinet, civil aviation and aircraft.
The HengMing Cell range meet, exceed the requirement of IEC60623 standard.
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.

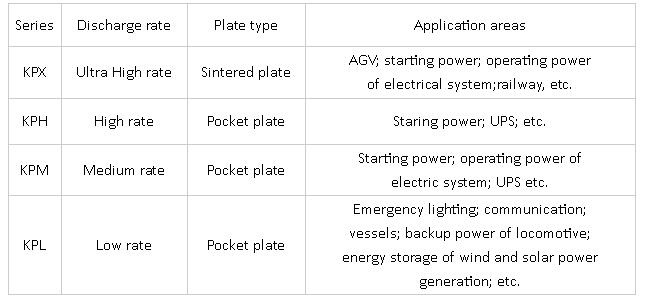

We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
