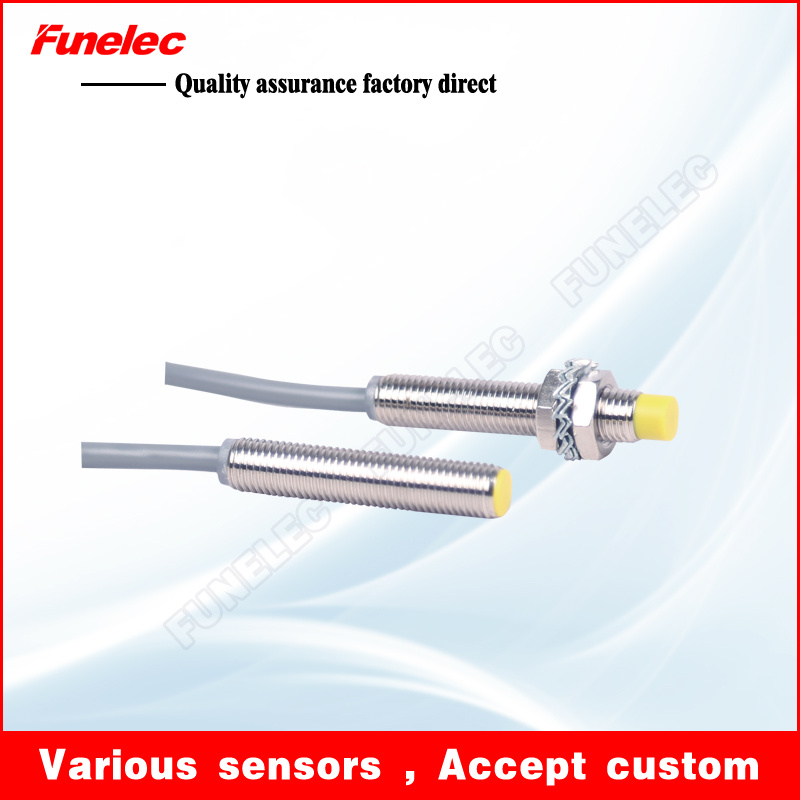

NPN PNP Type Inductive Proximity Sensor Switch Waterproof Light Rod

Name: NPN PNP Type Inductive Proximity Sensor Switch Waterproof Light Rod
Brand: all-electronics-online.com
SKU: 839366545
Availability: InStock
Rating: 4.8 (63 reviews)

Price:	US $ 1-1.1/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Packaging & Delivery
Packaging Details
Inner box and outer carton
Delivery Time
Generally 1~3 days if in stock, 5~7 days if not in stock

npn PNP type inductive proximity sensor switch waterproof Light rod
Series Proximity Sensor/ inductive proximity switch

Features
---Multiple outlook cylindrical, square shape optional
---High Pressure resistant version is optional
---Extended temperature range -40-150C
---High switching frequency
---AC 2-wire, 20…250 VAC or DC 2-wire, 10…30 VDC optional
---NO contact,no abrasion or damage to the object.
---Long service life
---Suitable for use in locations where water or oil is used,not affected by color
---Multiple connection method

Mounting	Flush
SN	0.6mm
Power supply	10-36V DC
Housing size	M4*25
Thread size	M40.525
Output	NPN/PNP NO/NC
Temperature drift	≤±10%
Hysteresis	1-20%
Repeat accuracy	≤5%
Load current	≤100mA
Residual voltage	≤2.5V
Consumption current	≤10mA
Protection circuit	surge, overload, short-circuit, reverse polarity
Indicator	Yellow LED
Ambient temp.	-25 ~ 70ºC
Ambient RH	35-95%
Frequency	2000Hz
Protection degree	IP67
Housing material	Nickel-copper Alloy
Connection	PVC Cable 2m

M4/J4 NPN/PNP No Inductive Proximity Sensor Switch

Prod Model:	FNQ4
HS Code:	9033000000
Input Voltage:	DC10-30V
Working Temperature:	-25°c~+70°c
Warranty:	12 Months
Certificate:	Ce,ISO9001
Output:	Switching Transducer

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
