Optical Duplex Patch Cord for CATV & LAN&Opitcal Fiber Communication Systems
Price: |
Negotiable/Piece |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Optical Fiber Patch Cord |
Insertion Loss: |
Max 0.3dB |
Return Loss: |
Min 65 dB |

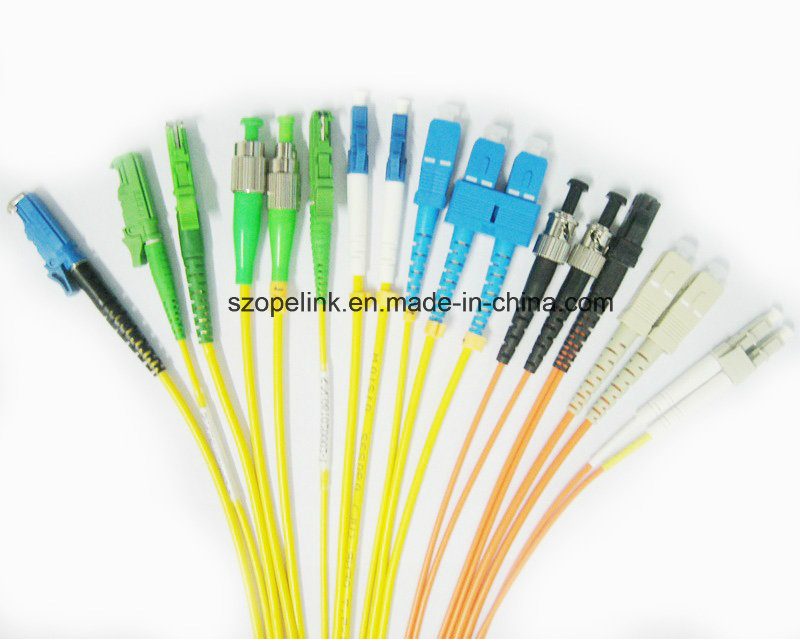

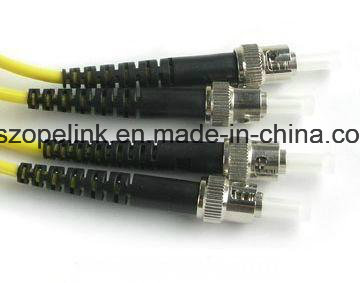

Connector: |
Sc,FC,St,LC.... |
Application: |
Communication |
Type: |
Single-mode Fiber |
Connection Structure: |
SC |
Certification: |
CCC |
Product Description

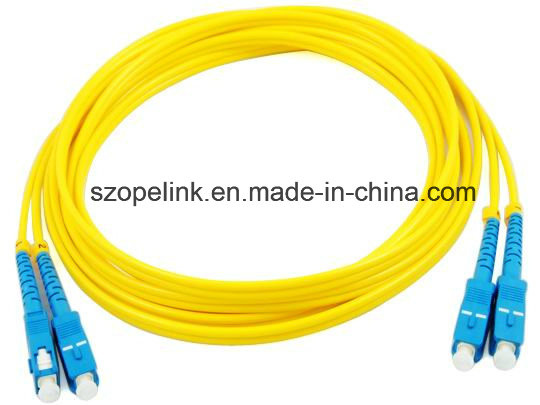

Optical Patch Cord Duplex
Low Insertion Loss Optical Fiber Cable Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE
Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test EquipmentSpecifications:
ITEM | Patchcord |
Polishing Type | UPC | APC |
I.L | <=0.3dB,MTRJ<=0.5dB | <=0.3dB |
R.L | >=55dB,MTRJ>=30dB | >=65dB |
Operating temperature | -20ºC~75ºC |
Storage Temp-erature | -40ºC~75ºC |
100 mating cycles loss | I.L changed≤0.1dB |
Durability | >1000 cycles |
Ordering information: Type | Fiber Core | Cable Type | Cable OD | Cable Material | Cable Color | Connector (A End -B End) | Patchcord Length |

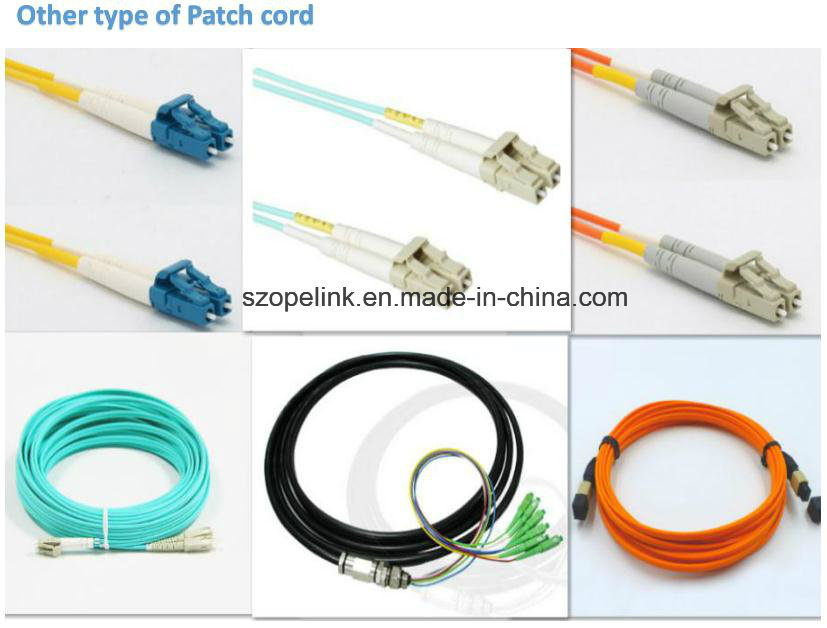

PT=Patchcord PY=Pigtail | S1=G652D S2= G657A1 M1=50/125 M2=62.5/125 M3=OM3 M4=OM4 XX=other | 01=simplex 02=Duplex 03=Armoured 04=Distribution 05=Ribbon 06=breakout XX=other | 01=OD 0.9mm 02=OD 2.0mm 03=OD 3.0mm XX=other | 1=PVC(R) 2=PVC(P) 2=LSZH | 01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12Color XX=other | 01=SC 02=FC 03=ST 04=LC 05= E2000 06=SC/APC (Cone Type) 07= SC/APC (Step Type) 08= FC/APC (Cone Type ) 09= FC/APC (Step Type) 10=LC/APC 11=E2000/APC 12=MTRJ 13=MPO/PC 14=MPO/APC 15=D4 16=DIN 17=LX5 18=FDDI 00=None XX=other | 005=0.5m 010=1.0m 020=0.2m 025=2.5m XXX=other |
----------------------------------------------------FAQ---------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is
negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost
effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
