Outdoor Waterproof Split Core Current Transformer IP67

Outdoor Waterproof Split Core Current Transformer IP67
Price: US $ 1-90/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

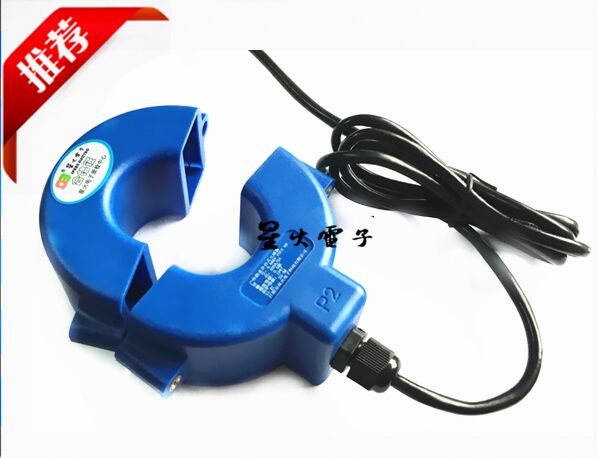

FSCT-36 Outdoor Waterproof Split Core Current Transformer

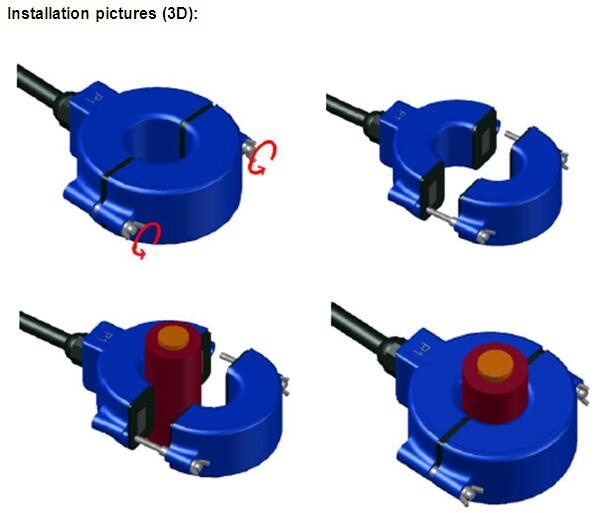

FSCT-36 Outdoor Waterproof current transformer is built with silicone steel core and is potted for outdoor use.  In addition, it is designed for easy installation on ground potential conductors.


Description:

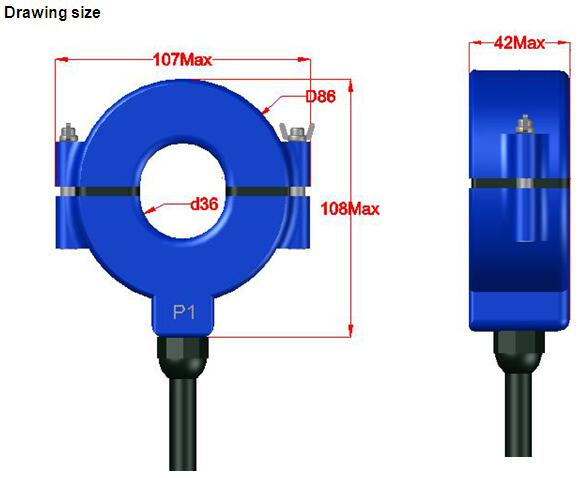

Window size : 36 mm
Operation Condition: Outdoor
Usage: Measurement
Insulating Medium: Common Insulating Materials
Accuracy: 0.5-1%
Standards: GB20840; IEC 61869
Safety Factor Rating :< 10
Rated Frequency: 50Hz or 60Hz
Environment: Outdoor
Rated Secondary Current: 5A or 1A
Secondary Winding Power Frequency Withst: 3kv/1min
Certificates:Waterproof certificate
Phase: Single
Export Markets: Global

ModelWSCT-60
ModelFSCT-36
Window size36mm
Rated primary current100-800 Arms
Rated output5A/1A
IP ratingIP 67
Burden1.5VA -5VA
Max current800 Arms
Turns100-3000T
Accuracy class0.5, 1.0
Equipment maximum voltage0.66/0.72KV
Wire lead2*2.5mm2 sheathed wire
Insulation strength3KVac/min
Insulation impedanceDC500V/100MΩ
Rated frequency50-400HZ
Working temperature-25ºC~70ºC
Storage temperature-30ºC~80ºC


Applications:

Power quality monitoring
. Power instrument and meter
. Distributed measurement systems
.  Measurement of current of power supply equipment below 10KV
. Microcomputer protection






Prod Model: FSCT-36
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Fsct-36
Output: 1A or 5A
Certificates: IP 67 ,Ce RoHS
Application: Lighting
Phase: Single
Type: Split Core Current Transformer
