Panel Mount IP65 Waterproof RJ45 Connector for LED Display

Name: Panel Mount IP65 Waterproof RJ45 Connector for LED Display
Brand: all-electronics-online.com
SKU: 798319985
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 2.5-3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

panel mount IP65 waterproof rj45 connector for led display

rj45 connector has been widely used in:
1: LED display screen
2: communication system
3: signal control system
4: panel mount rj45

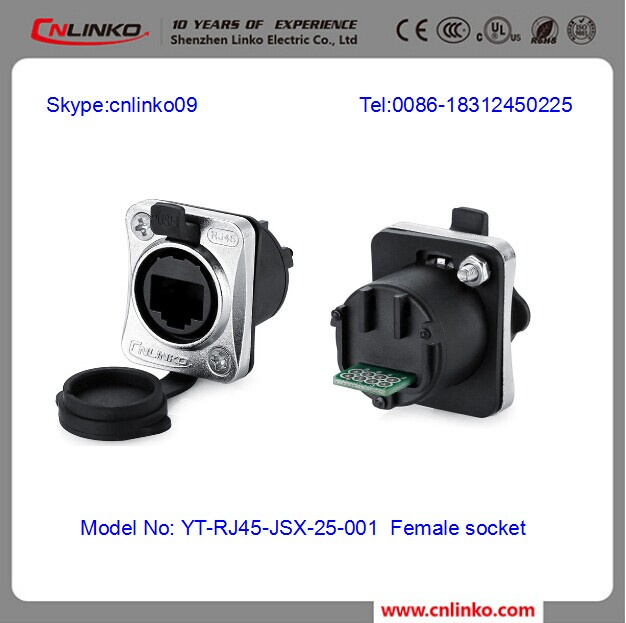

Model No.: YT-RJ45-JSX-25-001 Dual rj45 socket
Data Sheet:
Cable Specification: 0.15mm2 ~ 0.2 mm2 /26~24 AWG
Diameter Range: Φ5.5mm ~Φ7mm
Contact Diameter x number:8p8c
Rated Current (A): 1.5A
Operating voltage(AC.V.rms): 1000V
Contact resistance: <30mΩ
Insulation resistance:>500mΩ
Protection Level: IP65/67
Durability:≥500 times plug in /out
Working Temperature:-40°C~80°C
Connecting mode: 1/4 bayonet connecting
Housing&Insulation parts materials: High-performance engineering plastics
with silica gel materials waterproof cap
UL94-V0 Flammability

Contact Information:
Eunice Tan(sales manager)

H.P: +86-15013650758

Packaging & Payment term & Shippment
Packaging: 10pcs/small box, 240pcs/ctn
Payment term: T/T, Western Union, Paypal
Shippment: By express, by sea, by air

Prod Model:	YT-RJ45-JSX-25-001
Certification:	UL, Ce, CCC, RoHS, ISO9001
Type:	RJ45
Used In:	LED Display or LED Screen
MOQ:	100sets
Gender:	Female
Application:	UHF

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
