| Prod Model: |
132kw 110kw |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Magnetic Structure: |
Permanent Magnet |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Operation Mode: |
Inverter Control |
| Number Of Poles: |
20-Pole |
| Ventilation: |
Fan-Cooling |
| Certification: |
TUV |
| Brand: |
Enn |
Product Description

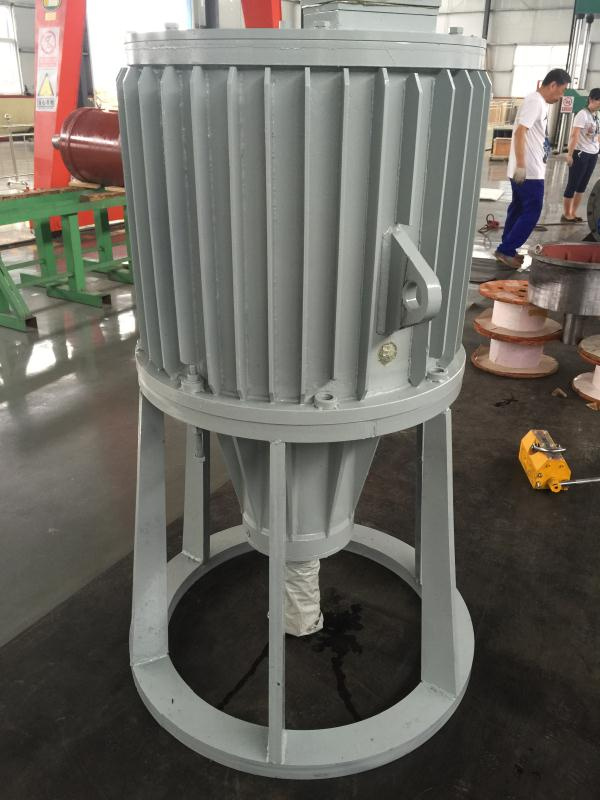

Enneng low-speed permanent magnet motor is based on mature technology of asynchronous motor and synchronous motor design technology, with the biggest difference is that they use the more advanced rotor structure, with high efficiency permanent magnet material to replace the squirrel cage rotor, organic combination of the traditional squirrel-cage induction motor and synchronous motor's main advantages. Thanks to the development of motor drive technology and the use of efficient permanent magnet materials, the transmission between the motor and the load becomes possible to completely disappear.
The excitation of permanent magnet motors is providing by permanent magnetic material inside the rotor installed in the motor, Absorbing the excitation current from the grid is very little. So comparison between this kind of permanent magnet motor and the same speed asynchronous motor, the power factor is high, and the necessary of the frequency conversion control system and power supply capacity become less. Comparison with the same speed synchronous motor, reduce the slip
ring of the rotor excitation and the regulator, but also no excitation loss.
Enneng low-speed permanent magnet motor is designed used in the design of advanced finite element analysis method, coupling analysis was carried out on the magnetic properties and load, optimizing the electromagnetic design and parameter. By analyzing the wind and temperature field, it can optimize the heat dissipation performance and reduce wind friction loss; Through the stress field analysis, it can optimize the mechanical structure, improving the safety and reliability of the motor under extreme conditions. So we can obtain the fully optimized permanent magnet motor series from torque, efficiency, power factor, the structural strength, temperature and so on. And through the system simulation technology, the permanent magnet motor and controller become the best combination matching.
Motor type | TYCK-110-32/74(380) | TYCK-132-32/74(380) | TYCK-132-32/84(380) | TYCK-160-32/84(380) |
Power | 110 | 132 | 132 | 160 |
Rated speed | 74 | 74 | 84 | 84 |
Maximum speed | 82 | 82 | 92 | 92 |
Voltage | 380 | 380 | 380 | 380 |
Torque | 12811 | 15373 | 13702 | 16609 |
Frequency | 0~21.87 | 0~21.87 | 0~24.53 | 0~24.53 |
Current | 180 | 215 | 215 | 260 |
Efficiency | 96.5 | 96.6 | 96.6 | 96.7 |
Power factor | 0.96 | 0.96 | 0.96 | 0.96 |
ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.
QUALITY IS OUR CULTURE.
Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.
ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.
ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.
ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.
FOR ENERGY SAVING, USE ENNENG PM MOTOR.
