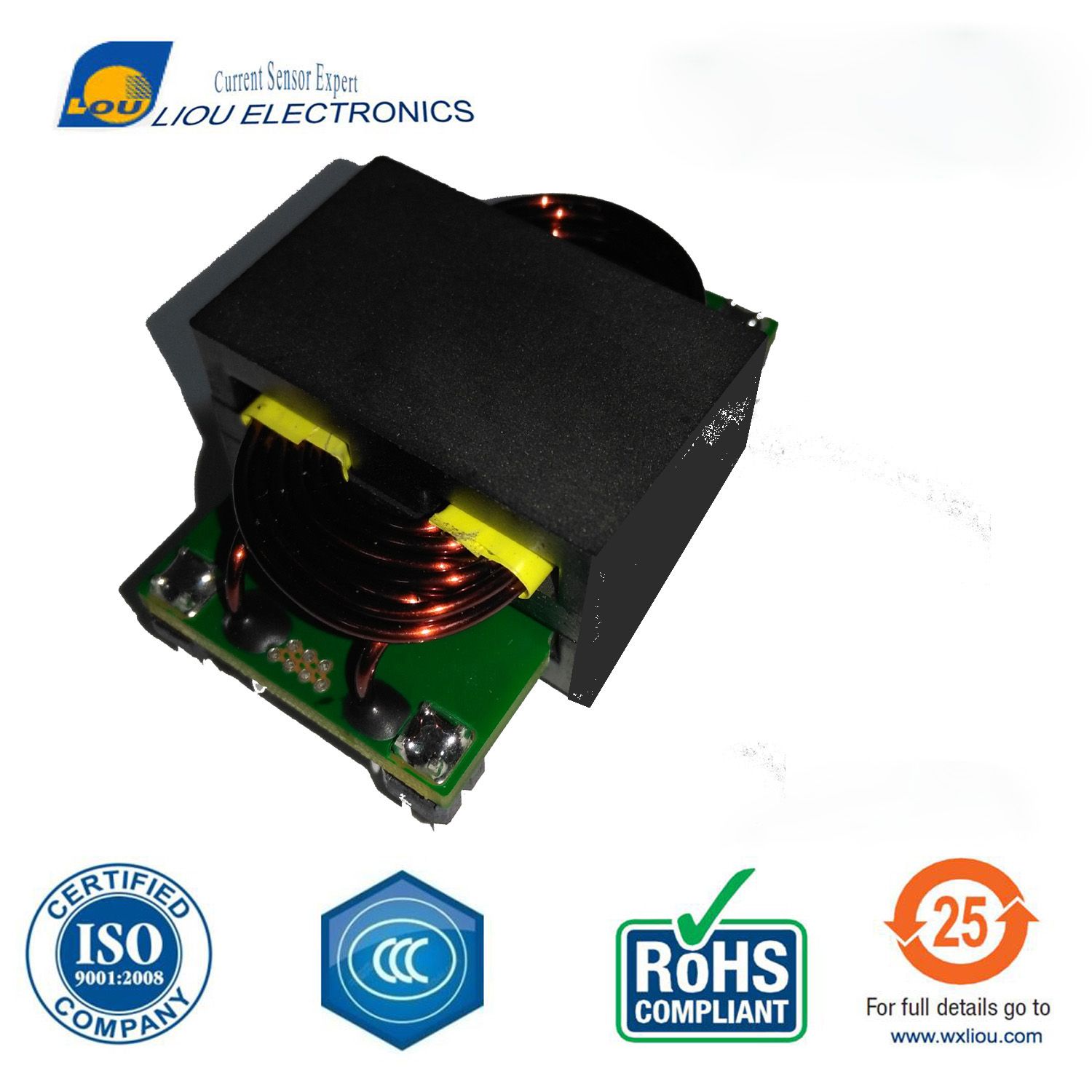

Planar Transformer 28.2V Lo-Plt8088-008
| Price: |
US $ 3.2-4.45/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |

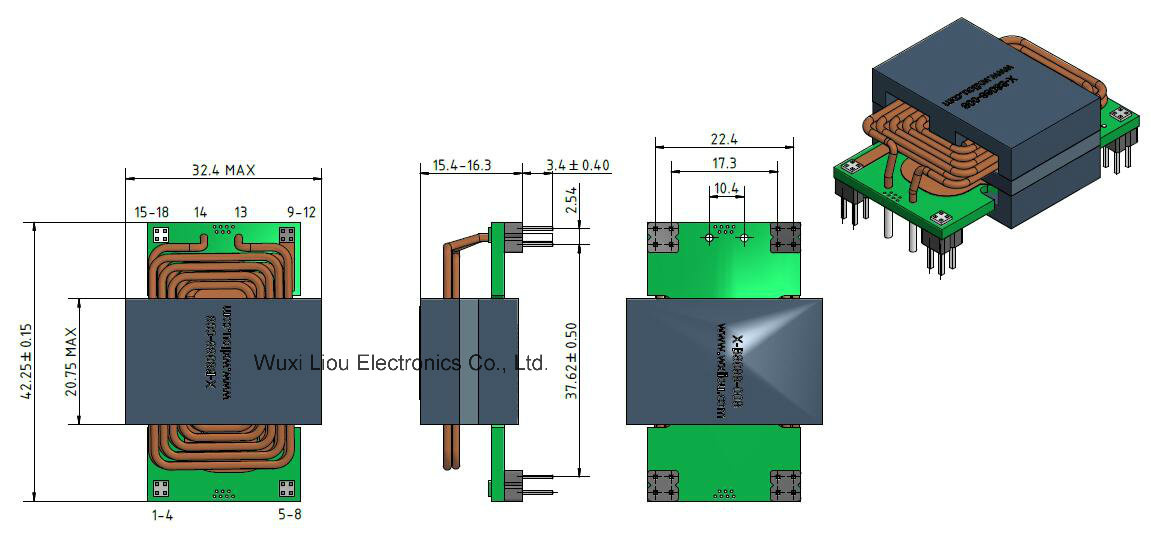

DESCRIPTIONLiOu magnetics offer the following unique benefits which enable us to provide innovative solutions for our customers specific applications, while incorporating the following advantages:• Unparalleled working frequency range (from 50kHz to 3MHz).• Dramatically reduced size and weight (approx. 5gr per 100W).• Unique high efficiency (typically 98-99%).• Unmatched parameters consistency.• Very low Leakage Inductance (less than 0.2% for un-gapped cores).• Cost effective and competitive prices.• Minimum Electromagnetic Interference (EMI).• Wide operating temperature range (typical -40°C to+130°C/150°C).• High specific power density (5W-25kW per one component).• Very high Primary-to-Secondary dielectric isolation (up to 4kV).• High Creepage and Clearance distances between primary andsecondary windings (6-16mm).• Applicable to all SMPS topologies.• Various mounting and terminals options (Horizontal, Vertical,Through-holes, SMT, Pins, Flying-cables and more).• Specially designed heat-dissipating Clasps.MECHANICAL SPECIFICATIONS
ELECTRIC SPECIFICATION| NO. | ITEM | TERMINAL | SPEC | REMARKS |
| 1 | INDUCTANCE | 1,2,3,4-5,6,7,8 | 74.4uH-147.63uH | Chroma 3252
AT 10KHz / 0.01V |
| 13-14 | 28.35uH-34.65uH |
LEAKAGE
INDUCTANCE | 1,2,3,4-5,6,7,8
(SHORT OTHER PINS) | 100nHMAX | Chroma 3252
AT 100KHz / 0.01V |
| 2 | HI-POT TEST | PIN1-PIN9 | DC707V,2s,5mA | CS2672 or EQU |
| PIN1-CORE |
| 3 | DCR | 1,2,3,4-5,6,7,8 | 8mΩTyp | YY2511 or EQU |
| 9,10,11,12-15,16,17,18 | 18mΩTyp |
| 13-14 | 15mΩTyp |

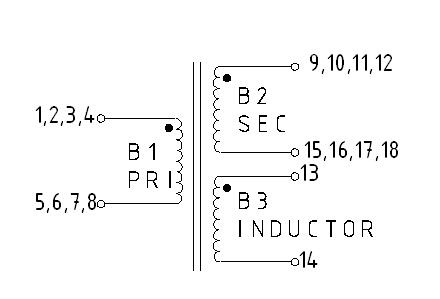

SCHEMATICAL DIAGRAM
| Prod Model: |
LO-PLT8088-008 |
| Topology: |
Forward |
| Application: |
Instrument |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Coil: |
Ferrite Core |
