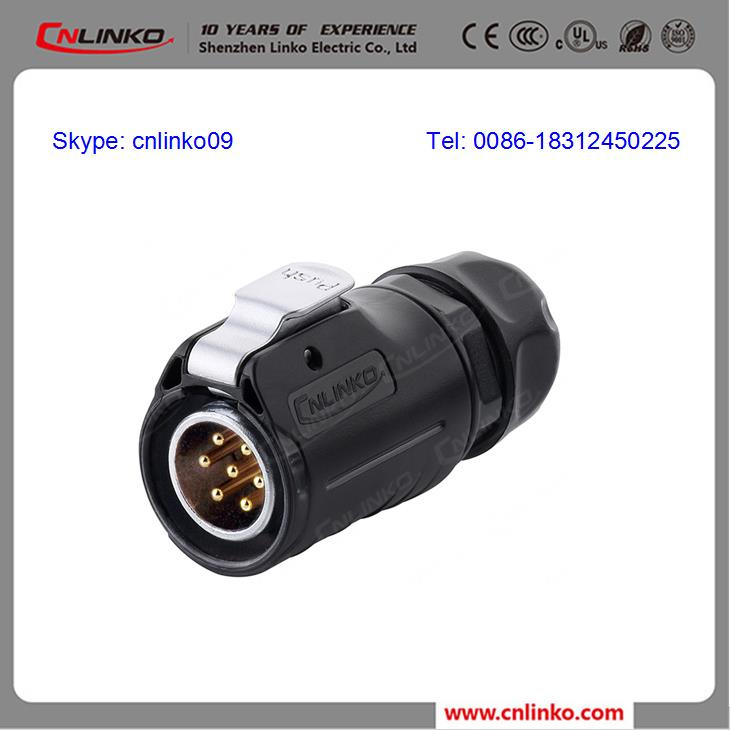

Plastic Waterproof Cable 7pin Power Connector DC Plug Connector

Prod Model:	LP-20-C07PE-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ:	100sets
Cable Specification:	1.0mm-1.5mm2/18-16AWG
Connector Type:	Easy Operation
Certification:	UL, CE, RoHS, CCC, ISO9001
Rated Current:	12A

Product Description

Plastic waterproof cable 7pin power connector DC plug connector



LP-20-C07PE-01-001
Specifications:
Connecting mode:	Latching Lock connect
Protection level:	IP67
Cable specification:	1.0mm2 ~ 1.5mm2 /18~16AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.0×7
Current rating(A):	12A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	500V
Contact resistance:	<2.5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery


Packaging & Shipping

1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne
Our Service
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available
5. supply the best service to you with the contact details below:

TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312450225


FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:

(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?


Shape	Frequency	Function
circular	high-frequency	for printed board; cabinets;
rectangular	low frequency	socket connectors; for audio equipment, power, signal, etc.


Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
