| Prod Model: |
YM-20-C03PE-01-001, YM-20-J03SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Specification: |
12-14AWG |
| Diameter Range: |
8mm-12mm |
| Contact Diameter*Number: |
2.7*3 |
| Operating Voltage: |
500V |
| Protection Level: |
IP65/IP67 |
| Durability: |
More Than 500 Times |
| Connecting Mode: |
1/4 Bayonet Connect |
| Assembly Wire: |
Solder |
| Copper Needles: |
Copper Alloy(Gold-Plated 4u) |
| Flammability Rating: |
UL94-V0 |
Product Description

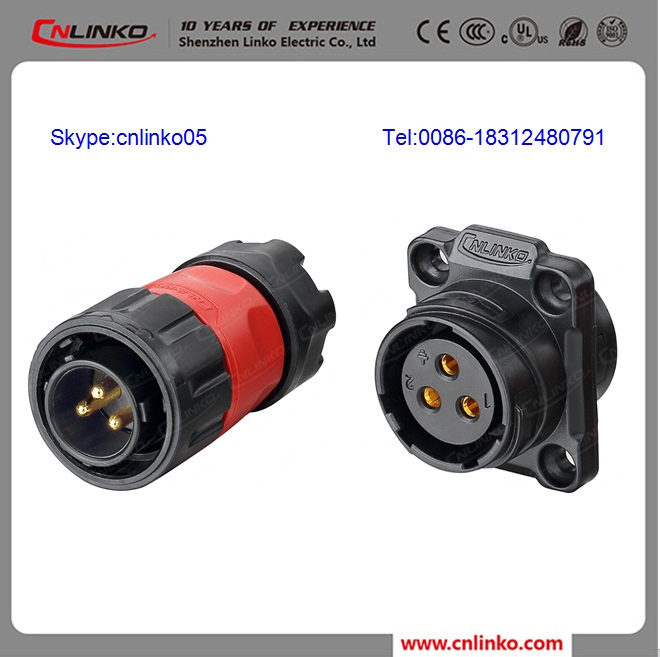

power cable connector waterproof IP67 3 pin
1.multi-pins(2-12 PINGS) for varies industrial demands
2.PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
3.gold-plated contact, high performance of corrosion resistance and electrical
conductivity effectively deal with temperature rise.
4.1/4 mount connector, easy operation and installation
5.dustproof cover design under off-working condition
6.rated current is 12A rms
7.protection level:IP65/67
Application:
1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
Specifications:
Connecting mode | 1/4 Bayonet |
| Protection level | IP65/67 |
| Cable specification | 2.5.mm ² ~ 4mm ² /12~8AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter ×Qty | Φ2.7X2 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Temperature rise | 20A per contact at 30°C, 25A per contact at 40°C,
30A per contact at 50°C |
| Color | Black |
| Protective housing | PBT Material |
| Install method | 1/4 bayonet connect |
| Material |
|
| Shell&Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Assembly wire | Solder |
| Copper needles | Copper alloy(gold-plated) |
| Waterproof | Silica gel
|
Packaging & Shipping
Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.
Our Services
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:
WWW.CNLINKO.COM
Cellphone: 0086-18312490791
Telephone:0086-0755-86960323
