| Prod Model: |
Green star series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
40Hz ~ 70 Hz |
| Input Voltage Range: |
55-145 VAC or 110-300 VAC |
| Transfer Time: |
Zero |
| Current Crest Ratio: |
3:1 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
Product Description

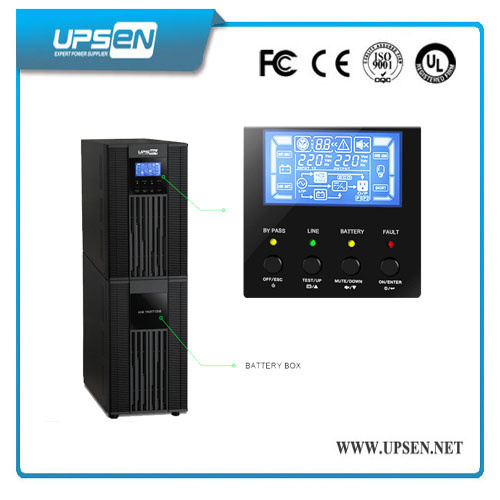

Pure Sine Wave UPS with Generator compatible and CE Certificate
1: Online UPS with both Standard UPS Model and Long Run UPS Model for choose
2: 1000VA 2000VA UPS with smart and compact design
3: UPS with LCD & LED Display
4: DC to AC UPS with Input power factor correction
Application
Servers, PCs, Computers,data-center critical network devices,Fax etc. Also can be applied for Sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
UPS Key Features
True double-conversion
Output power factor 0.8
Wide input voltage (110 V - 300 V)
Converter mode available
ECO mode for energy saving
Charger capacity expansion to 6A for long-run models
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status
Generator compatible
Microprocessor control optimizes reliability
Input power factor correction
Technical Specification
GREEN STAR ONLINE UPS SELECTION GUIDE |
| MODEL | G1K (L) | G2K (L) | G3K (L) |
| PHASE | Single phase with ground |
| CAPACITY | 1150 VA / 800 W | 2300 VA / 1600 W | 3500 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range |
| 40Hz ~ 70 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load); <= 6 % THD (Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 93% | 93% | 93% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH | 12 V / 7AH | 12 V / 7 AH |
| Numbers | 2 | 6 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 27.4VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% |
| Long-run Model* | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| INDICATORS |
| LCD |
Load level, Battery level, AC mode,
Battery mode, Bypass mode, and Fault indicators |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard Model | Dimension, D x W x H (mm) | 397 X 145 X 220 | 419X190X318 |
| Net Weight (kgs) | 13 | 26 | 28 |
| Long-run Model* | Dimension, D x W x H (mm) | 282 x 145 x 220 | 397 X 145 X 220 |
| Net Weight (kgs) | 4.6 | 6.8 | 7.4 |
| ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
