R4 Hall Effect Sensor

Name: R4 Hall Effect Sensor
Brand: all-electronics-online.com
SKU: 793533045
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	R4
Color:	Blue

Product Description

Hall effect Current Transducer

* Non-contact DC or AC current sensing
* High isolation between input and output
* Unipolar/Bipolar Measurement
* Extended measuring range
* No insertion losses
* Easy wiring
* Light weight

Input	output	linearity	power	type	weight	accuracy
100-1000A	20mA/0-5V	1%	+/-15V, +24V	Solid core	390g	1%

* Standards : Q/BHD01-2012BH
* Input Range : 0-100…1000A
* Accuracy Grade : 1.0%
* Linearity : 1%
* Response Time : 10uS
* Frequency Bandwidth : DC~500Hz
* Offset Voltage : 20mV
* Thermal Drift : 500 ppm/ºC
* Power Consumption (doboule power and voltage output) : 20mA
* Insulation Voltage : 3000 Vdc
* Overload Capacity : 20 times
* Flame Retardancy : UL94-V0
* Hystereis Error : ±10mV
* Operating Temperature : -10°C ~ +80°C
* Storage Temperature : -25ºC~85ºC
* Unit Weight : 390g

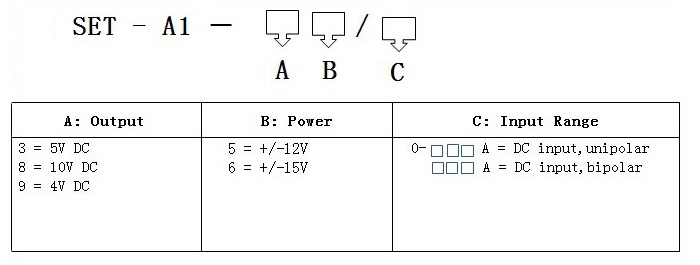

Example
hall effect 0-300A
Input : 0-300A, DC, Unipolar
Output :0-4V DC
Power : +/-12V
Type A1
