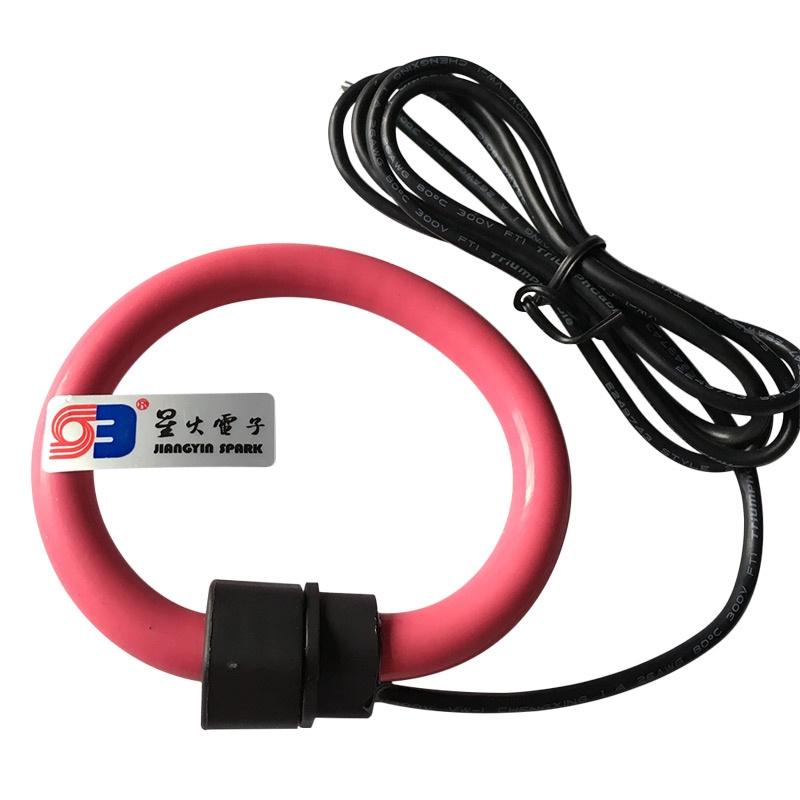

RC-1000 1000A 333mv Flexible Rogowski Coil Rocoil Recoil

Name: RC-1000 1000A 333mv Flexible Rogowski Coil Rocoil Recoil
Brand: all-electronics-online.com
SKU: 837789795
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 1-90/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications Of RC-1000 1000A 333mV Flexible Rogowski Coil Rocoil Recoil

Rated current (rms)	10A-100KA
Output	0-5V/0.333V/0-10V/0-1A/4-20mA AC(with integrator)
Power supply	9V,12V,15V,24V,30V
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3500V
Operating temperature	-25ºC-+70ºC
Frequency	1Hz-1MHz
Accuracy	±1%

Details Of RC-1000 1000A 333mV Flexible Rogowski Coil Rocoil Recoil
Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Current Range: 100A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20ºC to +60ºC
Leads: Shielded cable, or as per customer need

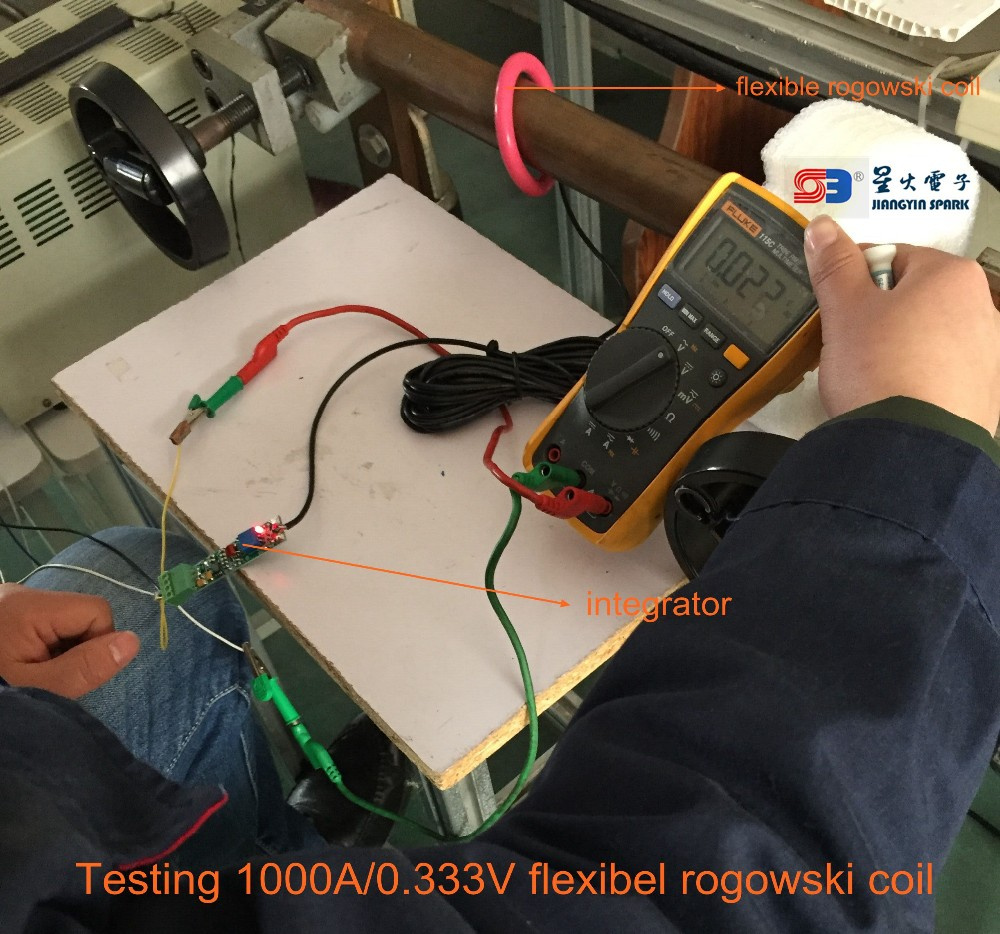

Production Picture Of RC-1000 1000A 333mV Flexible Rogowski Coil Rocoil Recoil

Product Description

CE Certificates of RC-1000 1000A 333mV Flexible Rogowski Coil Rocoil Recoil

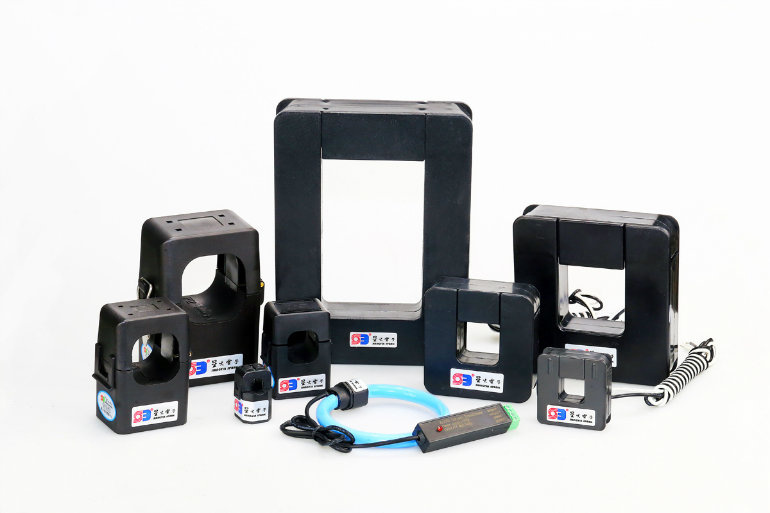

RC-3000 Rogowski Coil

Prod Model:	XH-RST
Current Transformer:	Flexible Rogowski Coil Current Transformer
Current Sensor:	Flexible Rogowski Coil Current Sensor
Current Transducer:	Flexible Rogowski Coil Current Transducer
Usage:	Consumption Sensor
Output:	0-0.333V AC or 0-5V AC
Accuracy:	1.0
Frequency:	50/60Hz
Size:	Small
Color:	Black
Insulation Strength:	3kv
Application:	Power, Electronic, Instrument, Electronic
