S Shape 1t Load Cells in Stock/Press Load Sensor/Hang Weight Sensor

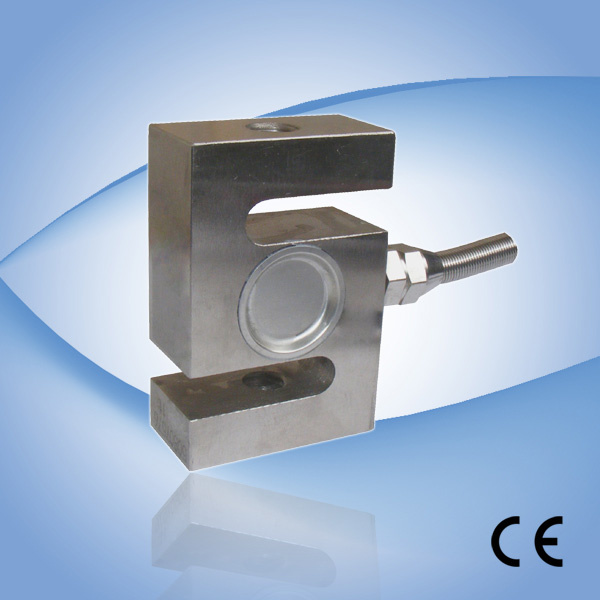

QH-31 Tension and Compression S Type Load Cell for Hook Scale oad cells are available in the capacities from 20kg to 5000kg.
Alloy steel material with S beam style.
Silicon adhesive sealed inside. It is waterproof and anti-corrosion. So be suitable for all kinds of environment.
Tension and/or compression load.
Be suitable for electronic crane scale, hopper scale, mechanical conversion scale and other electronic
weighing devices.
Features:
Capacity :20 kg to 5000 kg
Defend grade: IP66 & IP68
High accuracy. Reliable performance.
Alloy steel or stainless steel.
Integral installation. Low profile.
Electrical connection and Dimensions:
Technical Specifications
| Specifications: |
| capacity | Kg | 20,50,100,200,500,750,1000,2000,5000 |
| safe overload | %FS | 150 |
| ultimate overload | %FS | 200 |
| rated output | mV/V | 2.0 ± 0.004 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.03 | ± 0.02 |
| zero unbalance | %FS | ± 1.0 |
| non-linearity | %FS | ± 0.03 | ± 0.02 |
| hysteresis | %FS | ± 0.03 | ± 0.02 |
| repeatability | %FS | ± 0.02 | ± 0.02 |
| creep | %FS/30min | ± 0.03 | ± 0.02 |
| input resistance | Ω | 390± 20 | 580± 20 |
| output resistance | Ω | 351± 4 | 501± 4 |
| insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 | ±0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 | ±0.02 |
Electrical connection:
Excitation+ green Excitation- yellow Signal+ white Signal- red
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter :5 mm
The cable length could be chose by customer's application.
