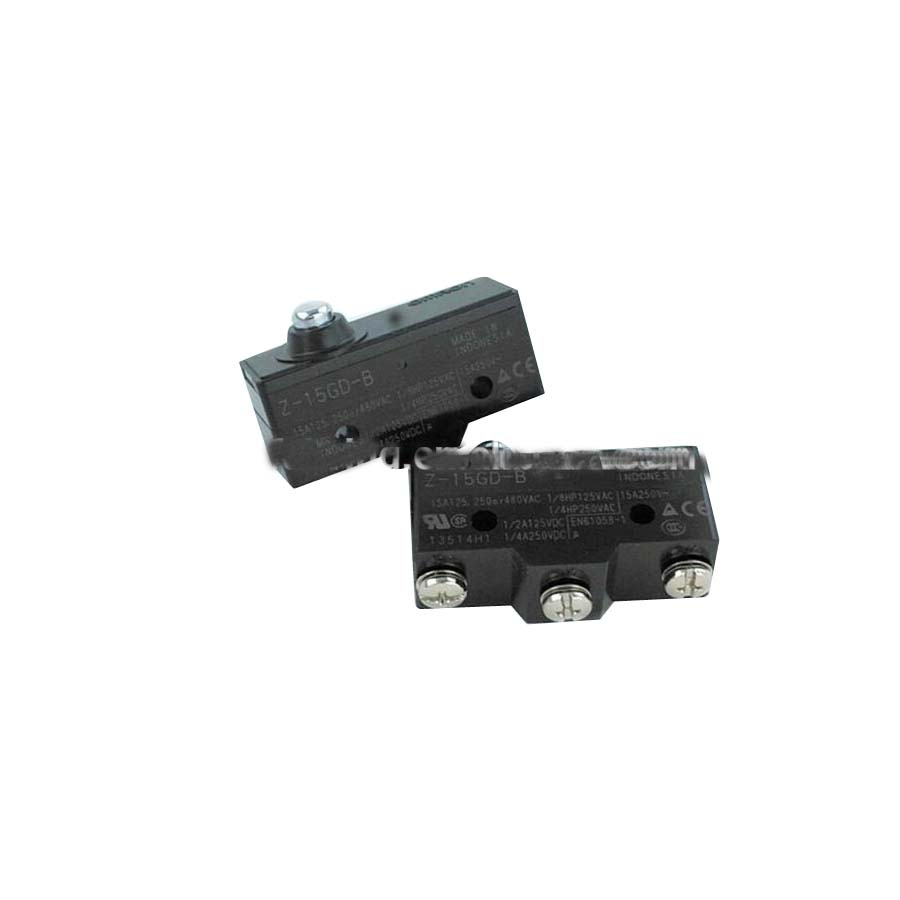

Short Reed Pluger Type Electronic Push Button Micro Switch Z-15gd-B

Name: Short Reed Pluger Type Electronic Push Button Micro Switch Z-15gd-B
Brand: all-electronics-online.com
SKU: 728988072
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 1.6-2.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Adopt thermostable phenolic plastic crust;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance, electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro tool etc.

Product Display

Rated Voltage(V)	Noninductive load(A)		Lnductive load (A)		Lnrush Current
	Resistive load	Inductive		Motor Load
	NC NO NC NO NC NO NC NO
125VAC	15	15	5		2.5	30(MAX) 15(MAX)
250VAC	15	15	3		1.5
500VAC	3	2.5	1.5		0.75
8VDC	15	15	5		5
14VDC	15	1	5		5
30VDC	6(2)	5	5		5
125VDC	0.4	0.05	0.05		0.05
250VDC	0.2	0.03	0.03		0.03

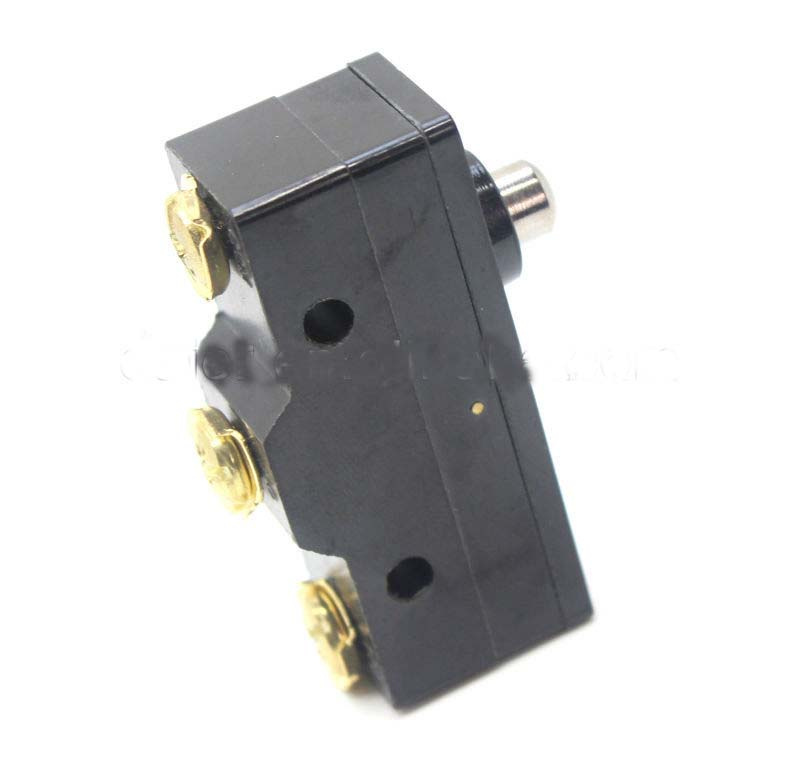

Product pictuer

Specification

Item		Data
Operating speed		0.1mm-50cm/s
Operating frequency	Mechanical	20times/min
Operating frequency	Electrical	20times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		20MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC(keep on working 1min)
Withstand voltage	Every terminal	2000VAC(keep on working 1min)
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
Impact	Misoperation	300m/s²
Life	Electrical	200,000above
Life	Mechanical	2,000,000above
Pertection degree		IP40
Operating temperature		-25'C~80'C
Operating humidity		≤85%RH

F Max	250-350g(2.45-3.43N)
RF Min	114g(1.12N)
PT Max	0.5mm
OT Min	1.6mm
MD Max	0.1mm
OP	21.5±0.5mm

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

Prod Model:	Z-15GD-B
Pressing Type:	Lever Roller
Number Of Switch:	Single Control Switch
Protection:	Waterproof
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma
