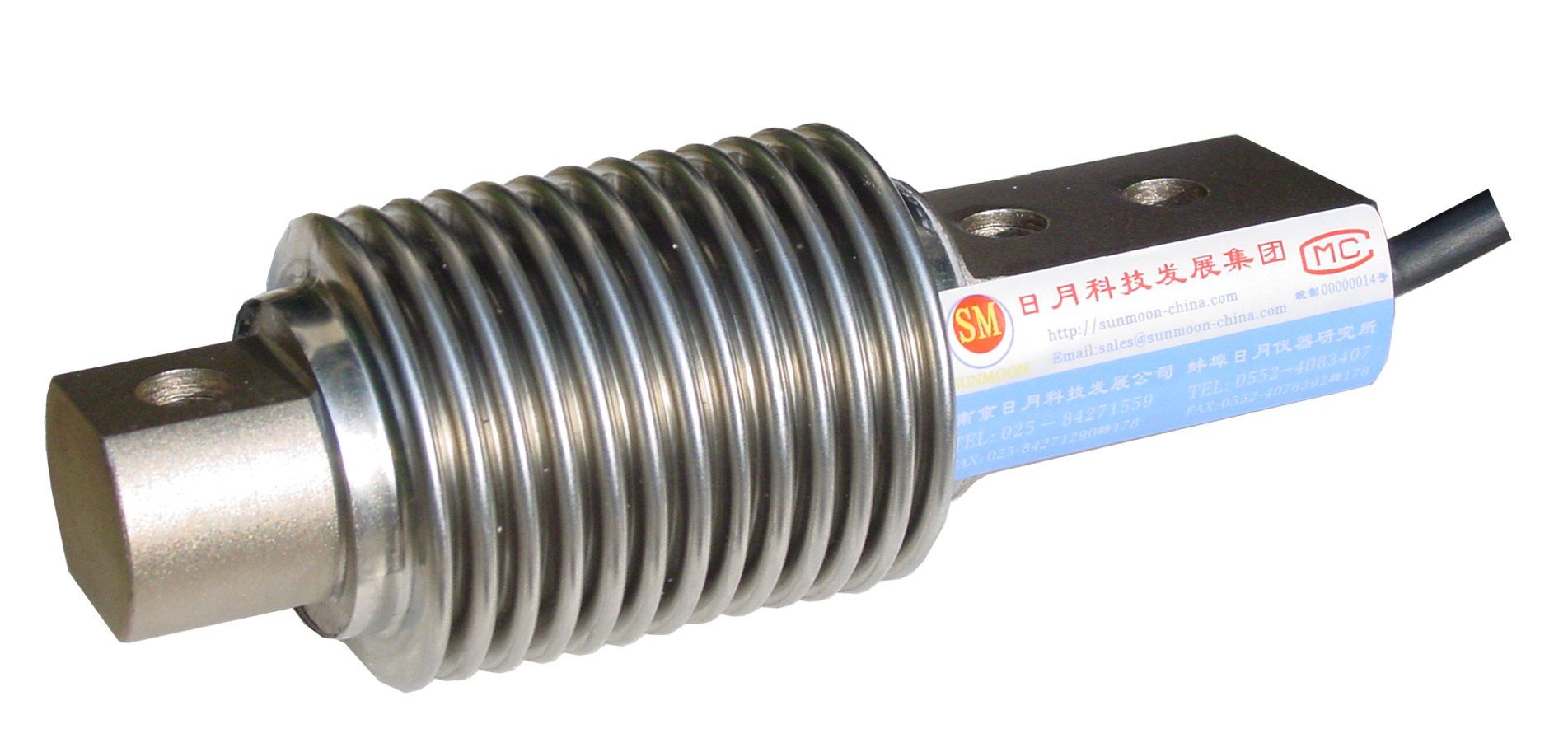

Sm20 Cantilever Type Load Cell - Double Shear Beam

Name: Sm20 Cantilever Type Load Cell - Double Shear Beam
Brand: all-electronics-online.com
SKU: 839978975
Availability: InStock
Rating: 4.5 (105 reviews)

Price:	US $ 25-40/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Customization:

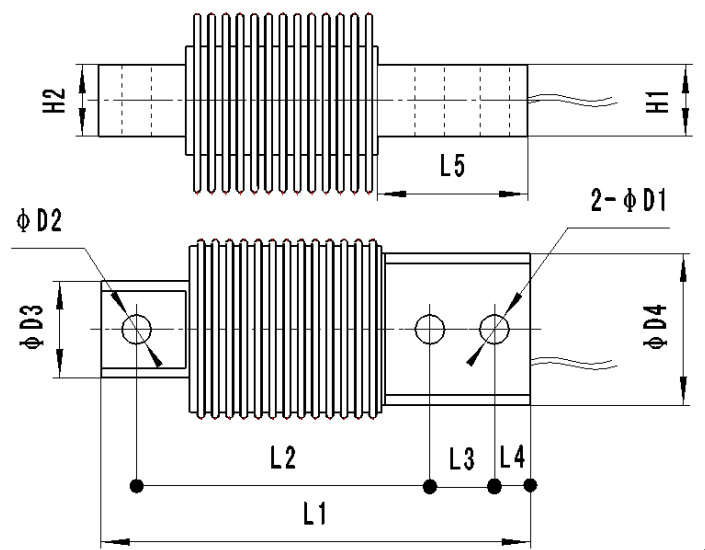

CAP./SIZE	L1	L2	L3	L4	L5	ΦD1	ΦD2	ΦD3	ΦD4	H1	H2
kg/mm
10,20,30,50,100,200	126	82	18	16	44	8.2	8.2	25.5	32	20	20
250,300,500	200	120	45	15	80	14	13	30	52	40	25
Ib/inches(conversion of above dimensions )
44.09,66.14,110.23,220.46	49.61	32.28	7.09	6.30	17.32	3.23	3.23	10.04	12.60	7.87	7.87
551.16,661.39,1102.31	78.74	47.24	17.72	5.91	31.50	5.51	5.12	11.81	20.47	15.75	9.84

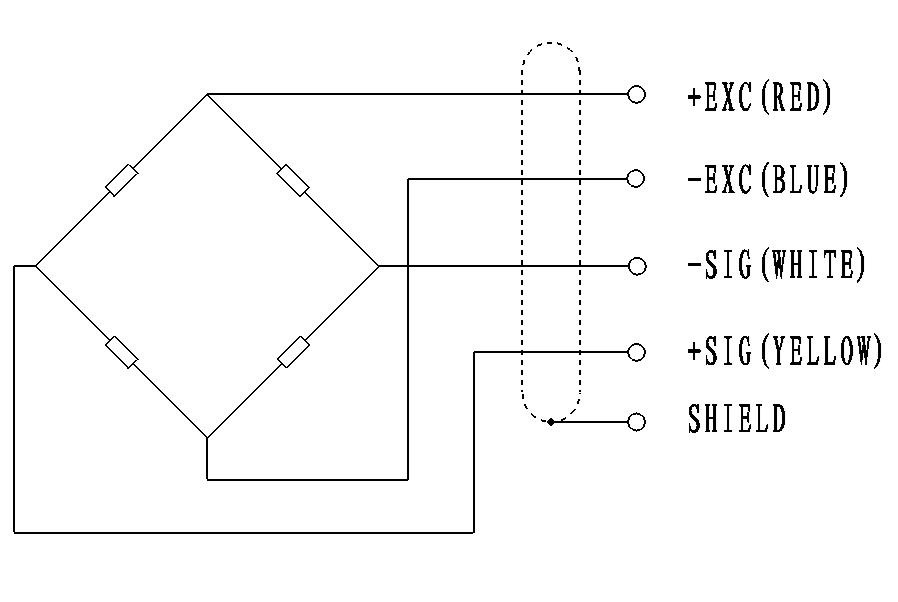

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	10~500	kg
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.015	±% of rated output
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	0.1	±% of rated output
Input resistance(Rlc):	387±20	Ω(ohms)
Output resistance(Ro):	350±5	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-20~+65	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67/IP68

Prod Model:	SM20
Rated Load:	10kg - 500kg
Execution Standard:	GB/T 7551-2008 Certificate
