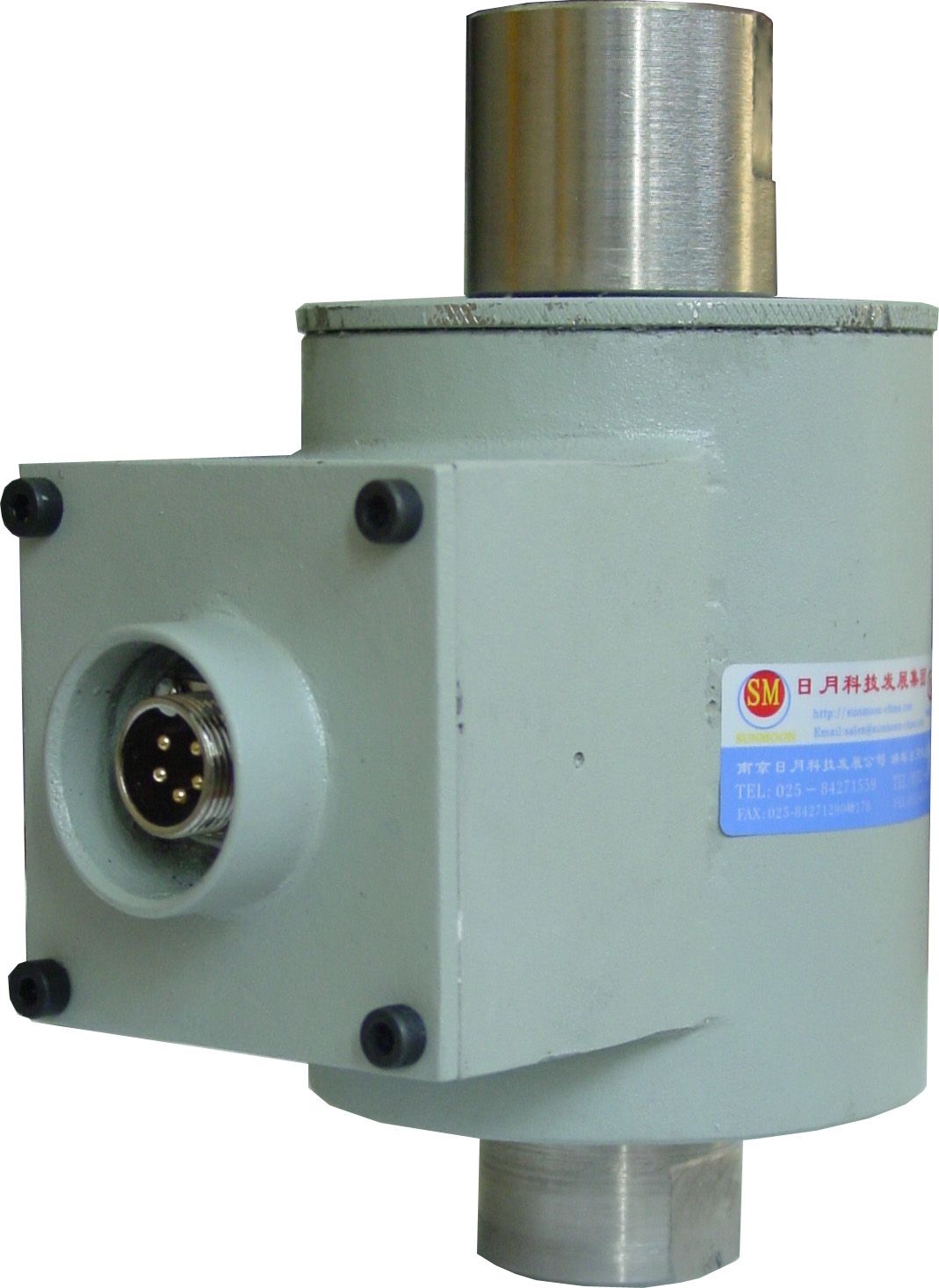

Sm9-B Pull Pressure Sensor

Name: Sm9-B Pull Pressure Sensor
Brand: all-electronics-online.com
SKU: 839918065
Availability: InStock
Rating: 5 (48 reviews)

Price:	US $ 38-53/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Customization:

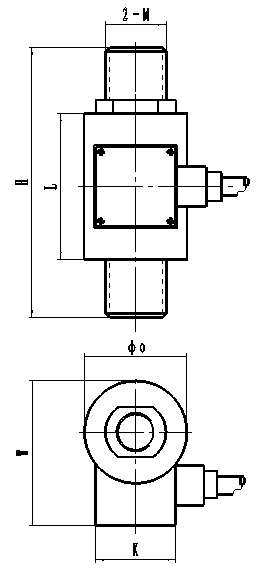

CAP./SIZE (t/mm)	H	L	Q	W	K	M
0.001~0.1	80	58	68	68	52	M10
0.15~1	120	60	60	82	54	M16×1.5
2,3,5	134	78	68	90	54	M24×1.5
10,20,30	180	95	78	100	56	M36×4
50,70,100	230	132	117	140	56	M48×5
Ib/inches(conversion of above dimensions )
2.20~220.46	31.50	22.83	26.77	26.77	20.47	M10
330.69~2204.62	47.24	23.62	23.62	32.28	21.26	M16×1.5
4409.25,6613.87,11023.11	52.76	30.71	26.77	35.43	21.26	M24×1.5
22046.23,44092.45,66138.68	70.87	37.40	30.71	39.37	22.05	M36×4
110231.13,154323.58,220462.2	90.55	51.97	46.06	55.12	22.05	M48×5

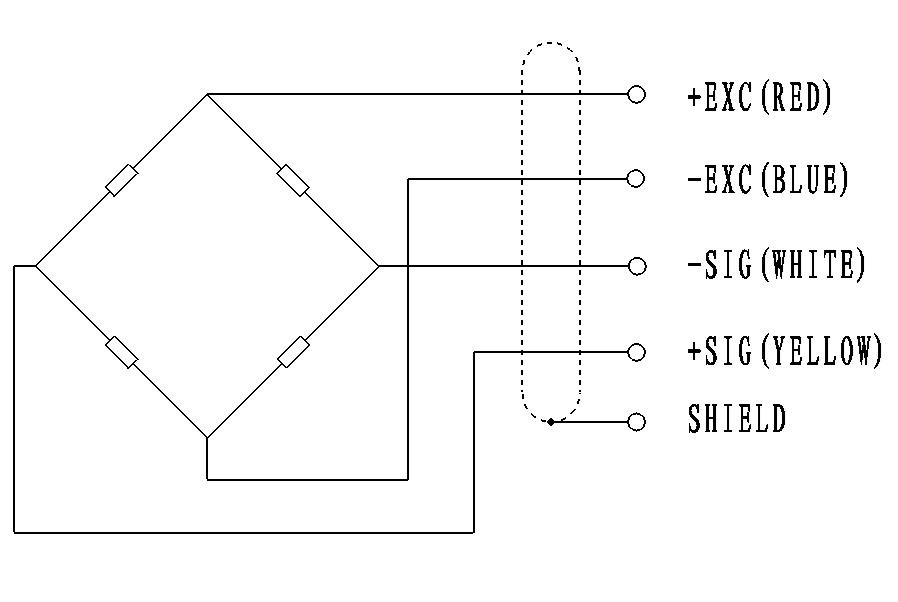

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	0.1~100	t
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	0.1	±% of rated output
Input resistance(Rlc):	700±5	Ω(ohms)
Output resistance(Ro):	700±2	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~24	V(DC or AC)
Maximum excitation :	36	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67

Prod Model:	SM9-B
Rated Load:	0.1t - 100t
Execution Standard:	GB/T 7551-2008 Certificate
