Sm4 Column Compression Load Cell

Name: Sm4 Column Compression Load Cell
Brand: all-electronics-online.com
SKU: 839842675
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 30-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Customized :

CAP/SIZE(/)

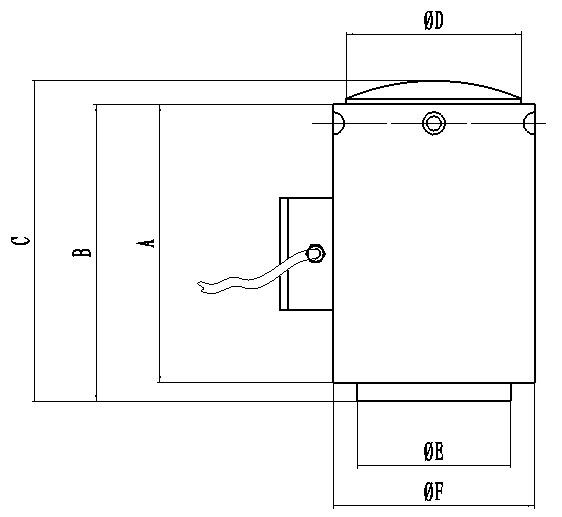

t/mm	A	B	C	ФD	ФE	ФF
30	105	110	120	50	64	75
50	105	114	125	54	68	87
100	175	185	200	109	96	126
250∽350	245	260	280	150	175	205
500∽700	310	324	350	175	199	260
1000	455	470	493	160	280	340
Ib/inches(conversion of above dimension)
66138.68	41.34	43.31	47.24	19.69	25.2	29.53
110231.13	41.34	44.88	49.21	21.26	26.77	34.25
220462.26	68.9	72.83	78.74	42.91	37.8	49.61
551155.65∽771617.91	96.46	102.36	110.24	59.06	68.9	80.71
1102311.30∽1653466.95	122.05	127.56	137.8	68.9	78.35	102.36
2204622.6	179.13	185.04	194.09	62.99	110.24	133.86

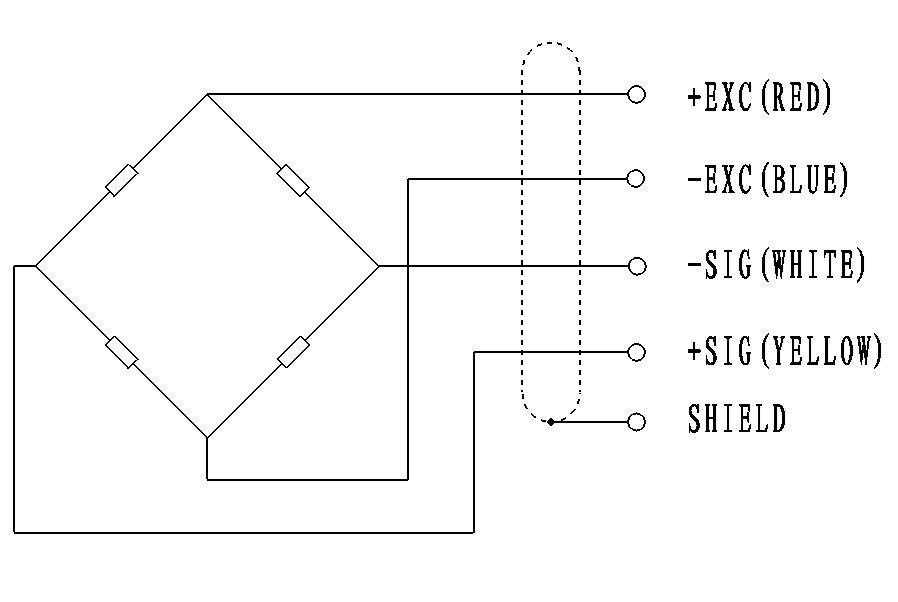

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	10~1000	t
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.05	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	0.1	±% of rated output
Input resistance(Rlc):	760±20	Ω(ohms)
Output resistance(Ro):	700±5	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+85	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67/IP68

Prod Model:	SM4 Column Type
Rated Load:	10t - 1000t
