Sm6 S Type Pull Pressure Sensor

Name: Sm6 S Type Pull Pressure Sensor
Brand: all-electronics-online.com
SKU: 839889465
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 30-45/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

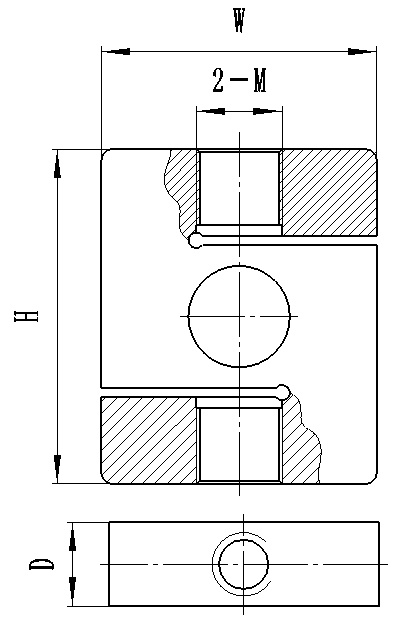

Customized:

CAP/SIZE	H	W	D	M
kg/mm
0.5-3	50	80	8	M6
5-50	50	60	12	M8
100-500	76	76	24	M16
1000-1500	76	60	27	M16
2000-3000	96	76	27	M20
5000-7000	105	93	55	M24
10000-150000	152	125	60	M36*3
20000-30000	160	152	65	M36*3
Ib/inches(conversion of above dimension)
1.10-6.61	19.69	31.5	3.15	M6
11.02-110.23	19.69	23.62	4.72	M8
220.46-1102.31	29.92	29.92	9.45	M16
2204.62-3306.93	29.92	23.62	10.63	M16
4409.25-6613.87	37.8	29.92	10.63	M20
11023.11-15432.36	41.34	36.61	21.65	M24
22046.23-33069.34	59.84	49.21	23.62	M36*3
44092.45-66138.68	62.99	59.84	25.59	M36*3

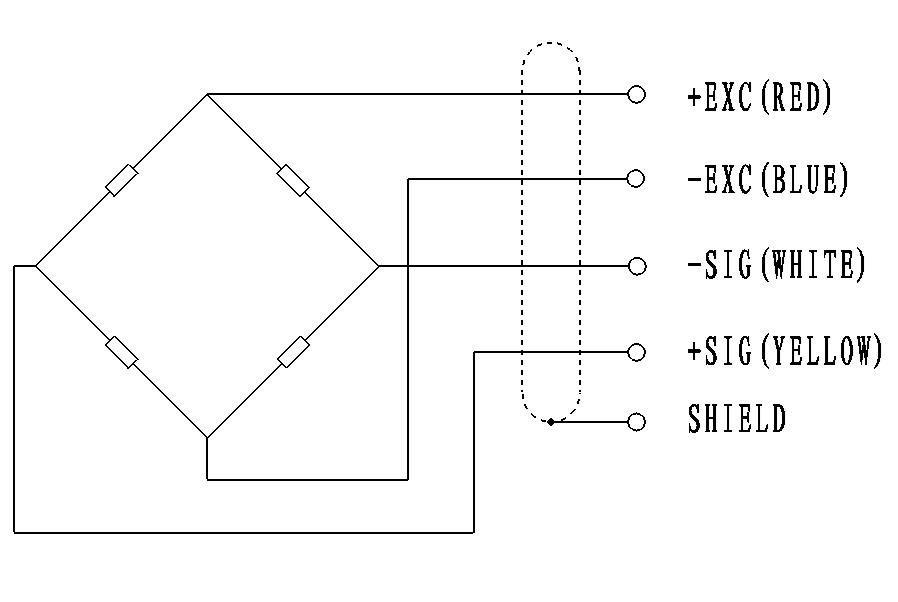

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	0.5~30000	Kg
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	380±5	Ω(ohms)
Output resistance(Ro):	350±2	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67

Prod Model:	SM6
Rated Load:	0.5kg - 30,000kg
Execution Standard:	GB/T 7551-2008 Certificate
